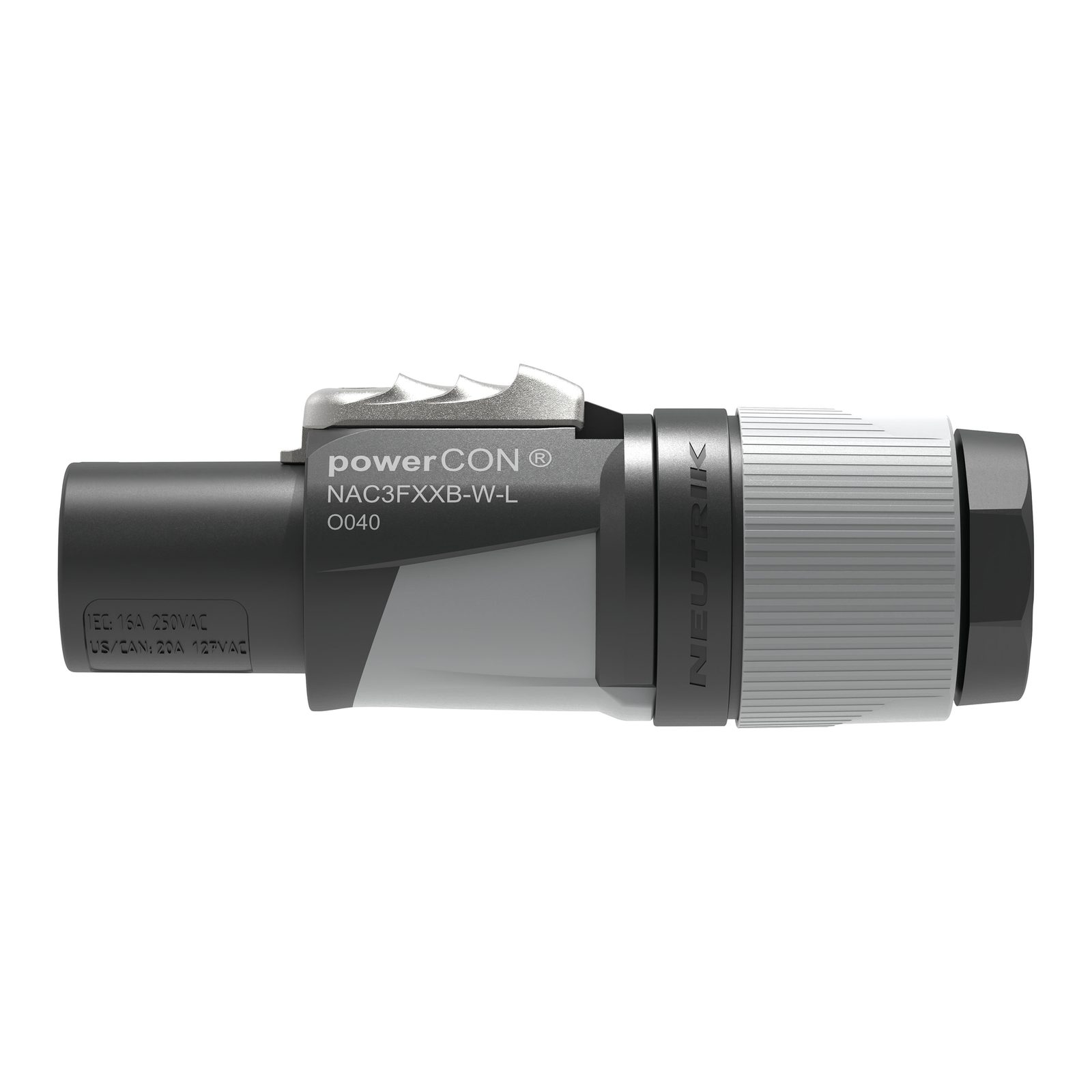

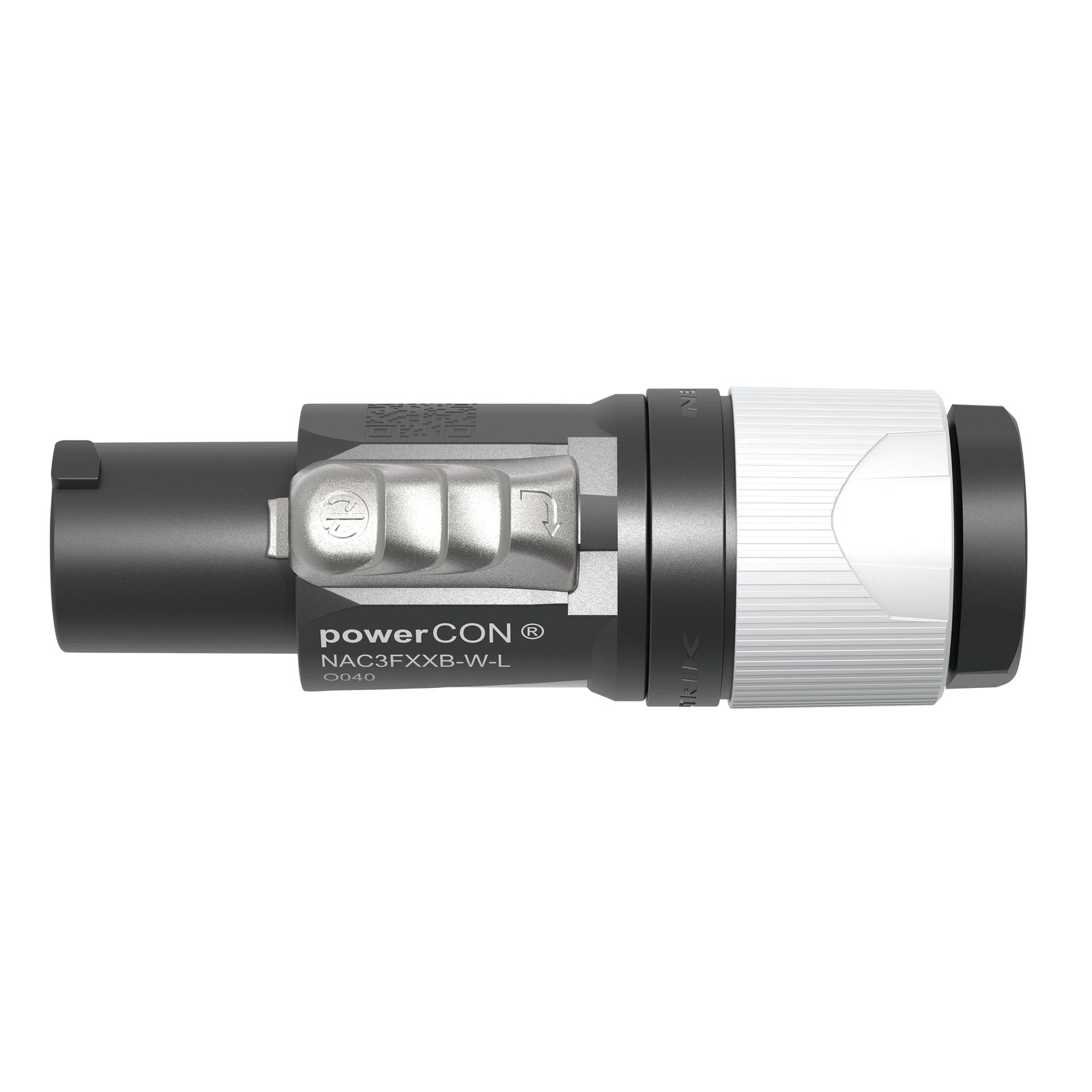

Connettore powerCON Femmina L per Uscite Nero/Bianco - Neutrik NAC3FXXBWL
Connettore powerCON Femmina L per Uscite Nero/Bianco - Neutrik NAC3FXXBWL
Connettore powerCON Femmina L per Uscite Nero/Bianco - Neutrik NAC3FXXBWL

Connettore powerCON Femmina L per Uscite Nero/Bianco - Neutrik NAC3FXXBWL

NEUTRIK
9,70 €
Tasse incluse
Grey/white housing - large-diameter cables
Condividi

The Neutrik powerCON Connector is a keyed, locking AC mains cable connector for single-phase power outputs. It has silver-plated contacts and is suitable for circuit-breaking when mated with Neutrik powerCON XX Series receptacles. It has screw terminals for assembling with signal wires between 1.5 and 2.5 mm² and an outer diameter between 10 and 16 mm. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed to guarantee a safe power connection.

  • Lockable single-phase connector
  • Fast and easy twist locking system
  • Extremely dependable and robust
  • For large outer diameter cables (10 - 16 mm)
Rated Current (A)16 A
Cable Entry10-16 mm
Pins3
Minimum Wire Size1.5 mm²
Maximum Wire Size2.5 mm²
Maximum Wire Size AWG12 AWG
Length (mm)82.5 mm
Height (mm)30.3 mm
Width (mm)26.5 mm
Diameter26.5 mm
Weight0.04 kg
IP RatingIP20 (indoor use only)
HousingABS
ColourBlack / White
Pin ConnectionScrew Terminal
Locking DeviceLatch
Contact TypeCopper
Maximum Ambient Temperature80 °C
Minimum Ambient Temperature-33 °C

  • Marca
  • Riferimento
    NAC3FXXBWL
  • In magazzino
    10 Articoli
  • ean13
    8717748557827
