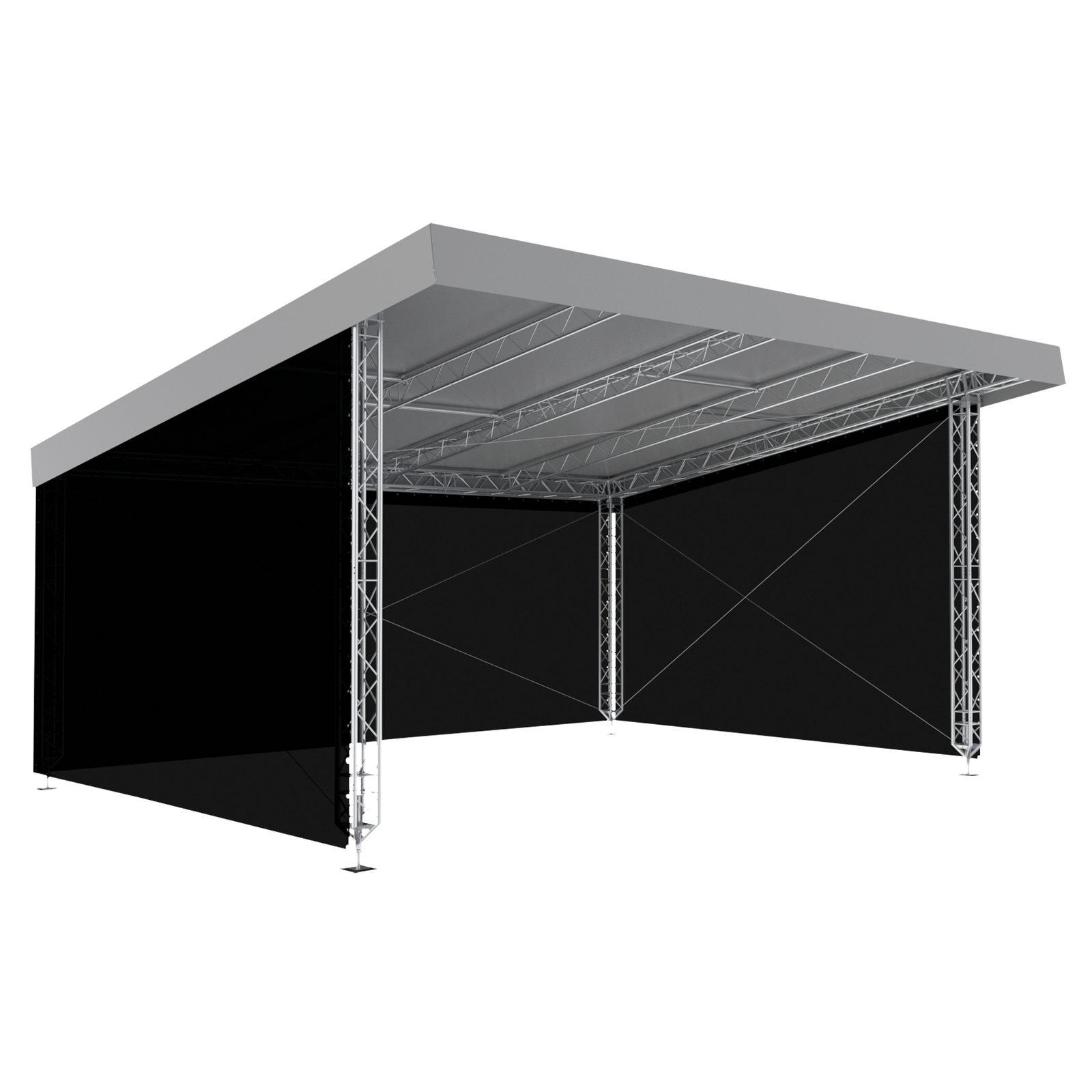

The MR0 Sloping Roof System with Canopy (8 x 6 m) is a professional truss roof system designed for medium‑sized outdoor events and temporary installations. The sloping roof design allows efficient water runoff and provides sufficient clearance for lighting, audio and rigging equipment. The roof structure is designed to support professional rigging loads, with a maximum total loading capacity of 2,000 kg, depending on configuration and load positioning.
The structure is built entirely from P truss, ensuring strength, stability and compatibility with standard truss components. The system is supplied with a silver‑grey polyester canopy as standard. This canopy is not fire‑retardant; however, a B1 fire‑retardant canopy is available on request and can be supplied in different colours. Side nets and back net are not included, but are available as separate accessories.
Combining truss brands must always be approved by a competent and suitably qualified third party. This party must write a risk assessment and carry out structural calculations. Use of non approved combinations is at the user’s sole risk.
- Constructed from P truss
- Maximum loading capacity 2,000 kg
- Silver‑grey polyester canopy supplied as standard
- B1 fire‑retardant canopy available on request
- Side nets and back net not included (available separately)
| Overall external width | 9.1 m |
|---|
| Width (m) | 8 m |
|---|
| Internal width | 8.5 m |
|---|
| Overall external depth | 6.5 m |
|---|
| Depth (m) | 6 m |
|---|
| Internal depth | 5.92 m |
|---|
| Overall height | 5.48 m |
|---|
| Size | 290 mm x 290 mm |
|---|
| Weight | 600 kg |
|---|
| Canopy colour | Silver grey |
|---|
| Truss System | P Ø 29,8 mm |
|---|
| Connectable to | Milos |
|---|
| Included Accessories | Connectors included for complete structure |
|---|
