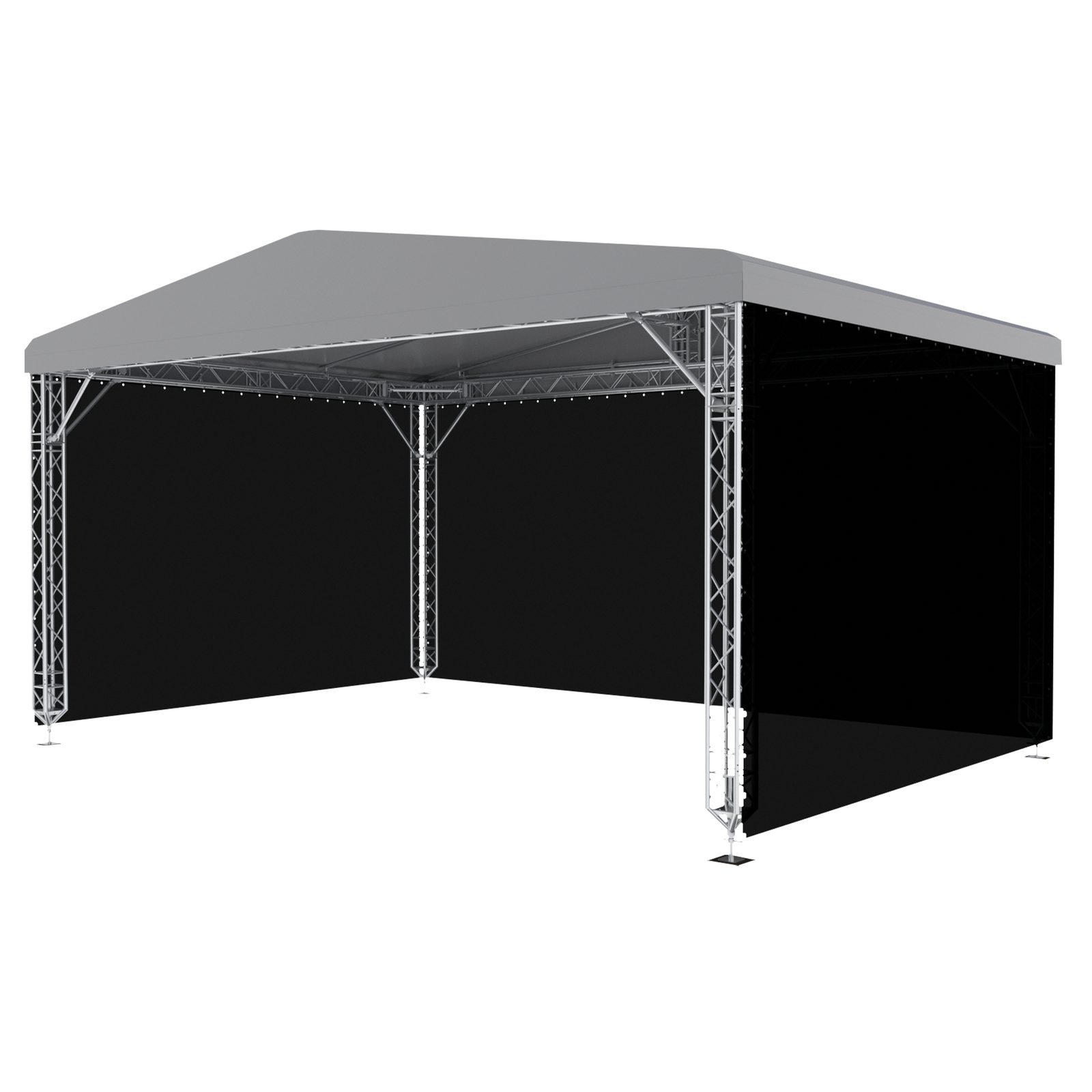

The MR0 NGW Roof System with Canopy (8 x 6 m) is a professional truss roof solution designed for outdoor events. The structure does not require guy wires and allows fast installation while reducing ballast requirements. The roof structure supports professional lighting and audio installations, with a maximum total loading capacity of 2,000 kg, depending on configuration and load positioning.
The structure is built entirely from P truss, ensuring strength, stability and compatibility with standard truss components. The system is supplied with a silver‑grey polyester canopy as standard. This canopy is not fire‑retardant; however, a B1 fire‑retardant canopy is available on request and can be supplied in different colours. Side nets and back net are not included, but are available as separate accessories.
Combining truss brands must always be approved by a competent and suitably qualified third party. This party must write a risk assessment and carry out structural calculations. Use of non approved combinations is at the user’s sole risk.
- NGW roof system (no guy wires required)
- Constructed from P truss
- Maximum loading capacity 2,000 kg
- Silver‑grey polyester canopy supplied
- B1 fire‑retardant canopy available on request
- Side nets and back net not included (available separately)
| Overall external width | 8.73 m |
|---|
| Width (m) | 8 m |
|---|
| Internal width | 8.16 m |
|---|
| Overall external depth | 6.03 m |
|---|
| Depth (m) | 6 m |
|---|
| Internal depth | 5.44 m |
|---|
| Overall height | 4.92 m |
|---|
| Size | 290 mm x 290 mm |
|---|
| Weight | 855 kg |
|---|
| Canopy colour | Silver grey |
|---|
| Truss System | P Ø 29,8 mm |
|---|
| Connectable to | Milos |
|---|
| Included Accessories | Connectors included for complete structure |
|---|
