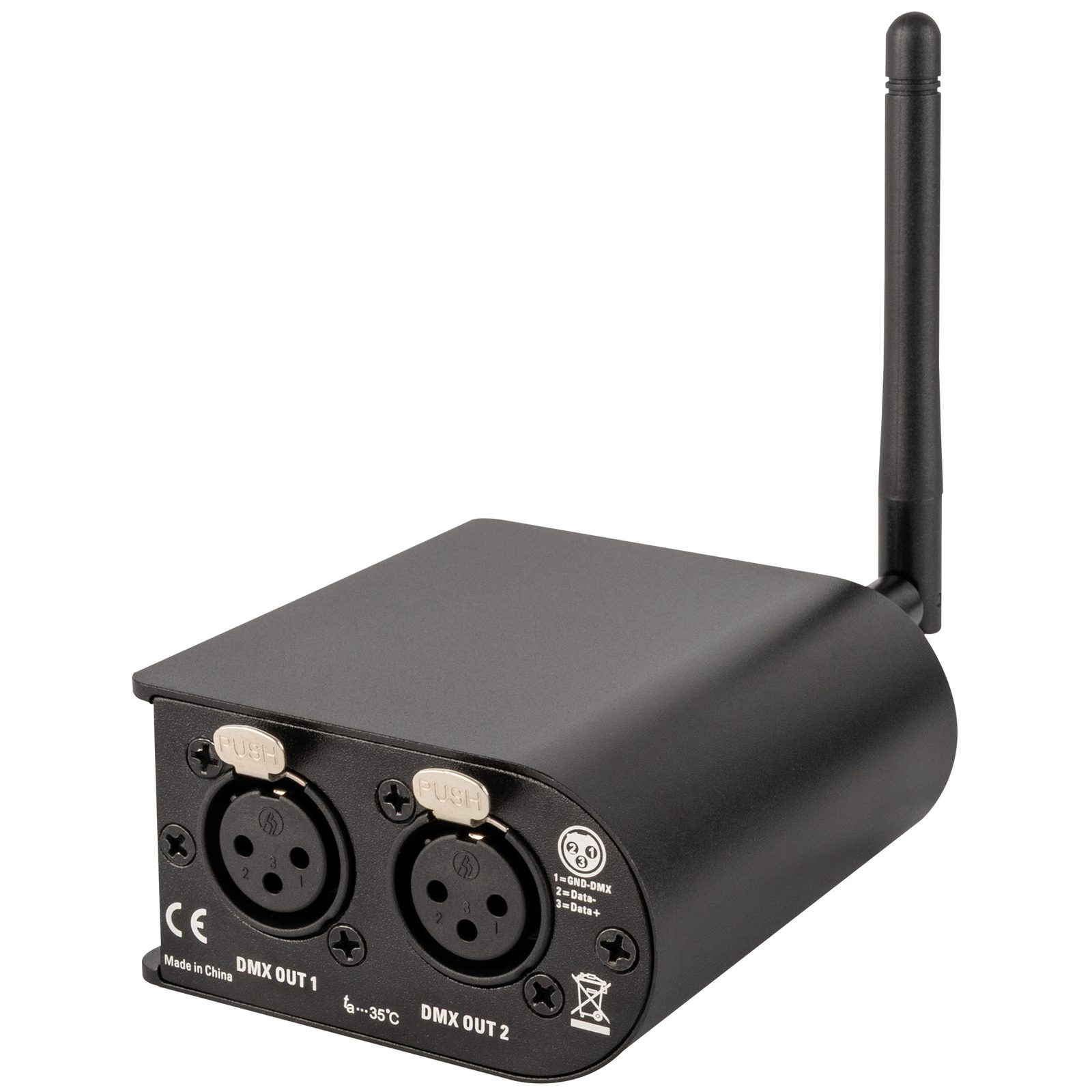

Interfaccia DMX Wi-Fi Quick DMX D1024-W 1024 canali - Showtec 50060
The Quick DMX D1024-W supports 1024 (2x 512) DMX channels and 1536 Art-Net channels through the Quick DMX software via USB or Wi-Fi. It is able to play up to 16 scenes over 4 different zones with high-resolution (16-bit) channel management, without a computer. The scenes can be triggered by Android or iOS apps as well as by Ethernet messages from a 3rd party app. The Quick DMX D1024-W DMX interface is compatible with Windows, macOS, Linux, Raspberry Pi, Android and iOS.
For technical support you can visit the <a href=https://thelightingcontroller.com target="_blank">technical forum</a>.
Access product-specific tutorials and usage instructions on the <a href=https://vimeo.com/showcase/11930596?fl=so&fe=fs target="_blank">Highlite Vimeo platform</a>.
- Supports 1024 DMX channels
- Supports 1526 Art-Net channels
- Control via USB or Wi-Fi
- Supports up to 16 scenes over 4 zones
- Compatible with various apps and operating systems
| Supported Operating Systems | Android / iOS / Linux / Mac / Windows |
|---|---|
| Control Mode | DMX |
| DMX Channels | 1024 |
| Wireless | Wifi |
| Universes | 2 |
| Power Supply | 5 V DC |
| Power over Ethernet (PoE) | No |
| Power Consumption | 5 W |
| Power Connector In | USB |
| DMX Connector Out | XLR 3P |
| Data Connector In | USB A |
| Length (mm) | 84 mm |
| Width (mm) | 75 mm |
| Height (mm) | 40 mm |
| Weight | 0.19 kg |
| IP Rating | IP20 (indoor use only) |
| Housing | Metal |
| Colour | Black |
| LED Indicators | DMX Green Signal / Power |
| Maximum Ambient Temperature | 40 °C |
| Minimum Ambient Temperature | 0 °C |
| Minimum Operating Temperature | 0 °C |
