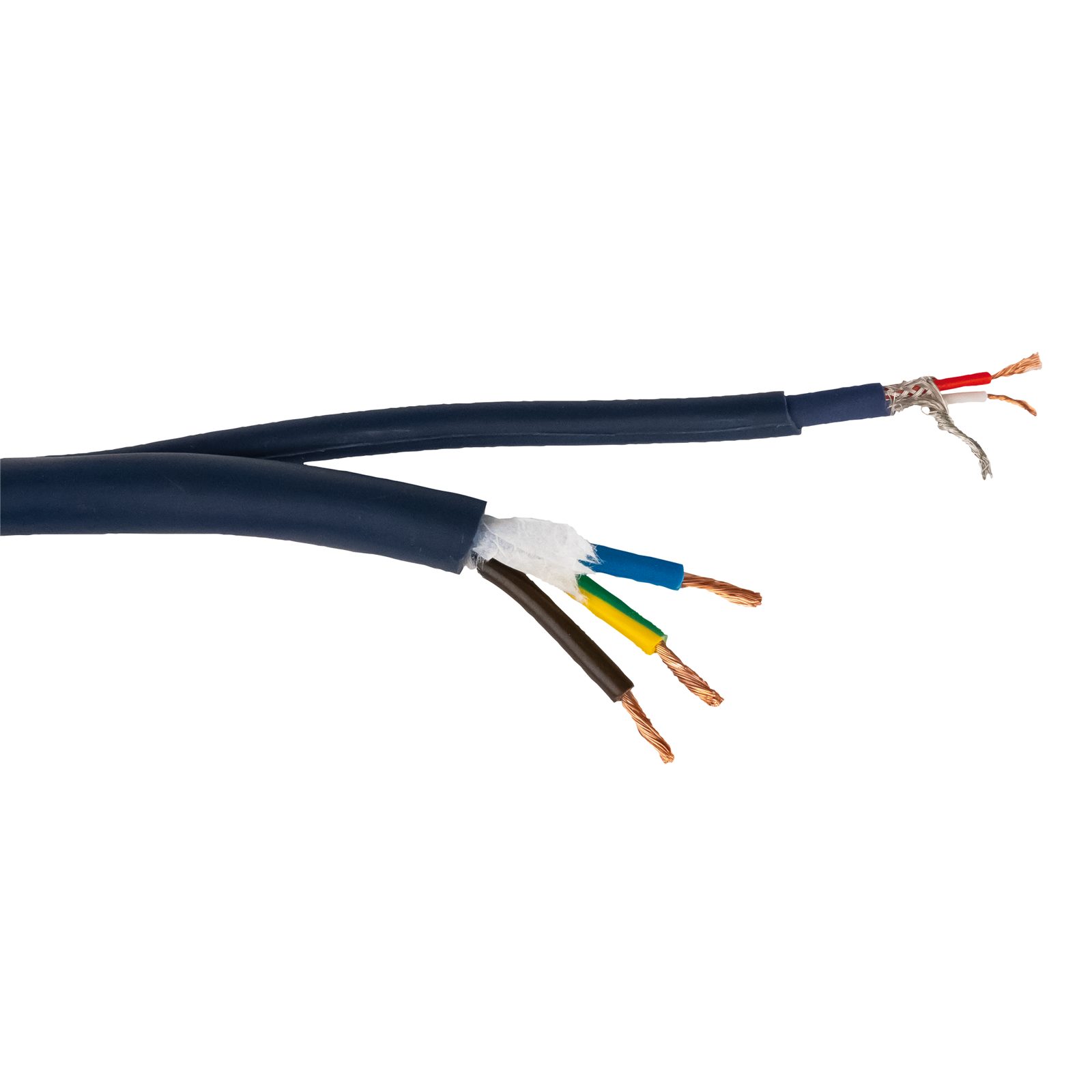

Cavo ibrido DMX/Power con PowerCON TRUE1 e XLR 3P 15m - DAP FP1315
Cavo ibrido DMX/Power con PowerCON TRUE1 e XLR 3P 15m - DAP FP1315

Cavo ibrido DMX/Power con PowerCON TRUE1 e XLR 3P 15m - DAP FP1315

DAP
134,16 €
Tasse incluse
15 m - blue
Condividi

The DAP FP-13 is a two-in-one cable for attaching your lighting fixtures to both your DMX console and the main power supply. It has both a powerCON TRUE1 (male/female) and a 3-pin XLR cable connector (male/female).

The FP-13 is called a hybrid cable since it has a double connection. One for power and the other for DMX communication. The advantage of powerCON TRUE1 is that they can be connected and disconnected under load.

This hybrid powerCON TRUE1 cable is available in the sizes: 150 cm, 3 m, 6 m, 10 m and 15 m.

  • 2-in-1 combi cable
  • Suitable for DMX supported lighting fixtures
  • 3-pin Neutrik XLR connectors
  • powerCON TRUE1 connectors
  • Available in different lengths
Rated Current (A)16 A
Flashover Voltage30 V
Impedance110 Ω
Connector 1powerCON TRUE1 TOP In (Female)
Connector 2powerCON TRUE1 TOP Out (Male)
DMX Connector InXLR 3P
DMX Connector OutXLR 3P
Brand Connector 1Neutrik
Cable Length15 m
Pins ( power )3
Pins ( data )3
Outer Cable Diameter11 mm
Outer Isolation TypePVC
Weight2.3 kg
IP RatingIP20 (indoor use only)
MaterialCopper
ColourBlue
Contact TypeSilver plated
Filler MaterialCotton / Paper

  • Marca
  • Riferimento
    FP1315
  • In magazzino
    10 Articoli
  • ean13
    8717748488947
