Cavo audio/power Schuko/XLR F - IEC/XLR M 20m Nero - DAP FP0820B

Name: Cavo audio/power Schuko/XLR F - IEC/XLR M 20m Nero - DAP FP0820B
Brand: DAP
SKU: FP0820B
Price: 59.93 EUR
Availability: OutOfStock

DAP

59,93 €

Tasse incluse

20 m - black

Non disponibile

Avvisami quando disponibile

Sei interessato a questo prodotto? Inviaci un'email e ti faremo sapere quando sarà disponibile per l'ordine.

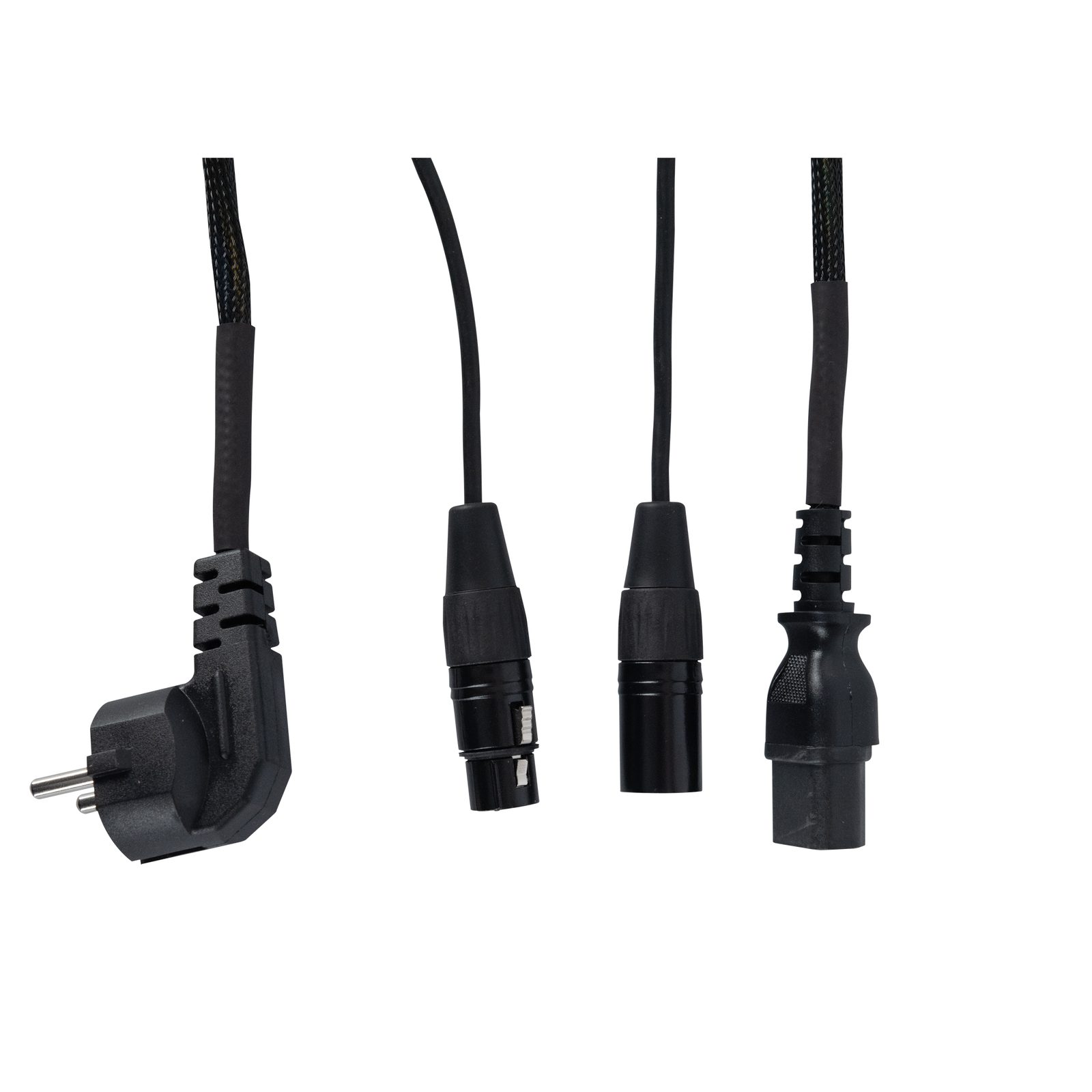

Power supply/audio signal cable incl. 3P male and female XLR connector, with male schuko and IEC connector.

Rated Current (A)	16 A
Flashover Voltage	30 V
Impedance	75 Ω
Connector 1	Schuko Plug / XLR 3P
Connector 2	IEC C13 female / XLR 3P
Cable Length	20 m
Pins ( power )	3
Pins ( data )	3
Wire Size	1.5 mm²
Conductor Resistance	80 Ω/km
Conductor Capacitance	60 pF/m
Capacity Inner Conduct. Shield/Inner Conduct.	78 pF/m
Outer Cable Diameter	11 mm
Outer Isolation Type	PVC
Weight	3.5 kg
Material	Copper
Colour	Black
1st Shield	Twisted
Shield Resistance	30 Ω/km
Filler Material	Paper
Maximum Ambient Temperature	60 °C
Minimum Ambient Temperature	-20 °C
