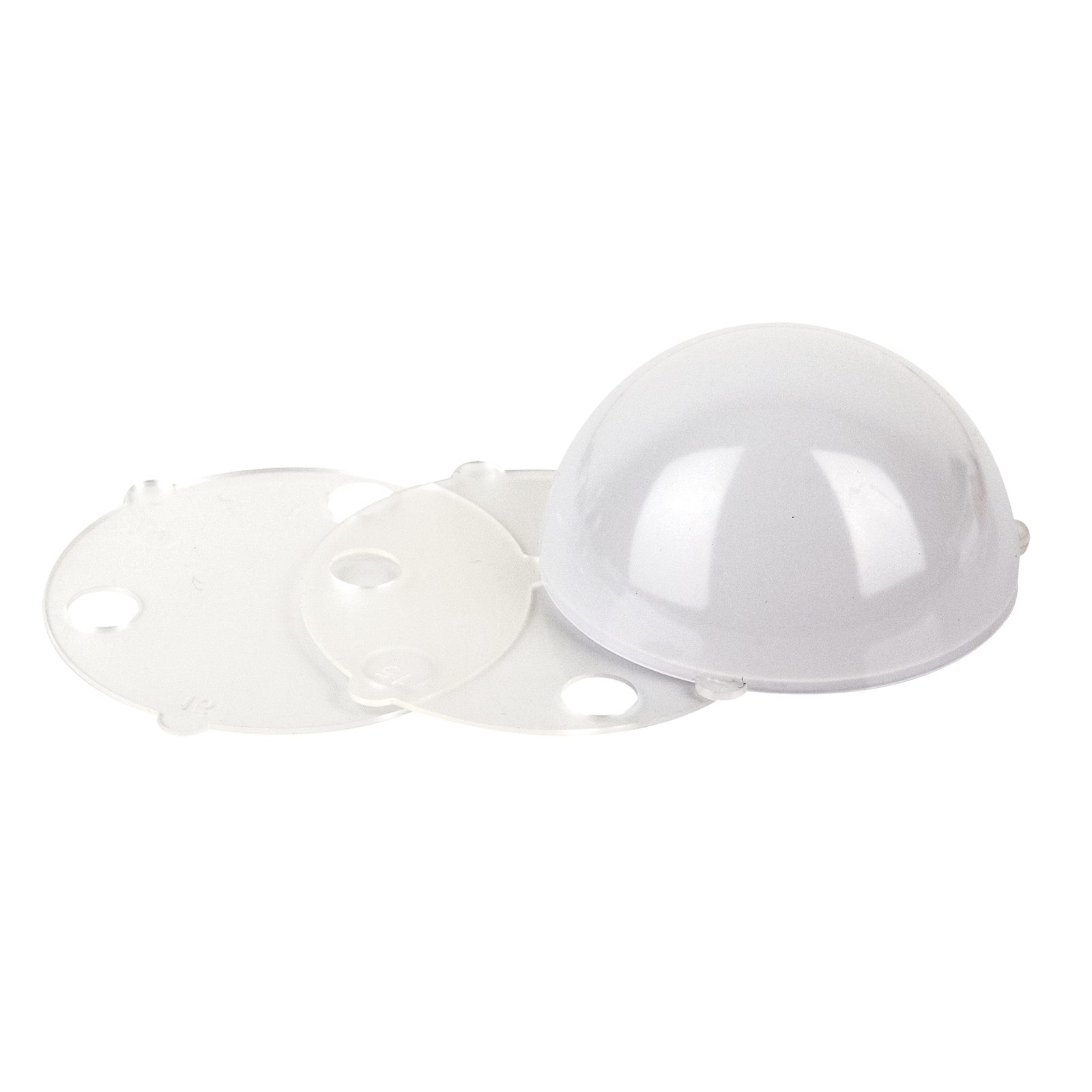

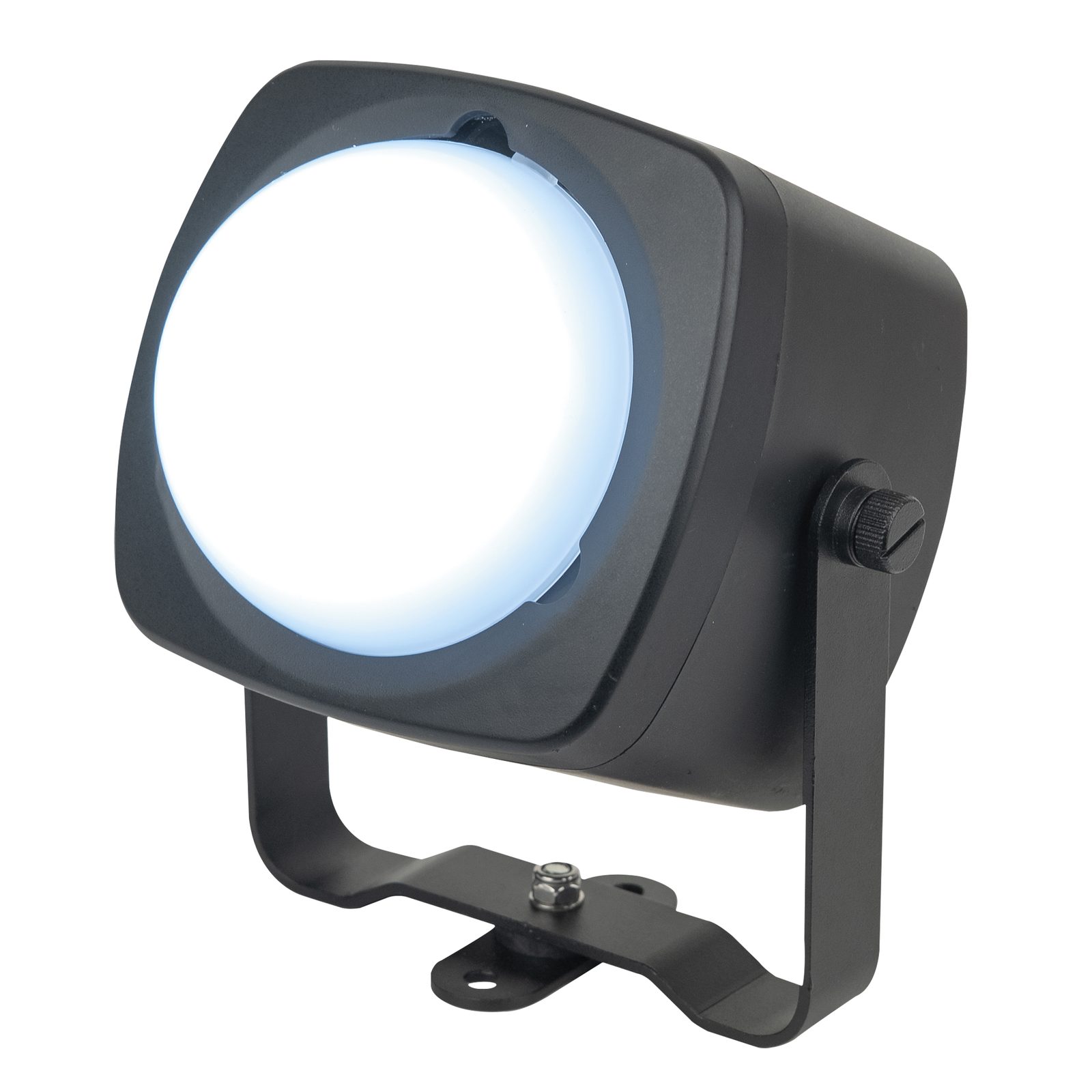

The Event Dot 15 is a compact but extremely versatile battery operated fixture. Equipped with a 15 W RGBW and 8° optics it projects a tight and strong beam. In order to be more versatile two additional diffusers (15° and 30°) and a dome diffuser are included. The Event Dot 15 can be mounted in many positions due to the several mounting options. It comes standard with a free standing bracket, it has a built-in magnet for easy mounting on metal objects, it has a tilt adjuster for adjusting the beam when positioned flat on a floor and last but not least it can be mounted with hook and loop due to the slot on the bottom of the fixture.
The Event Dot 15 can be controlled by Wi-Fi and infra-red (remote control optional available). Built-in colours are preprogrammed and by the app it is easy to setup and control your fixtures by your smartphone. For use in Wi-Fi mode we strongly suggest to use a professional router.
The Event Dot 15 is the right tool to illuminate the smallest detail of your event.
- Compact size
- Multiple mounting possibilities
- Including 3 different diffusers
- Long battery life (up to 16 hours colour mixing
| Light Source Type | LED |
|---|
| Light Source Quantity | 1 |
|---|
| Light Source Power | 15 W |
|---|
| LED Colour Type | RGBW |
|---|
| Refresh Rate | 1000 Hz |
|---|
| Luminous Flux (Total) | 118 lm |
|---|
| Luminous Flux (Red) | 52 lm |
|---|
| Luminous Flux (Green) | 157 lm |
|---|
| Luminous Flux (Blue) | 27 lm |
|---|
| Luminous Flux (White) | 148 lm |
|---|
| CRI | 70 |
|---|
| CCT | 6500 K |
|---|
| Beam Angle (Circular) | 8° |
|---|
| Battery Type | Lithium ion |
|---|
| Battery Voltage | 7.4 V |
|---|
| Capacity | 5.2 Ah |
|---|
| Runtime @Full | 6 h |
|---|
| Runtime Average | 16 h |
|---|
| Charging Time | 4.5 h |
|---|
| Battery Lifetime | 400 cycles |
|---|
| Control Mode | Auto / Built-in Program / DMX / IR / Manual |
|---|
| DMX Channels | 1 / 2 / 4 / 5 / 6 / 9 |
|---|
| Protocols | Art-Net / sACN |
|---|
| Wireless | Wifi |
|---|
| Dimmer | 0-100 % |
|---|
| Strobe | 0-20 Hz |
|---|
| Power Supply | AC-DC adapter (not incluced) |
|---|
| Output voltage | 8,5 V DC |
|---|
| Power Consumption | 20 W |
|---|
| Power Connector In | Low Voltage DC plug |
|---|
| Adapter type | AC-DC adapter (not included) |
|---|
| Length (mm) | 143 mm |
|---|
| Width (mm) | 101 mm |
|---|
| Height (mm) | 81 mm |
|---|
| Depth (mm) | 81 mm |
|---|
| Weight | 0.8 kg |
|---|
| IP Rating | IP20 Rear / IP54 Front |
|---|
| Material | Aluminium / Plastic |
|---|
| Housing | ABS |
|---|
| Colour | Black |
|---|
| Cooling | Convection |
|---|
| Maximum Ambient Temperature | 40 °C |
|---|
| Minimum Operating Temperature | 0 °C |
|---|
| Mounting Options | Bracket / Ceiling / Clamp / Hook and Loop |
|---|
| Safety Attachment | Yes |
|---|
| Included Optics | Diffuser / Lenses |
|---|
| Included Accessories | Adapter |
|---|
| Included Rigging | Bracket |
|---|
