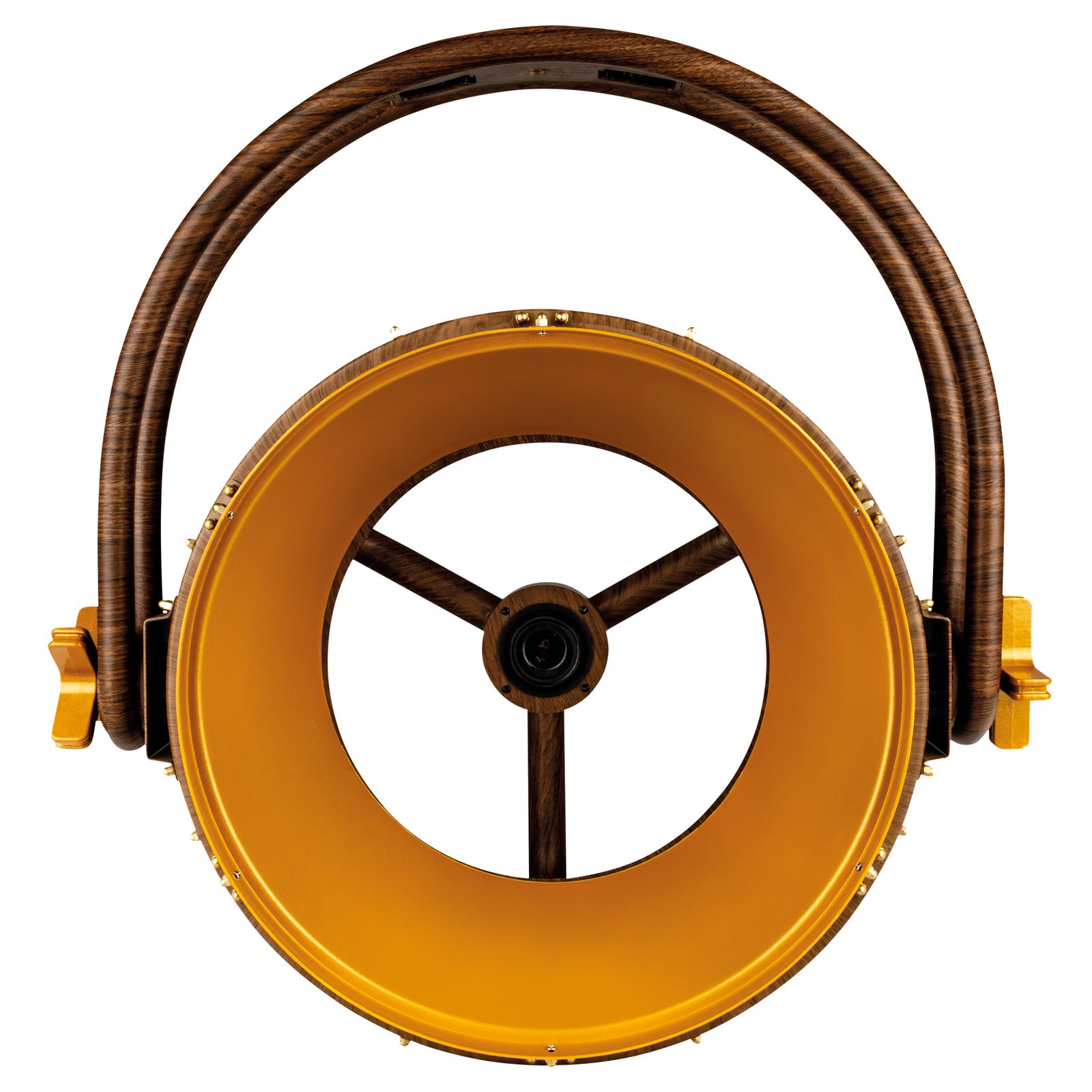

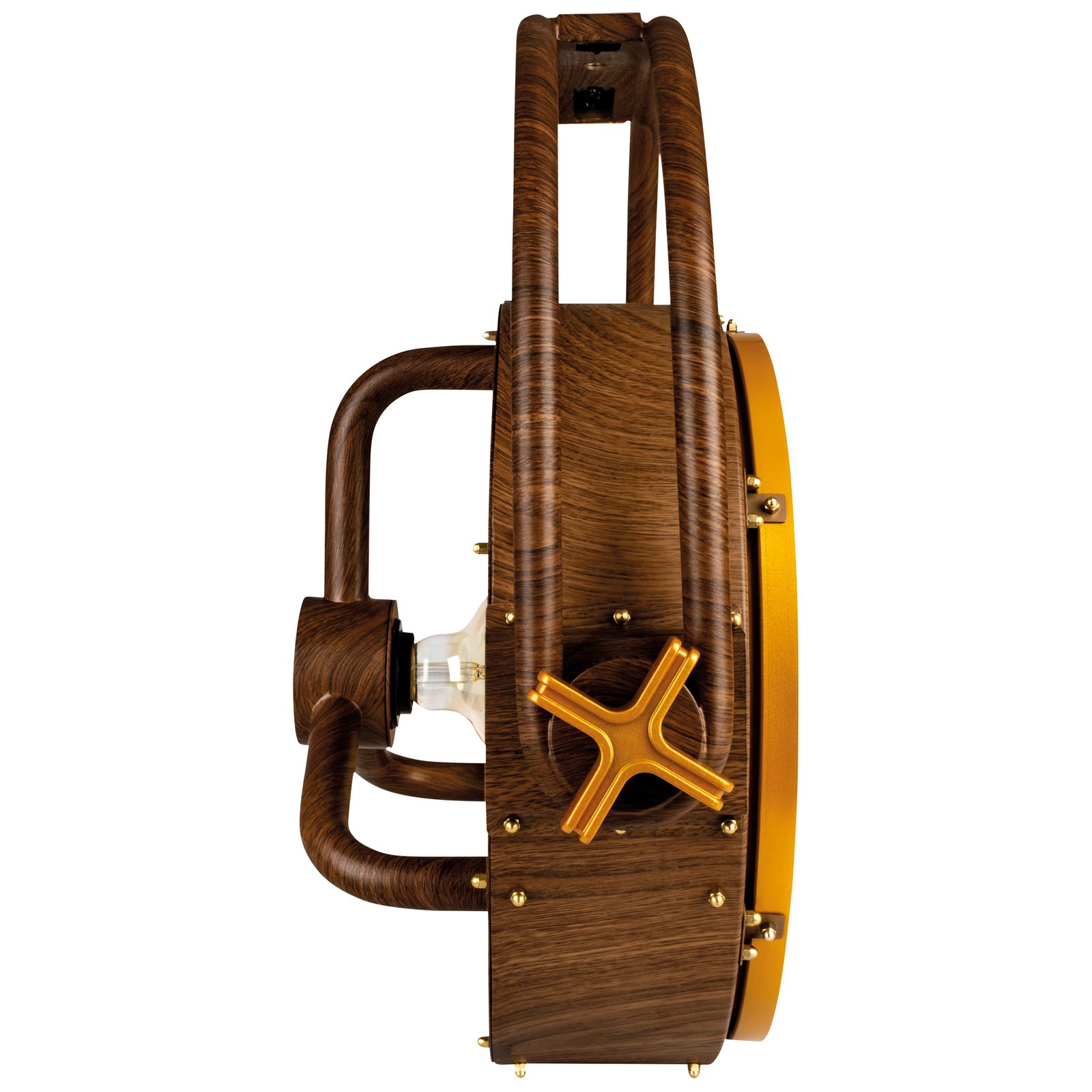

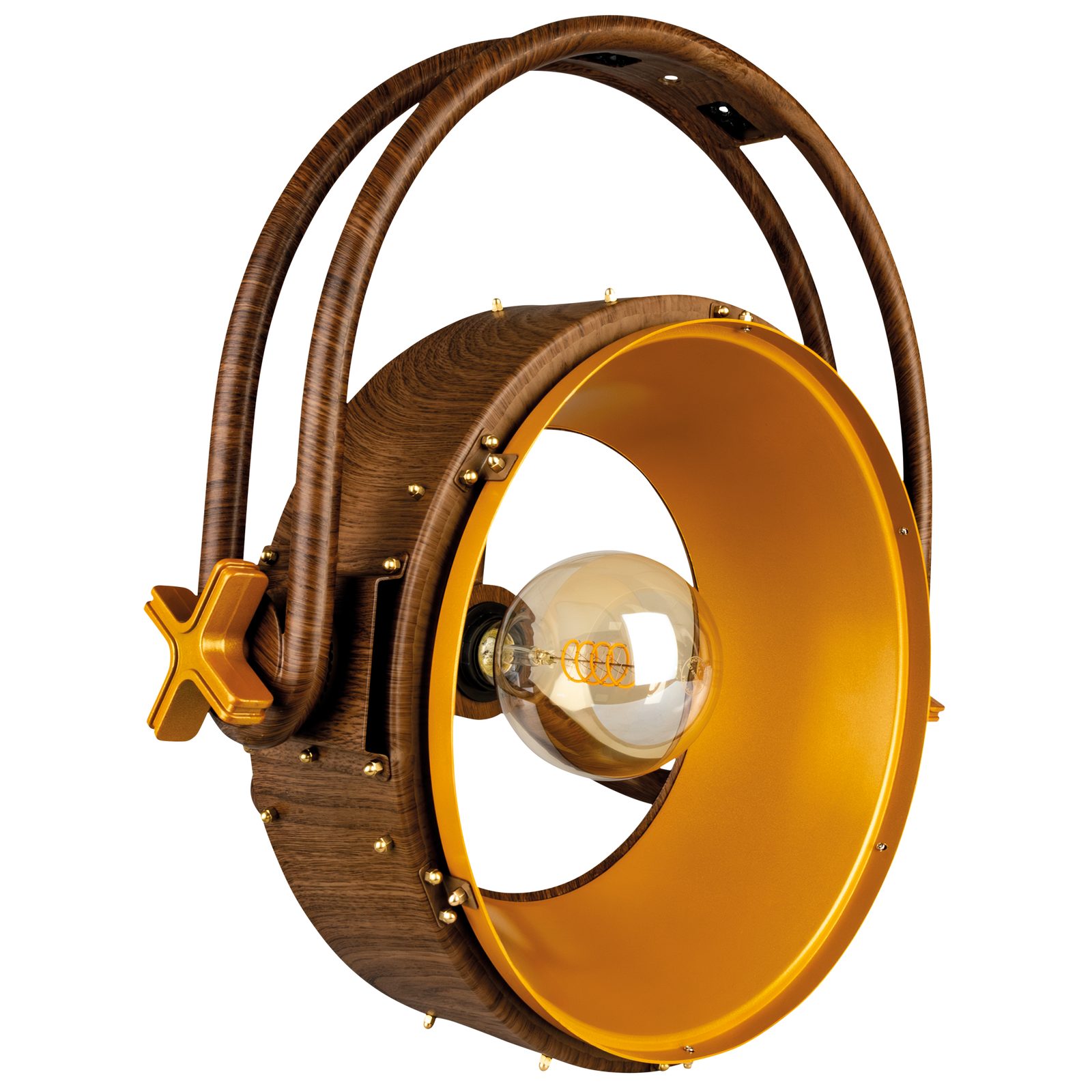

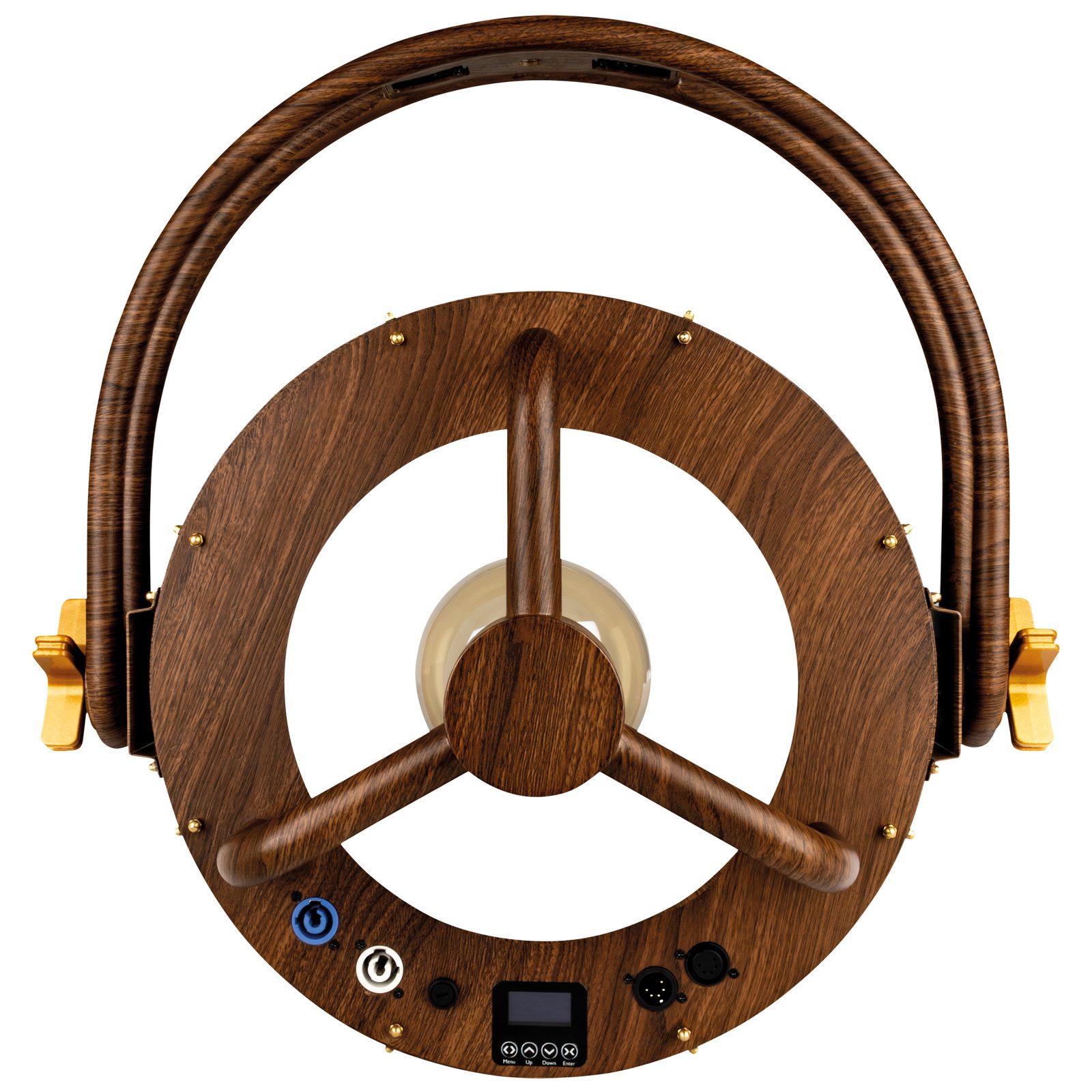

The Showtec Edison Vintage 2 is a large-format vintage-style luminaire. Combining a new design with the same trusted functionality as the Edison Vintage 1, it brings the charm of vintage lighting into the modern era. With an E27 socket, it delivers a cosy glow and elegant retro-inspired look, making it a perfect addition to stages, studios, themed venues and decorative installations. The built-in dimmer supports both DMX control and manual operation, with smooth, non-linear voltage-based dimming for authentic incandescent-style fades. An intuitive OLED display ensures easy configuration, while the quick-lock bracket allows for fast, secure mounting on truss or 50 mm pipe systems.
LED bulb not included.
- DMX LED dimmer with E27 socket
- Manual and DMX control
- Quick-lock mounting bracket included
- OLED display for easy control
| Light Socket | E27 |
|---|
| Number of Sockets | 1 |
|---|
| Control Mode | DMX / Manual |
|---|
| DMX Channels | 1 / 2 |
|---|
| Protocols | DMX / RDM |
|---|
| Display | OLED |
|---|
| Display Size | 1.3" |
|---|
| Dim Curve | Linear / Square / I-Square / S-Curve |
|---|
| Dimmer Resolution | 16 bit |
|---|
| Dimmer | 0-100 % |
|---|
| Power Supply | 100-240 V AC 50/60 Hz |
|---|
| Power Consumption | 6.7 W |
|---|
| Max. power consumption | 20 W |
|---|
| Fuse | 1 A |
|---|
| Power Connector In | Power Pro Blue |
|---|
| Power Connector Out | Power Pro Grey |
|---|
| DMX Connector | XLR 5P In/Out |
|---|
| DMX Connector In | XLR 5P |
|---|
| DMX Connector Out | XLR 5P |
|---|
| Cable Length | 1.5 m |
|---|
| Height (mm) | 541 mm |
|---|
| Width (mm) | 526 mm |
|---|
| Depth (mm) | 239 mm |
|---|
| Weight | 5.3 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Material | Aluminium / Metal |
|---|
| Housing | Aluminium / Metal |
|---|
| Colour | Pale Gold / Wood Grain |
|---|
| Cooling | Convection |
|---|
| Mounting Options | Clamp / Quick-Lock |
|---|
| Maximum Ambient Temperature | 45 °C |
|---|
| Minimum Operating Temperature | 0 °C |
|---|
| Included Cables | Power Pro Cable |
|---|
| Included Rigging | Quick-Lock Bracket |
|---|
