Distributore 3G-SDI 1x4 - DMT VT403

DMT

131,41 €

Tasse incluse

1 In, 4 out

The DMT VT-series is a new, comprehensive range of video tools, suitable for various applications. Due to the user-friendly design, all models are easy to operate and integrate in almost any video configuration. Exhibitions, events, conferences, or fixed installation projects, the DMT VT-Series offers you the right video tools for the job.

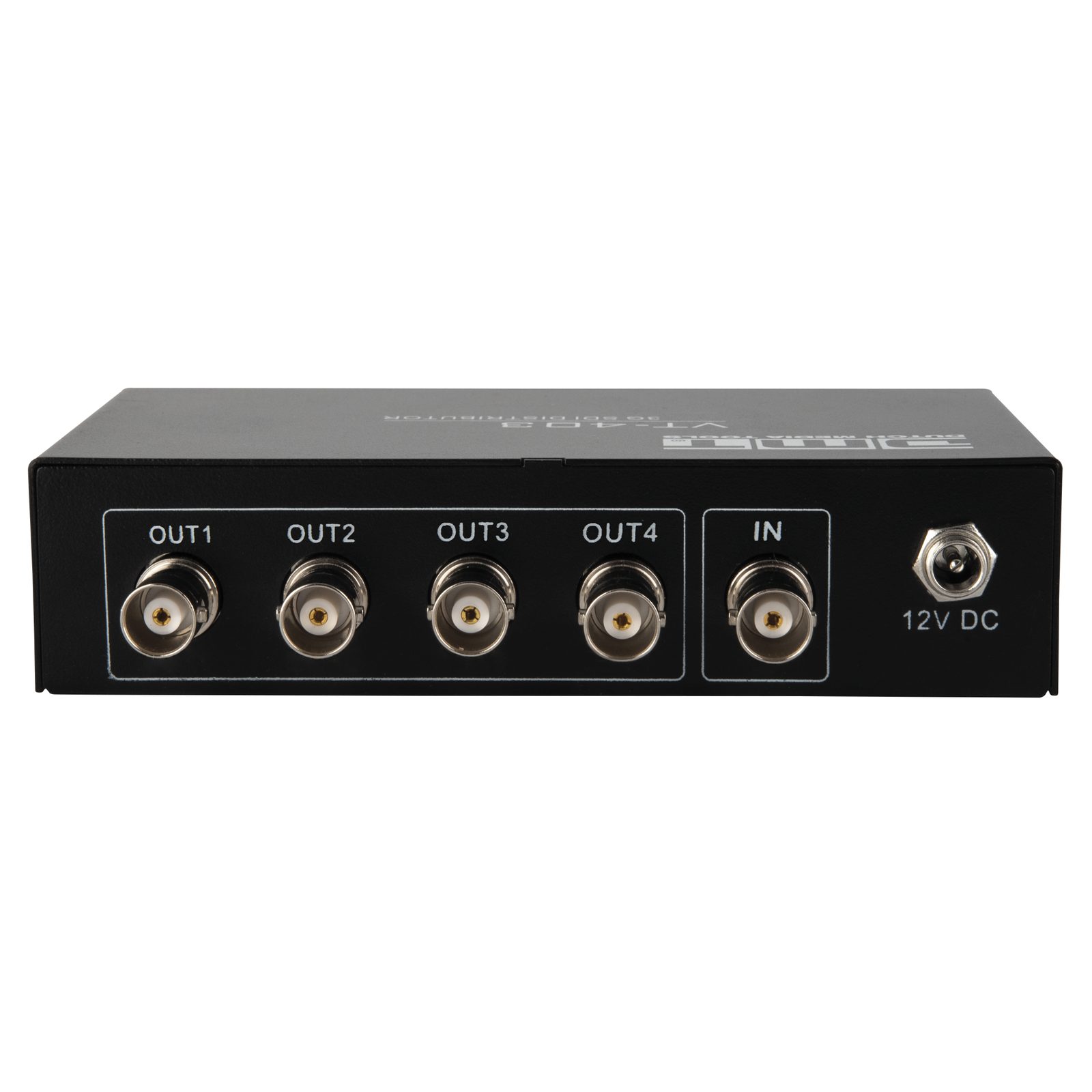

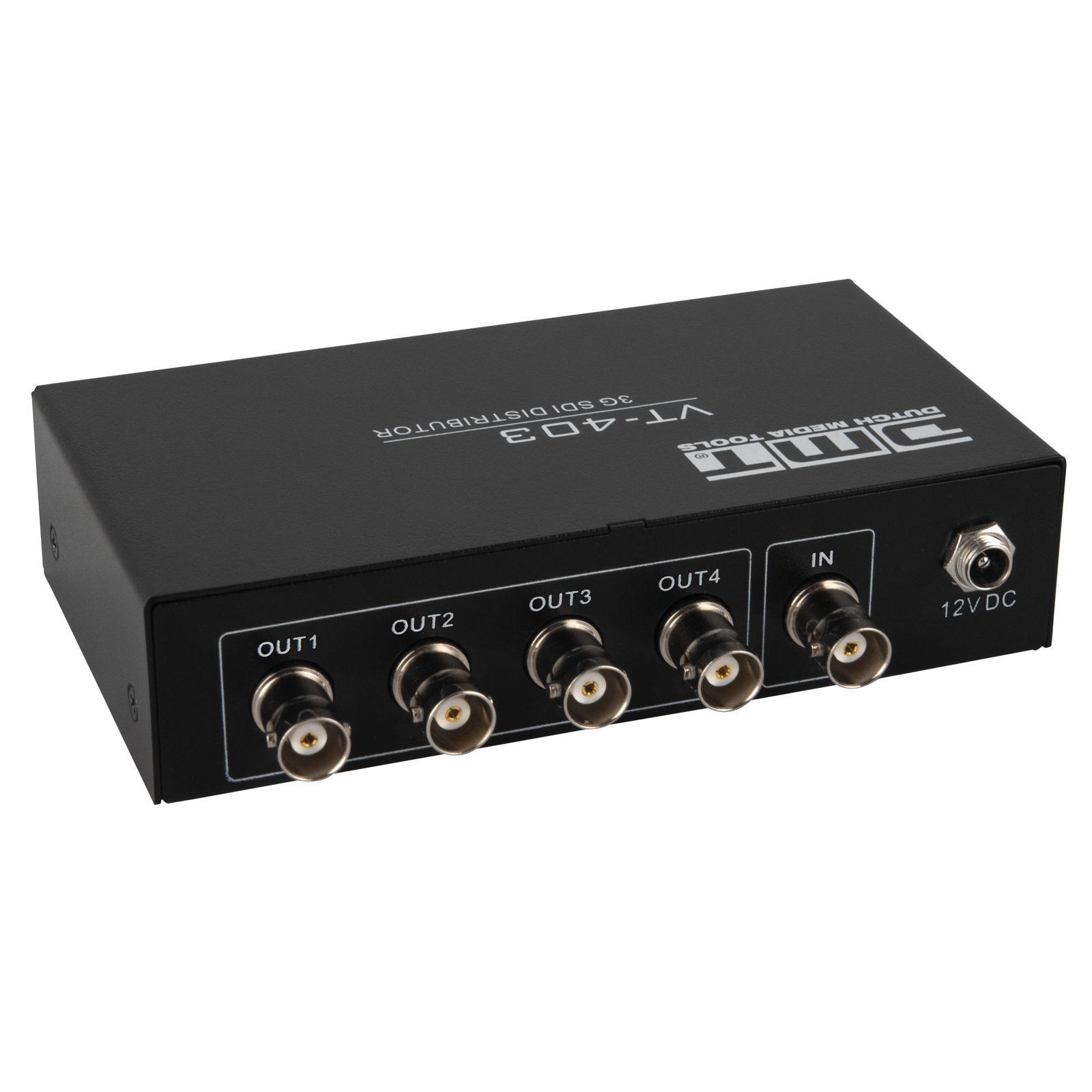

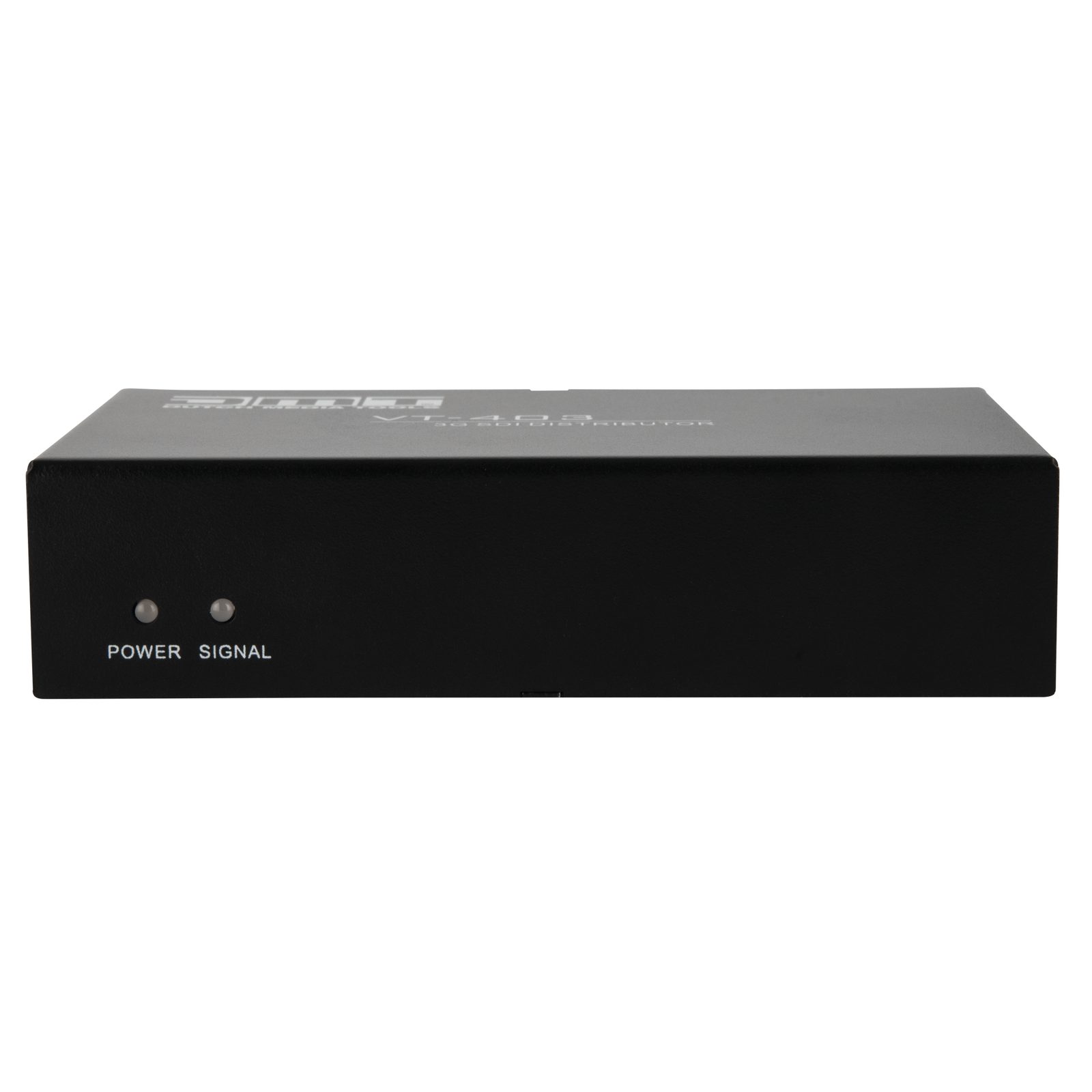

The DMT VT403 is a 3G SDI distributor that supports up to 1920x1080 @60 Hz. Its compact housing is equipped with one input and four outputs and two LEDs on the front indicate the power and signal status. For a secure connection, the included power adaptor has a lockable DC connector. Two mounting brackets are also included.

3G SDI distributor supports up to 1920x1080@60 Hz
1x Input > 4x Output
Compact housing

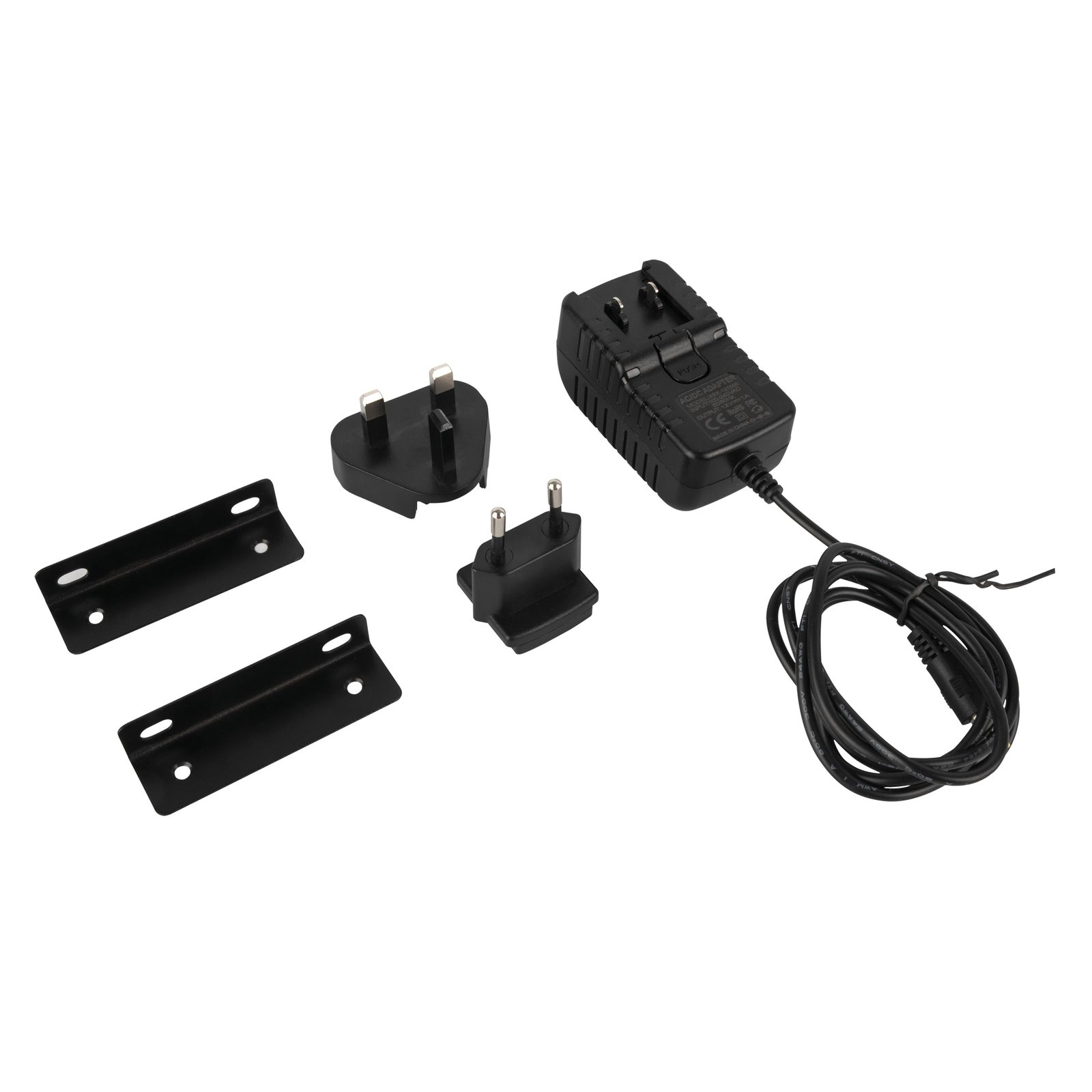

PSU with lockable DC connector included
2x mounting bracket included

Type of input connector	3G-SDI
3G-SDI	1
Type of output connector	3G-SDI (Out)
3G-SDI (Out)	4
Maximum Input Resolution	1920 x 1080
Maximum Output Resolution	1920 x 1080
Power Supply	100-240 V AC 50/60 Hz
Output voltage	12 V DC
Power Consumption	2.5 W
Power Connector In	Low Voltage DC plug
Data Connector In	BNC
Data Connector Out	BNC
Adapter type	AC-DC adapter
Input voltage	100-240 V AC, 50/60 Hz
Width (Including Handles)	162 mm
Width (Without Handles)	132 mm
Height (Including Handles)	32 mm
Height (Without Handles)	31 mm
Depth (Including Handles)	72 mm
Weight	0.32 kg
IP Rating	IP20 (indoor use only)
Housing	Metal
Colour	Black
Maximum Ambient Temperature	40 °C
Minimum Ambient Temperature	0 °C
Included Accessories	Adapter / Mounting brackets
