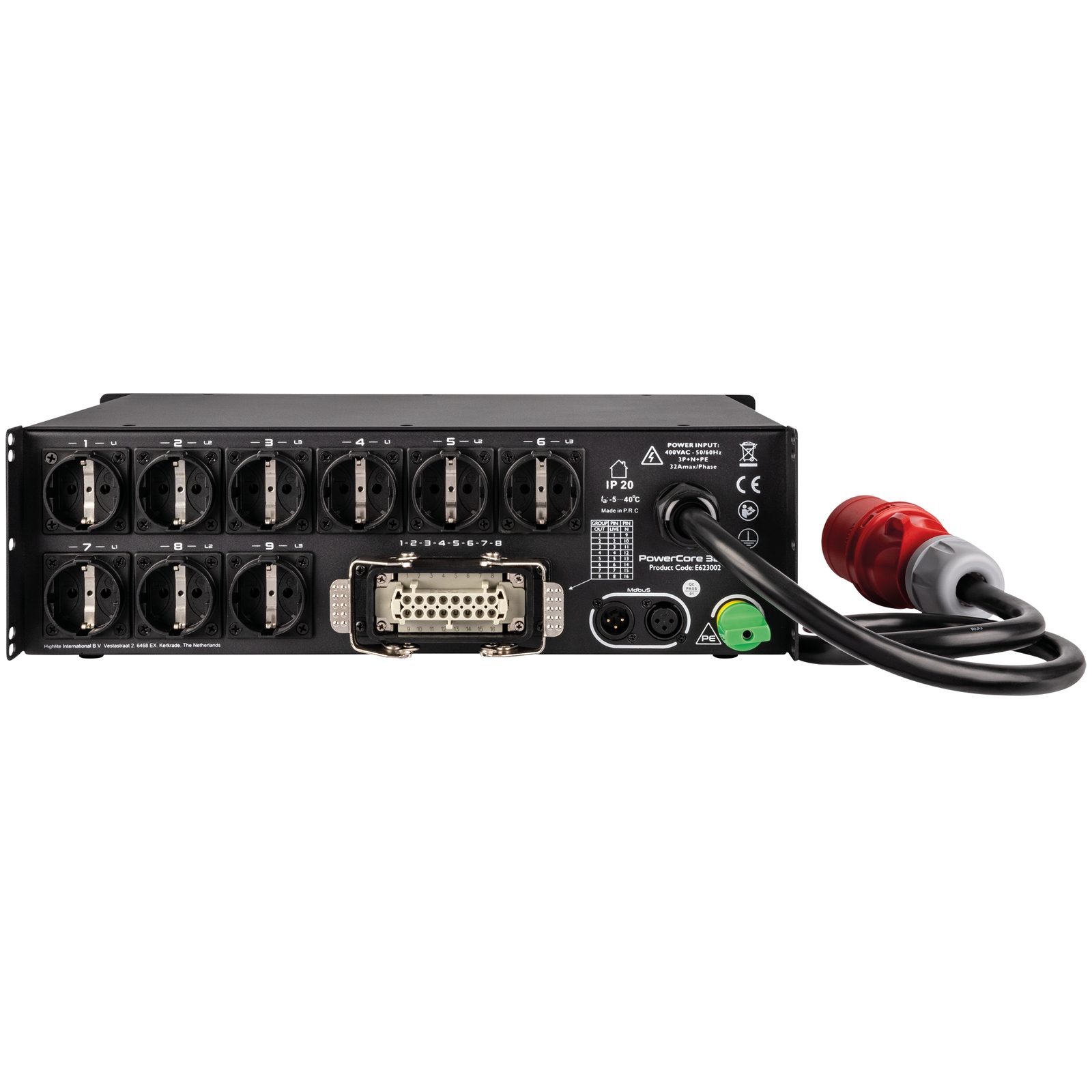

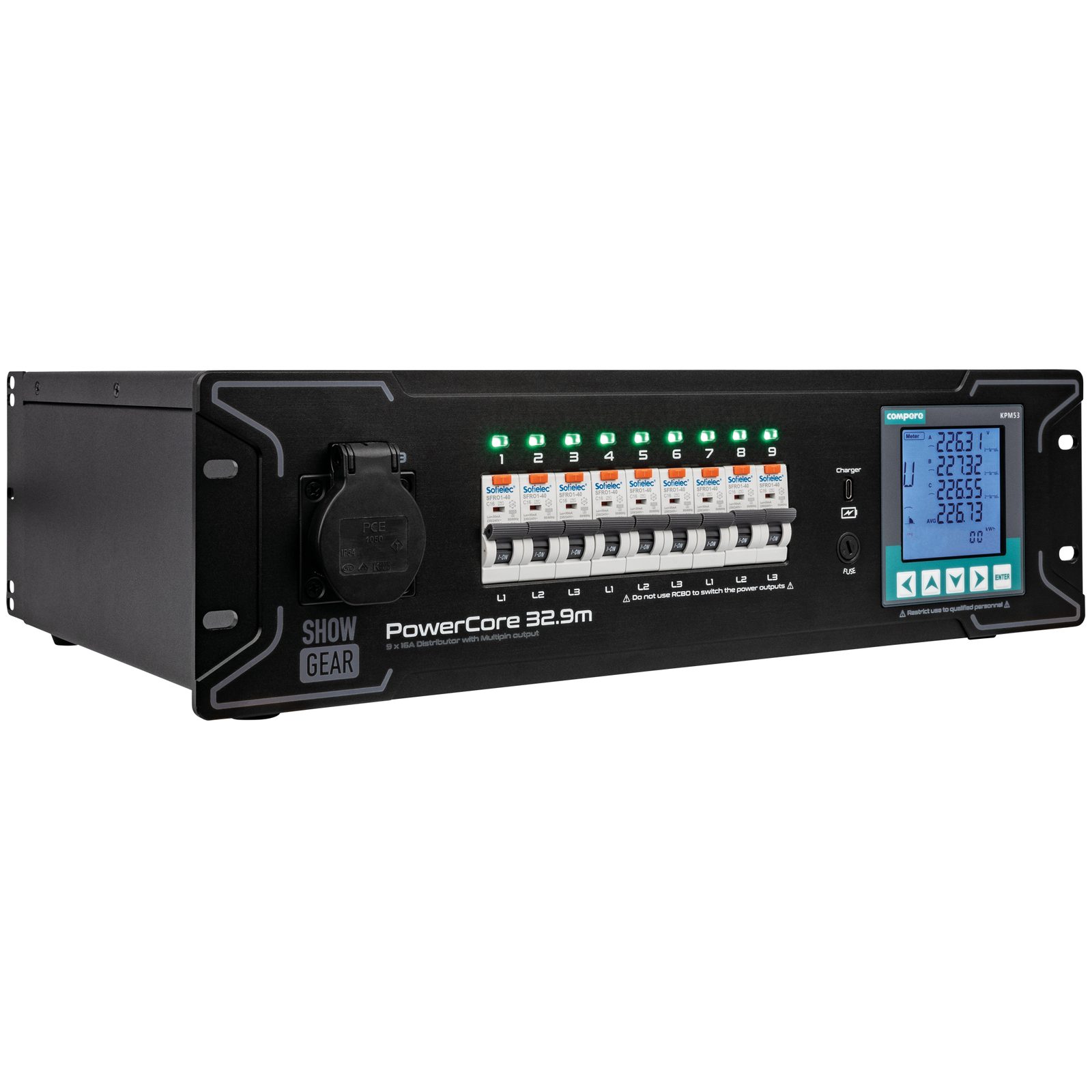

PowerCore 32.9m - Distribuzione 1x 32A a 9x Schuko + 1x H16 con RCBO - Showgear E623002

Prezzo: 1.181,23 €
Tasse incluse
1 + 9x Schuko + 1x Multipin H16
Condividi

The Showgear PowerCore 32.9m provides reliable power and optimal protection for your valuable equipment. Each output is armed with its own RCBO to detect earth faults and overcurrents. In the event that a problem is detected, it will automatically shut down the affected circuit, keeping the rest of the system active.

With an LED for each output, it's also easy to check statuses, while a 3-inch display makes it possible to view various settings, including voltage, power and phase information. A power meter with the MdbuS communication protocol makes it possible to monitor performance remotely too.

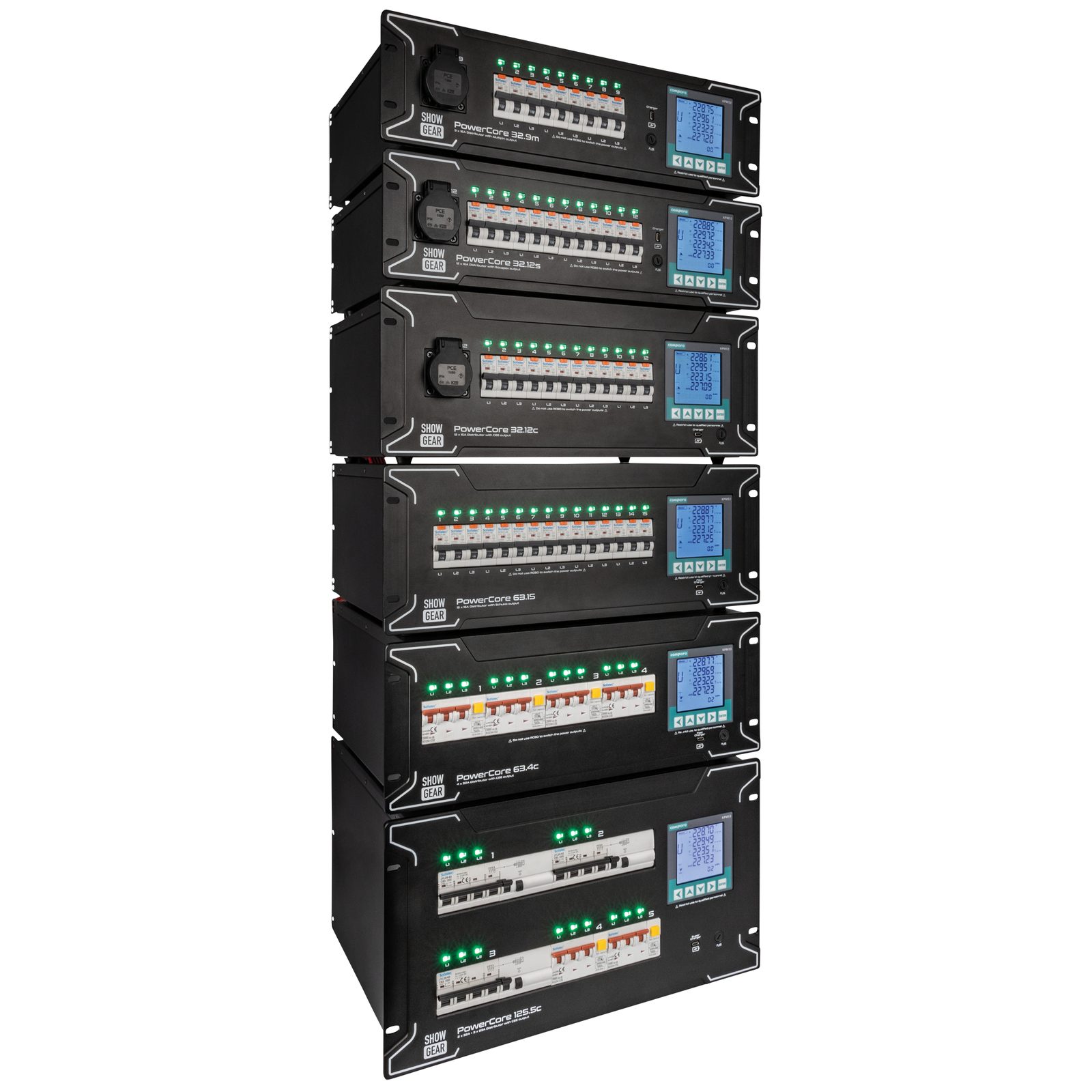

A robust CNC-milled aluminium front panel and sturdy mounting connectors by PCE make the PowerCore range suitable for demanding applications.

  • RCBO per output
  • LED per output
  • 3-inch display
  • Power meter with MdbuS protocol
  • CNC-milled aluminium front panel and PCE connectors
DisplayLCD
ProtocolsMd-bus
Display Size3.14"
Rated Voltage400 V
Power Consumption7.5 W
Nature of the Supply voltage (multi-phase)AC 3-Phase+N+PE
Rated Current (A)32 A
Rated Frequency50 Hz
Fuse1 A
Data Connector InXLR 3P
Data Connector OutXLR 3P
Power Connector InCEE5P 32 A
Power Connector OutMultipin H16 / Schuko Socket, Type F
Cable Length1 m
RCCB Residual TypeA
RCBO Rated Current16 A
RCBO Tripping TypeC
RCBO Poles2
RCBO Sensitivity30 mA
Length (mm)344 mm
Height (mm)139 mm
Width (mm)483 mm
Weight11.9 kg
Rack Units3 U
IP RatingIP20 (indoor use only)
HousingAluminium / Metal
ColourBlack
LED IndicatorsPower
Ground Lug Position6H
Maximum Ambient Temperature40 °C
Minimum Ambient Temperature-5 °C

  • Marca
  • Riferimento
    E623002
  • In magazzino
    10 Articoli
  • ean13
    8717748604248
