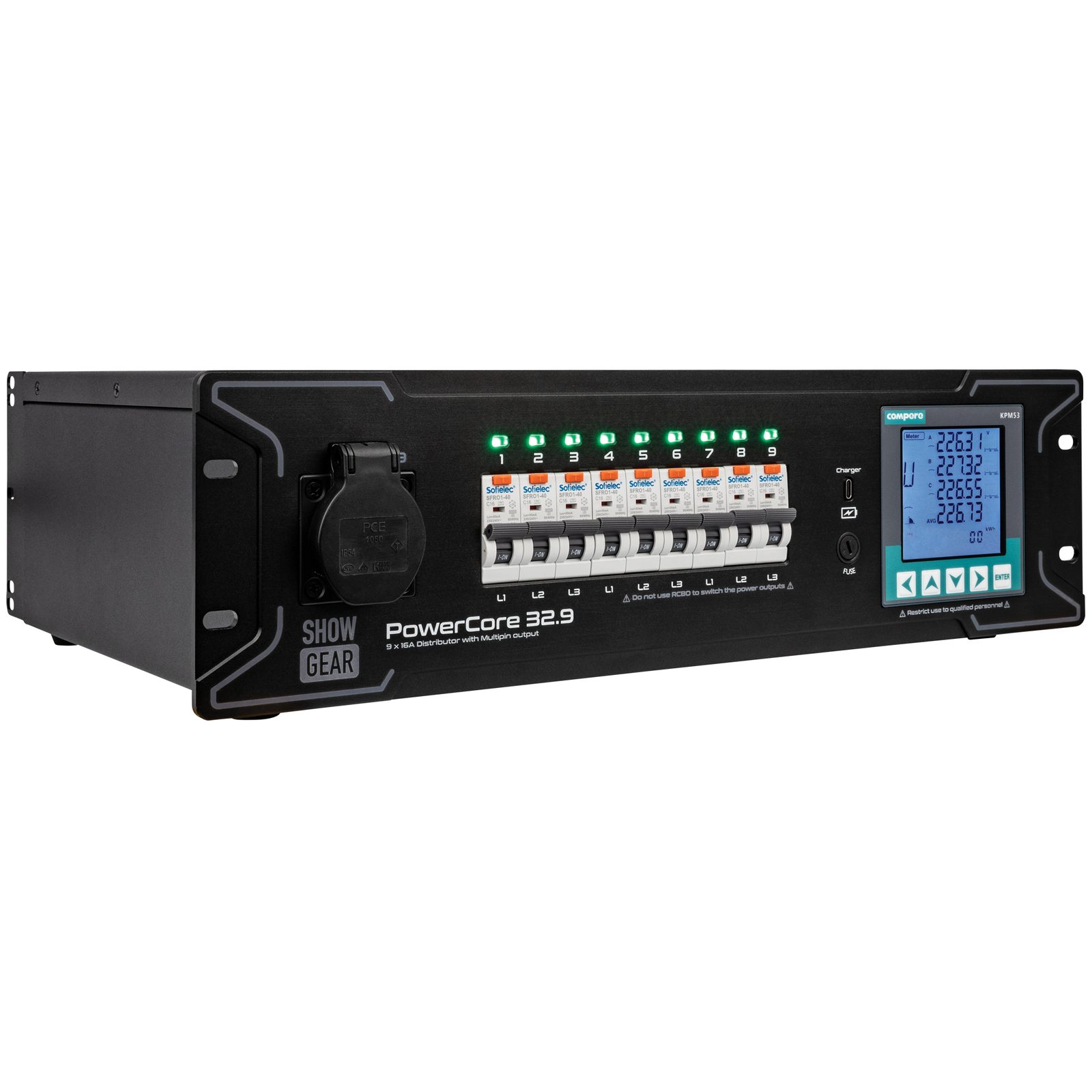

PowerCore 32.9 - Distribuzione 1x 32A a 9x Schuko con RCBO - Showgear E623001
The Showgear PowerCore 32.9 provides reliable power and optimal protection for your valuable equipment. Each output is armed with its own RCBO to detect earth faults and overcurrents. In the event that a problem is detected, it will automatically shut down the affected circuit, keeping the rest of the system active.
With an LED for each output, it's also easy to check statuses, while a 3-inch display makes it possible to view various settings, including voltage, power and phase information. A power meter with the MdbuS communication protocol makes it possible to monitor performance remotely too.

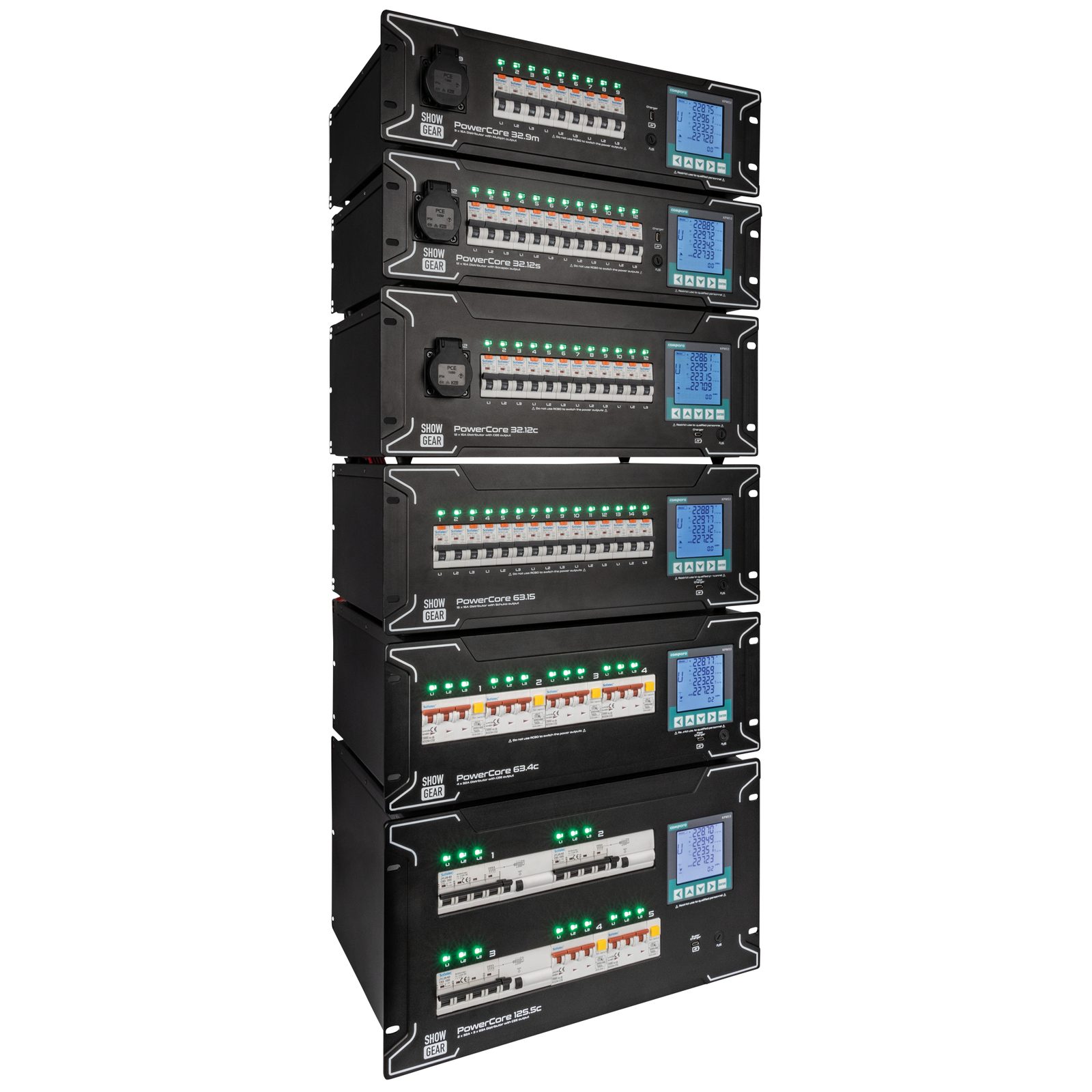

A robust CNC-milled aluminium front panel and sturdy mounting connectors by PCE make the PowerCore range suitable for demanding applications.
- RCBO per output
- LED per output
- 3-inch display
- Power meter with MdbuS protocol
- CNC-milled aluminium front panel and PCE connectors
| Display | LCD |
|---|---|
| Protocols | Md-bus |
| Display Size | 3.14" |
| Rated Voltage | 400 V |
| Power Consumption | 7.5 W |
| Nature of the Supply voltage (multi-phase) | AC 3-Phase+N+PE |
| Rated Current (A) | 32 A |
| Rated Frequency | 50 Hz |
| Fuse | 1 A |
| Data Connector In | XLR 3P |
| Data Connector Out | XLR 3P |
| Power Connector In | CEE5P 32 A |

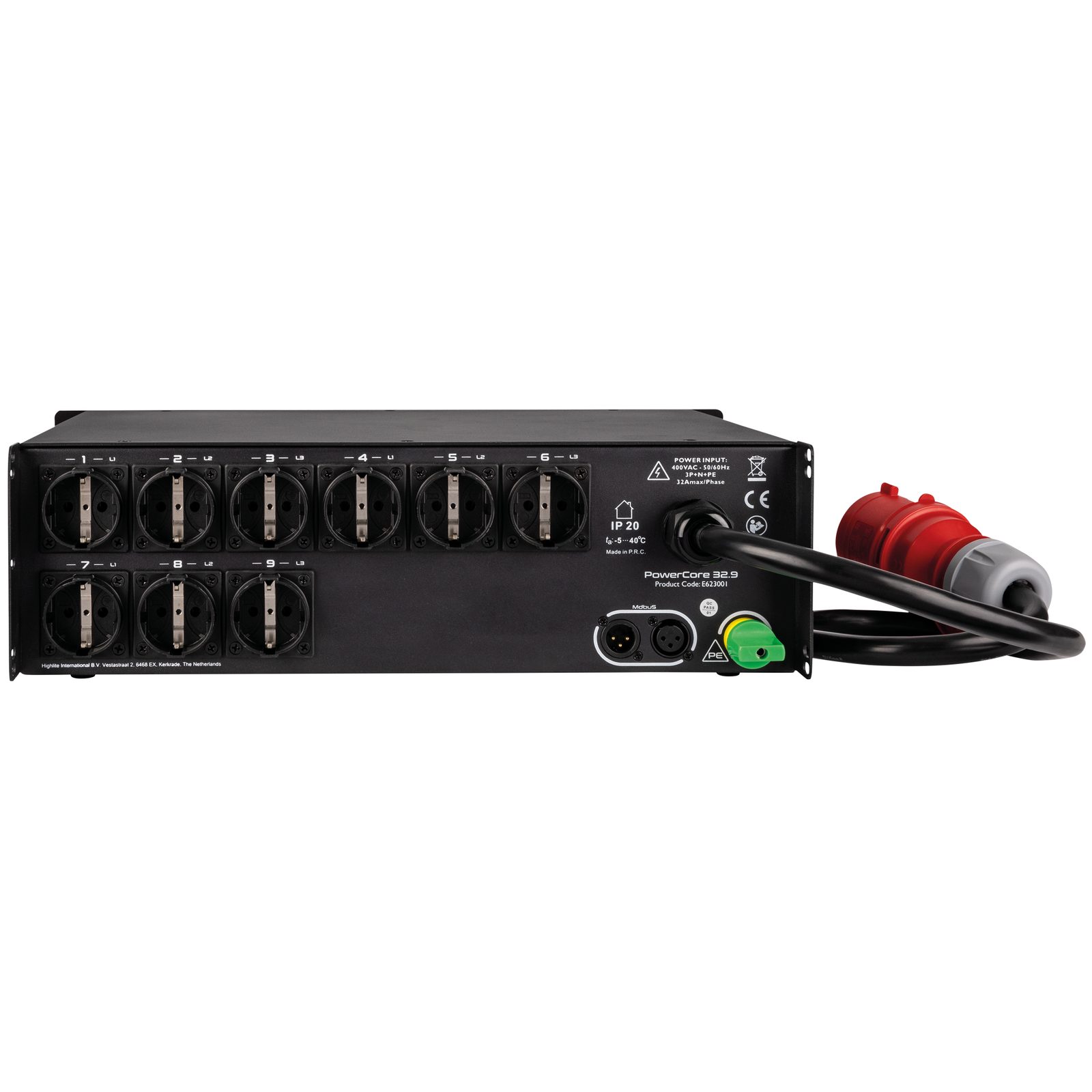

| Power Connector Out | Schuko Socket, Type F |
| Cable Length | 1 m |
| RCBO Rated Current | 16 A |
| RCBO Residual Type | A |
| RCBO Tripping Type | C |
| RCBO Poles | 2 |
| RCBO Sensitivity | 30 mA |
| Length (mm) | 344 mm |
| Height (mm) | 139 mm |
| Width (mm) | 483 mm |
| Weight | 11.9 kg |
| Rack Units | 3 U |
| IP Rating | IP20 (indoor use only) |
| Housing | Aluminium / Metal |
| Colour | Black |
| LED Indicators | Power |
| Ground Lug Position | 6H |
| Maximum Ambient Temperature | 40 °C |
| Minimum Ambient Temperature | -5 °C |
