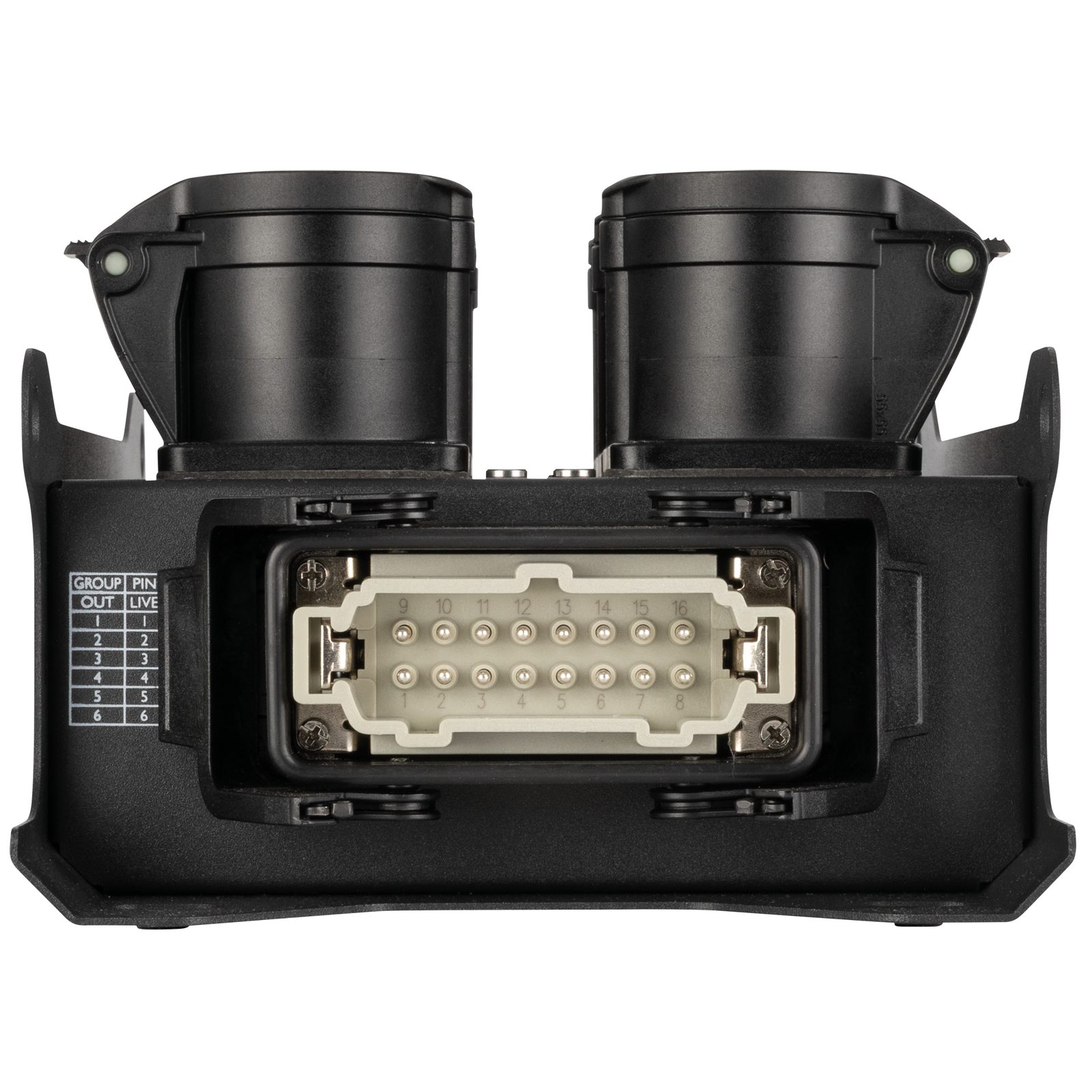

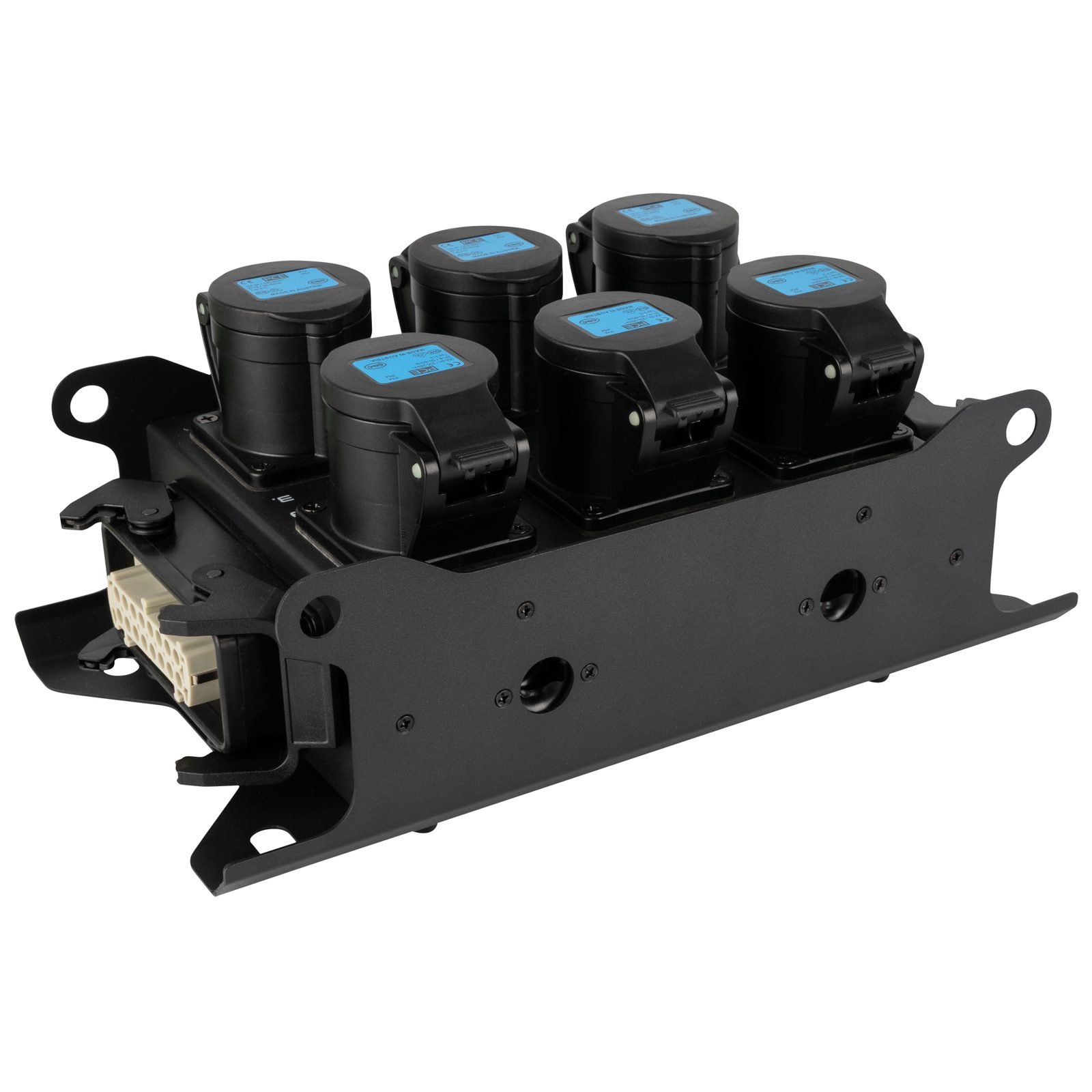

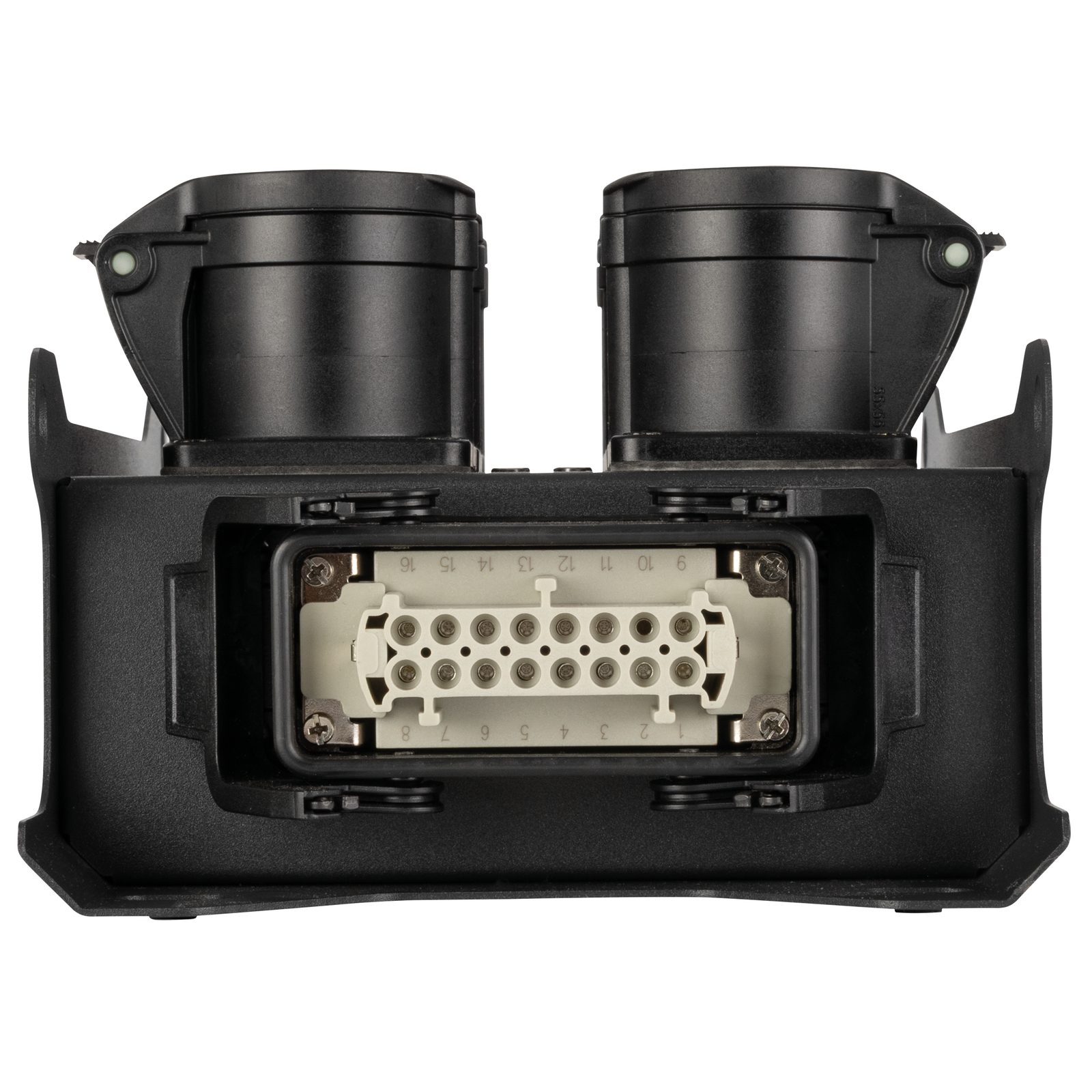

The Showgear PowerCore 2m.6c is a breakout power box with two Multipin H16 connectors (male/female) and 6 high-quality CEE 16A (1P+N+PE) outlets from PCE. Its loop-through design connects all 8 channels from input to output, while channels 1-6 power the CEE outlets. Each outlet includes a voltage indication LED for quick and convenient status checks. It is designed for seamless integration with the Showgear PowerCore series and is compatible with all PowerCore units equipped with a Multipin H16 output connector. It is also compatible with Harting HAN16 and other power distributor brands that use the 1-9 standard (pin 1+9 is channel 1, pin 2+10 is channel 2, etc.)
For flexible installation, the PowerCore 2m.6c offers multiple mounting holes for permanent setups and a quick-lock mounting point for fast, tool-free attachment using the optional PowerCore Quick Lock Bracket.
- 2 Multipin H16 connectors (1 in, 1 out) with loop-through functionality
- 6 CEE 16A (1P+N+PE) outlets from PCE

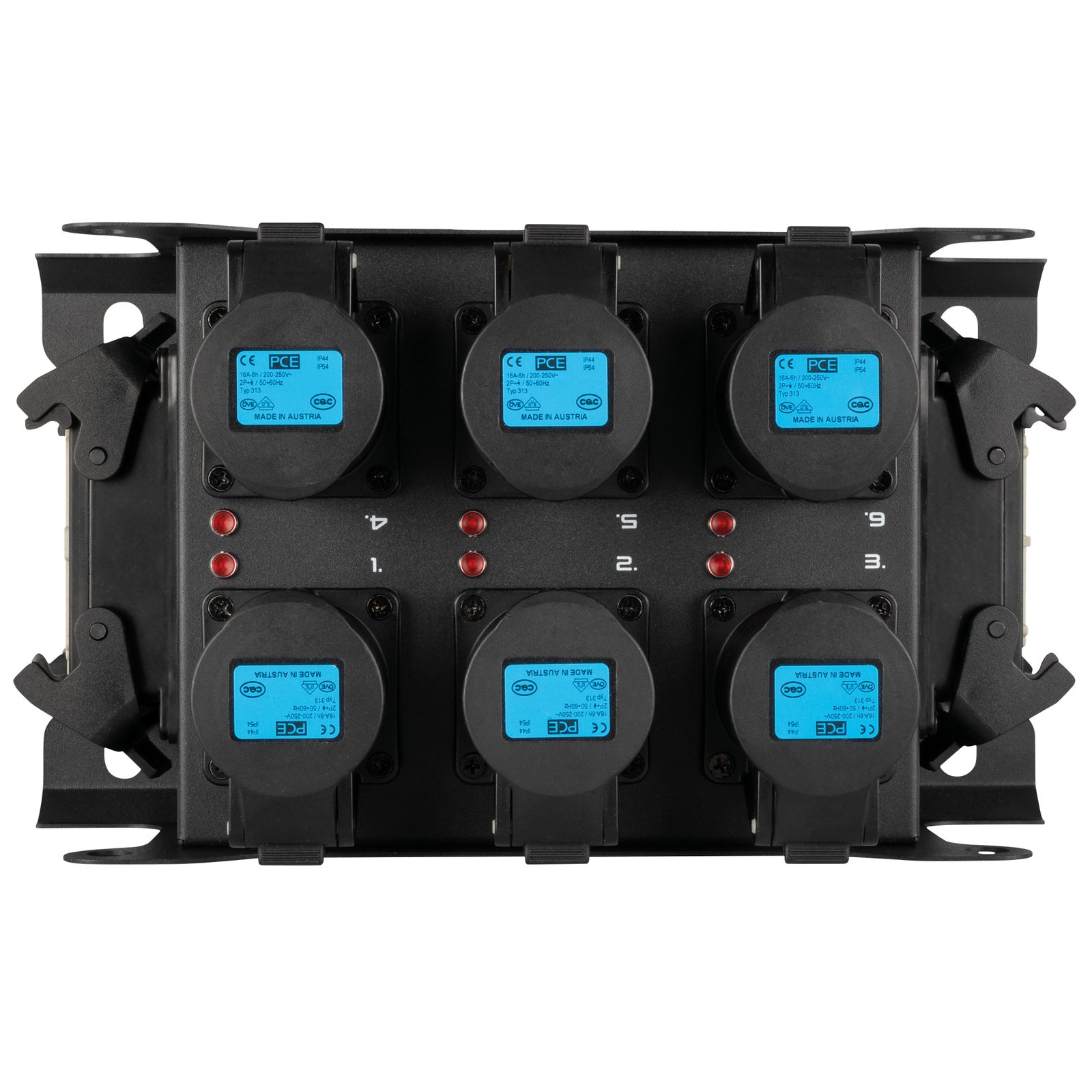

- Voltage indication LED on each output
- Compatible with Multipin H16 and Harting HAN16
- Quick-lock mounting option for easy installation
| Power Supply | 230 V AC 50/60 Hz |
|---|
| Rated Current (A) | 16 A |
|---|
| Power Connector In | Multipin H16 |
|---|
| Power Connector Out | CEE3P 16 A / Multipin H16 |
|---|
| Length (mm) | 310 mm |
|---|
| Height (mm) | 135 mm |
|---|
| Width (mm) | 175 mm |
|---|
| Weight | 3 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Material | Metal |
|---|
| Colour | Black |
|---|
| LED Indicators | Power |
|---|
| Maximum Ambient Temperature | 40 °C |
|---|
| Minimum Ambient Temperature | -5 °C |
|---|
| Mounting Options | Quick-Lock / Wall |
|---|
| Fixed Mounting Option | 11 mm |
|---|
| Safety Attachment | Yes |
|---|
