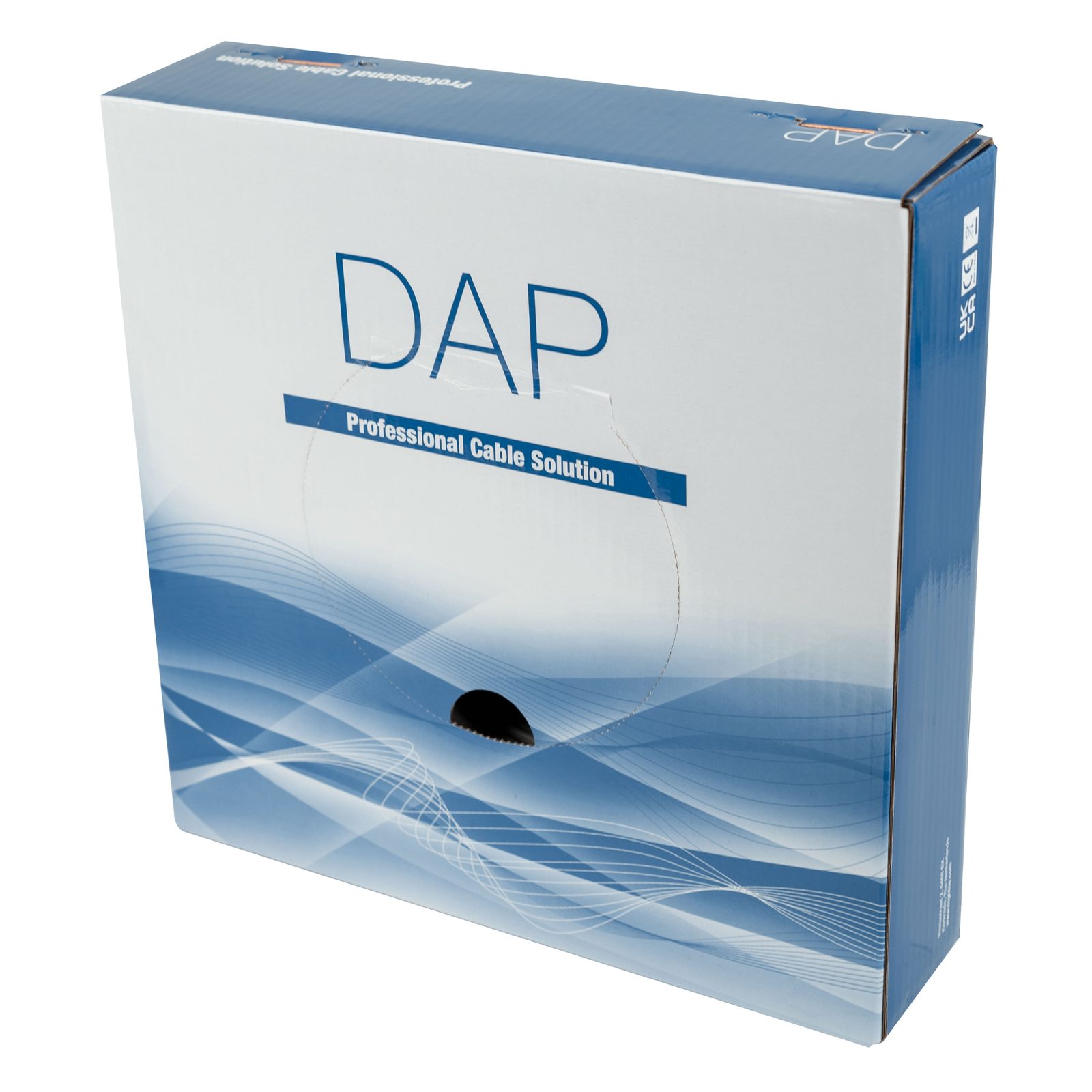

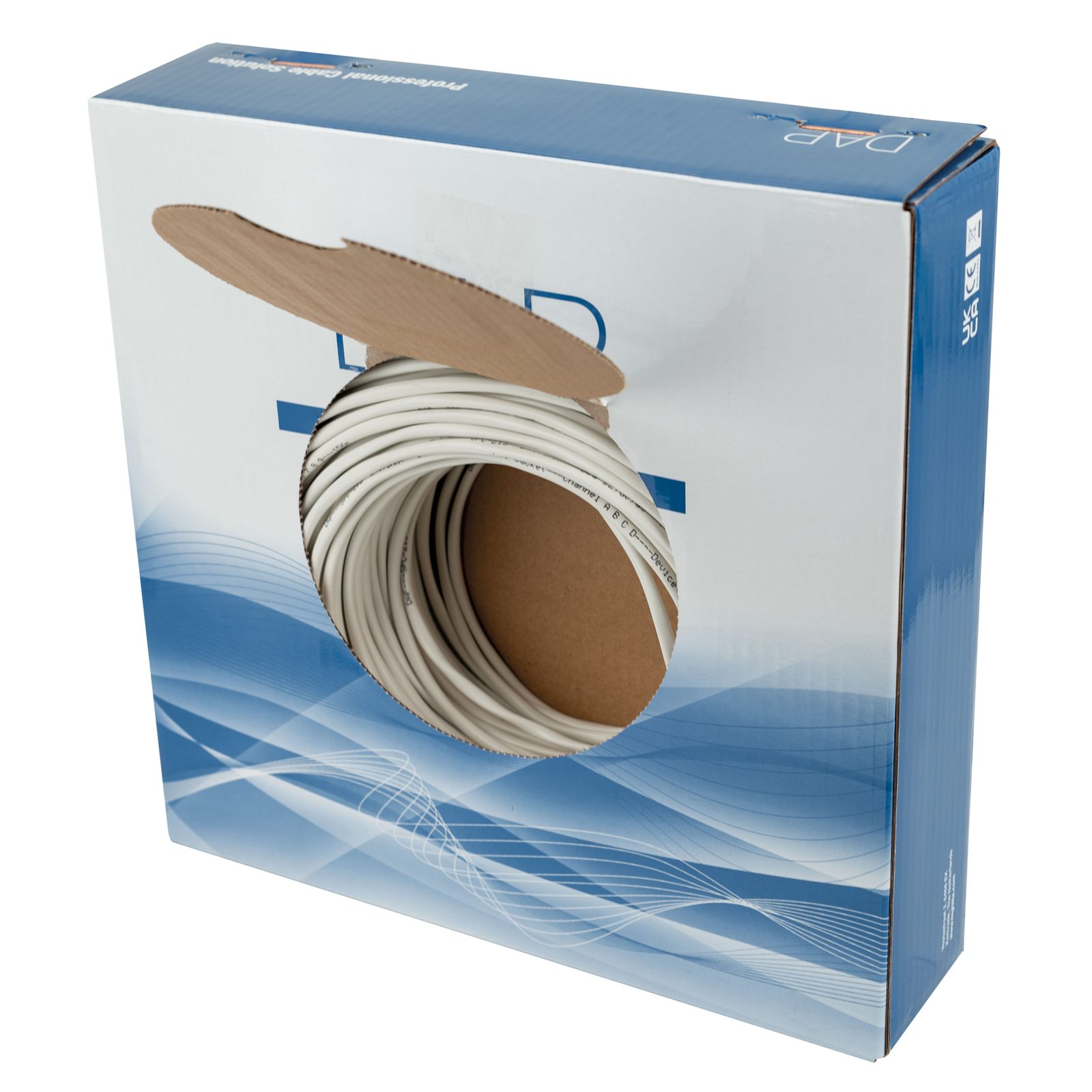

Cavo altoparlanti CPR 2x1.5mm² 100m bianco - DAP D9216
Cavo altoparlanti CPR 2x1.5mm² 100m bianco - DAP D9216
Cavo altoparlanti CPR 2x1.5mm² 100m bianco - DAP D9216

Cavo altoparlanti CPR 2x1.5mm² 100m bianco - DAP D9216

DAP
207,92 €
Tasse incluse
EN 50575 - 2x 1.5 mm² - 100 m on spool - white jacket
Condividi

The DAP SPC-215-DCA-s2-d0-a3 is a CPR-compliant speaker cable with a diameter of 1.5 mm². This cable does not only contribute to limiting the generation and spread of fire and smoke in buildings, but is also quite convenient for installers to work with due to its handy features like colour coding (left/right) and a meter indicator. The installer can easily see how much cable is left on the spool and how much has been used.

The SPC-215-DCA-s2-d0-a3 is a Euroclass Dca-s2,d0,a3 cable and can be ordered in two lengths: 100 and 300 meter, in either black or white.

  • 2-core audio speaker cable
  • Fire resistant properties in fixed installations
  • Reaction to fire: Dca s2,d0,a3
  • Colour coded
  • Metre indicator
  • Available in 100 m and 300 m
  • Available in black and white
Impedance85 Ω
On Spool or per metreOn Spool
Cable Length100 m
Conductor Resistance155 Ω/km
Conductor Capacitance23 pF/m
Maximum Wire Size1.5 mm²
Maximum Wire Size AWG16 AWG
Outer Cable Diameter5.6 mm
Outer Isolation Diameter4.8 mm
Outer Isolation TypePVC-LSZH
Weight5 kg
IP RatingIP20 (indoor use only)
MaterialPVC
ColourWhite
Insulation Resistance5 GΩ
CPR Euroclass CableYes
Conductors2
PackagingSpool
Maximum Ambient Temperature75 °C
Minimum Ambient Temperature-20 °C

  • Marca
  • Riferimento
    D9216
  • In magazzino
    10 Articoli
  • ean13
    8717748527370
