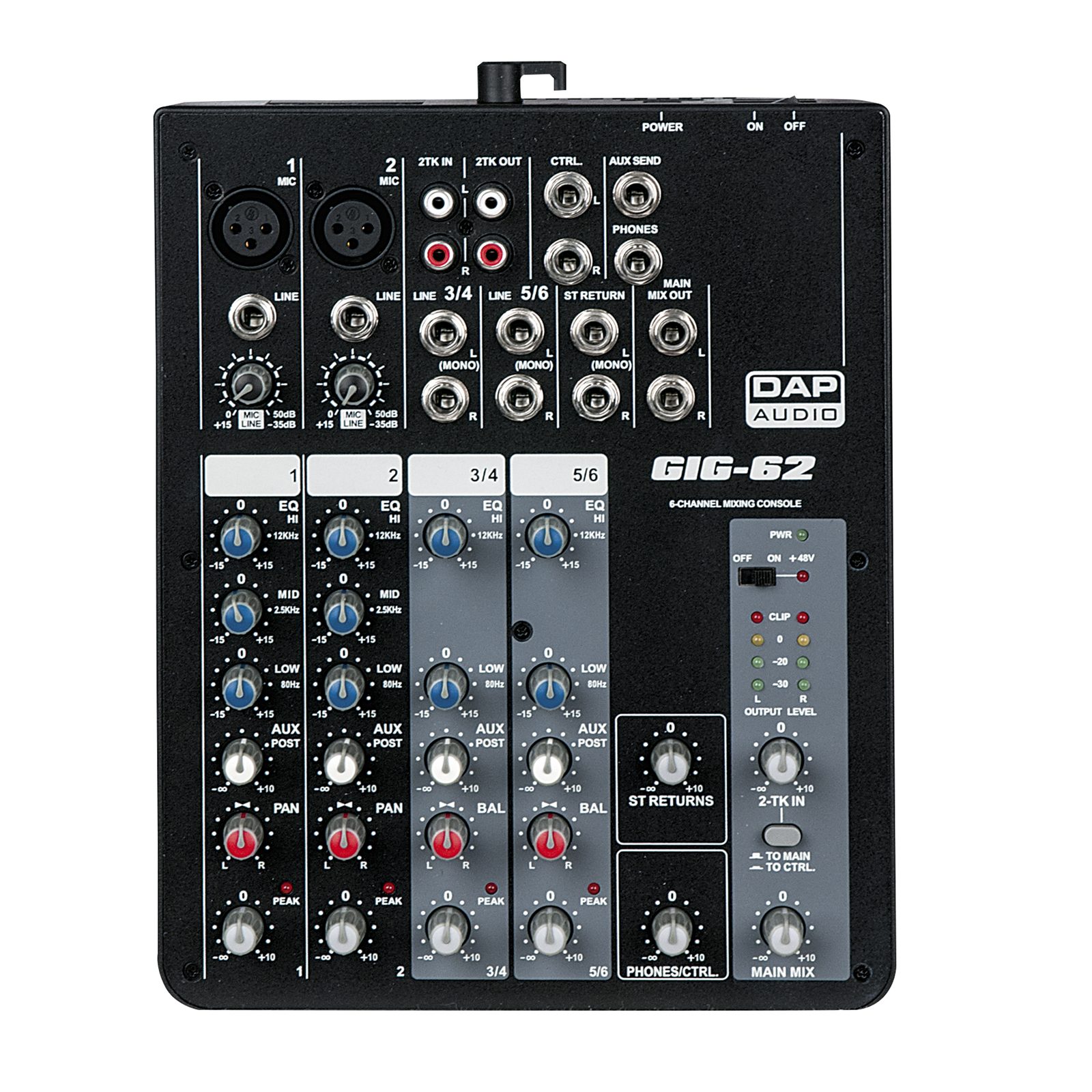

Mixer live 6 canali GIG-62 - DAP D2281
Mixer live 6 canali GIG-62 - DAP D2281

Mixer live 6 canali GIG-62 - DAP D2281

DAP
138,78 €
Tasse incluse
6-channel analogue mixer
Condividi

The DAP GIG-62 is a 6-channel live mixer with 2 stereo and 2 mono inputs including +48 V phantom power for connecting either dynamic and condenser microphones. The mono channels are equipped with 3-bands EQ and the stereo channels are equipped with 2-bands EQ. It is possible to add external effects per channel thanks to the AUX sends. This compact and low-noise mixer is very practical for small performances, conference rooms and home recordings.

  • Compact & lightweight design
  • Suitable for small performances, presentations and home recordings
  • 2x mono and 2x stereo input channels
  • +48 V phantom power suitable for dynamic and condenser mics
  • 3-bands EQ for mono and 2-bands EQ for stereo channels
  • Pan, balance, volume and gain control per channel & group
  • AUX-sends per channel for external effects and monitoring
Mono Inputs2
Mono Input Connector3-pin XLR / TRS balanced 6.3 mm
Mono Input Gain Range50 dB
Balanced Mono Input Sensitivity15 dBu
Stereo Inputs2
Stereo Input ConnectorTS unbalanced 6.3 mm
Stereo Input Gain Range50 dB
Unbalanced Stereo Input Sensitivity20 dBv
2-track Audio InputYes
Stereo Return InputYes
Main Outputs1
Main Output ConnectorTS unbalanced 6.3 mm
Auxiliary Outputs1
Auxiliary Output ConnectorTS unbalanced 6.3 mm
Control Room Output1
Control Room Output ConnectorTS unbalanced 6.3 mm
Headphone Output1
Headphone Output ConnectorTS unbalanced 6.3 mm
Audio InterfaceNo
Media PlayerNo
THD Level %< 0.03 %
Signal-to-noise Ratio> 100 dB
Signal-to-noise Ratio (Mic)> 100 dB
Signal-to-noise Ratio (Line)> 100 dB
Frequency Response Minimum22 Hz
Frequency Response Maximum22000 Hz
Phantom Power48 V
Parametric Channel Equalizer2 Bands
Input Channel Equalizer Gain Range15 dB
Input Channel Fixed Frequencies80, 12.000 Hz
Parametric Microphone Equalizer3 Bands
Microphone Input Fixed Frequencies80, 2.500, 12.000 Hz
BTNo
Power Supply240 V AC 50/60 Hz
Output voltage18 V AC
Power Consumption14 W
Power Connector InLow Voltage DC plug
Height (mm)60 mm
Width (mm)19.6 mm
Length (mm)244 mm
HousingPlastic
ColourBlack
Weight1.74 kg
IP RatingIP20 (indoor use only)
LED Indicators+48V / Clip / Output level / Power
Included AccessoriesAdapter

  • Marca
  • Riferimento
    D2281
  • In magazzino
    10 Articoli
  • ean13
    8717748331595
