Set Octostrip LED MKII 8 strisce RGB con controller e cavi 5m - Showtec 42232

Prezzo: 1.173,16 €
Tasse incluse
100 cm - section control
Condividi

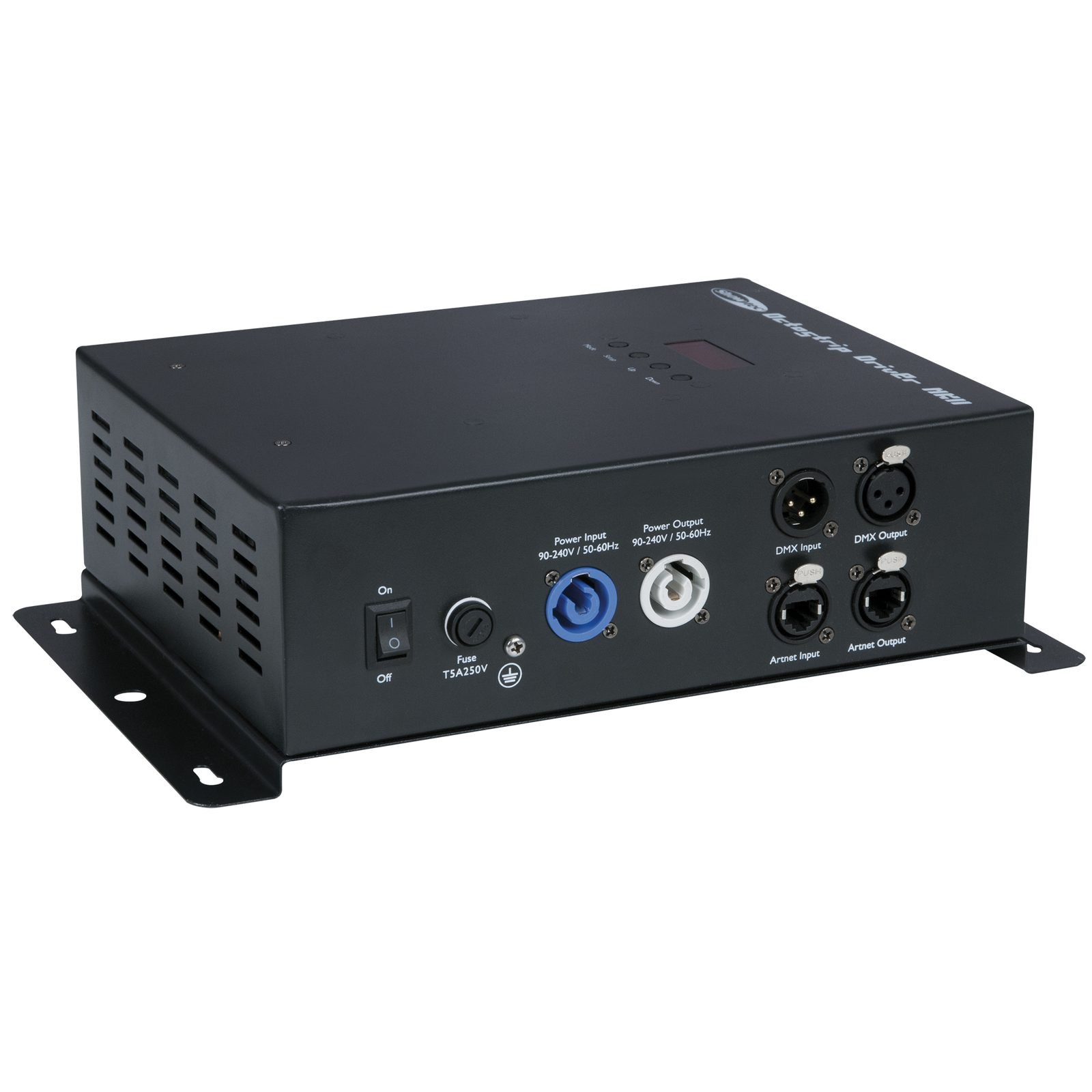

The LED Octostrip MKII is the successor of the popular Octostrip. It is a complete plug-and-play set; consisting of 8 LED strips, a controller and eight 5-metre long XLR extension cables. The new LED Octostrip MKII can control each strip’s 8 individual RGB sections, along with the corresponding dimmer and strobe settings. The controller supports Art-Net protocol, which facilitates the use of device while operating in the full RGB mode (192-Ch mode). It has updated colour presets and built-in colour flows for use of horizontal and vertical directions which are accessible via DMX (in 6-Ch, 8-Ch, 14-Ch, 24-Ch, 26-Ch, 50CH, 96-Ch, 112-Ch, 192-Ch, 208-Ch channel modes). Because of the exact same hardware design It is possible to combine the Octostrip MKI to the new Octostrip MKII in one stage. However, in such case, it is not advisable to operate the old and the new version of the device in Auto mode, as the built-in programs differ per version. The 6-Ch mode has the same DMX channel settings to control both sets in one setup.

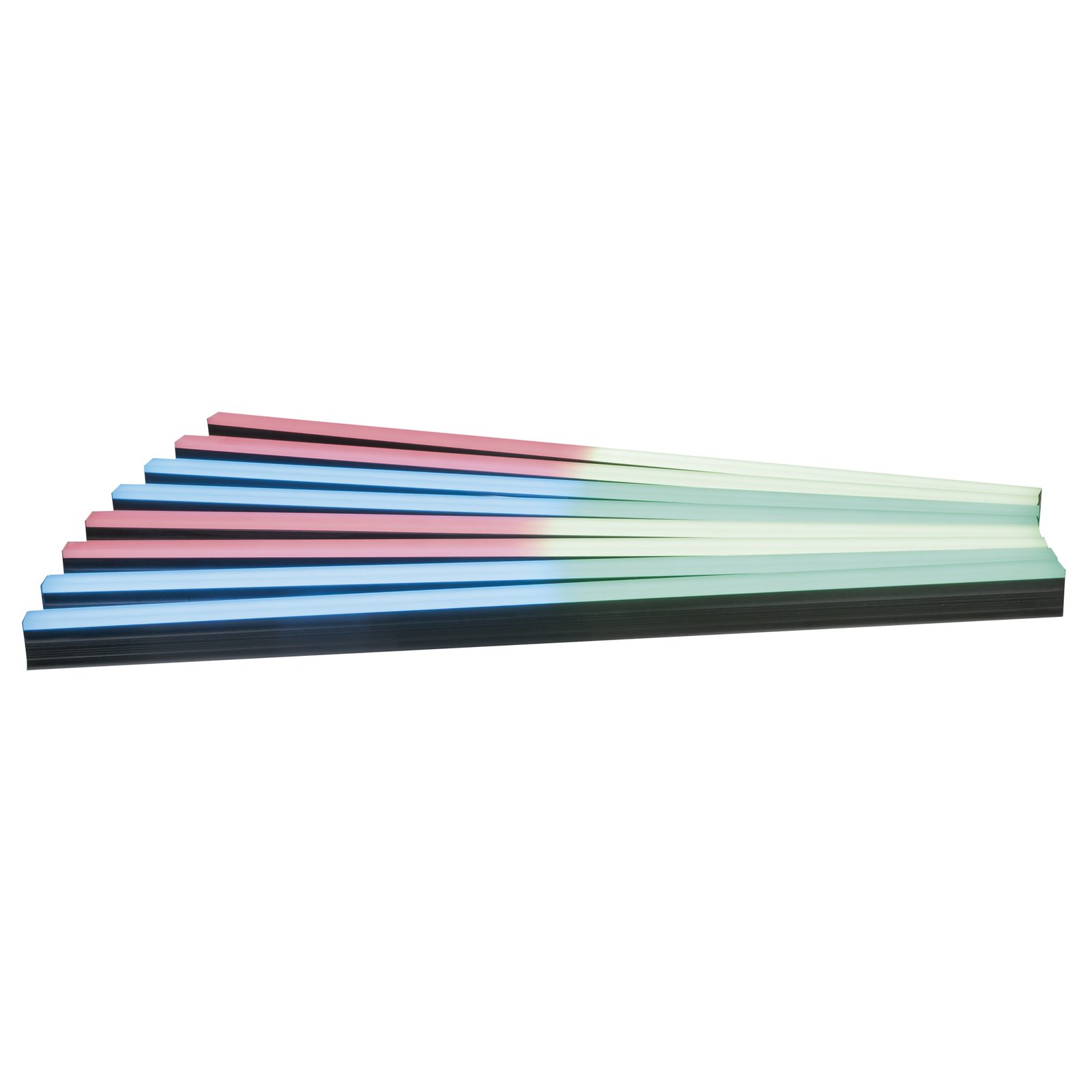

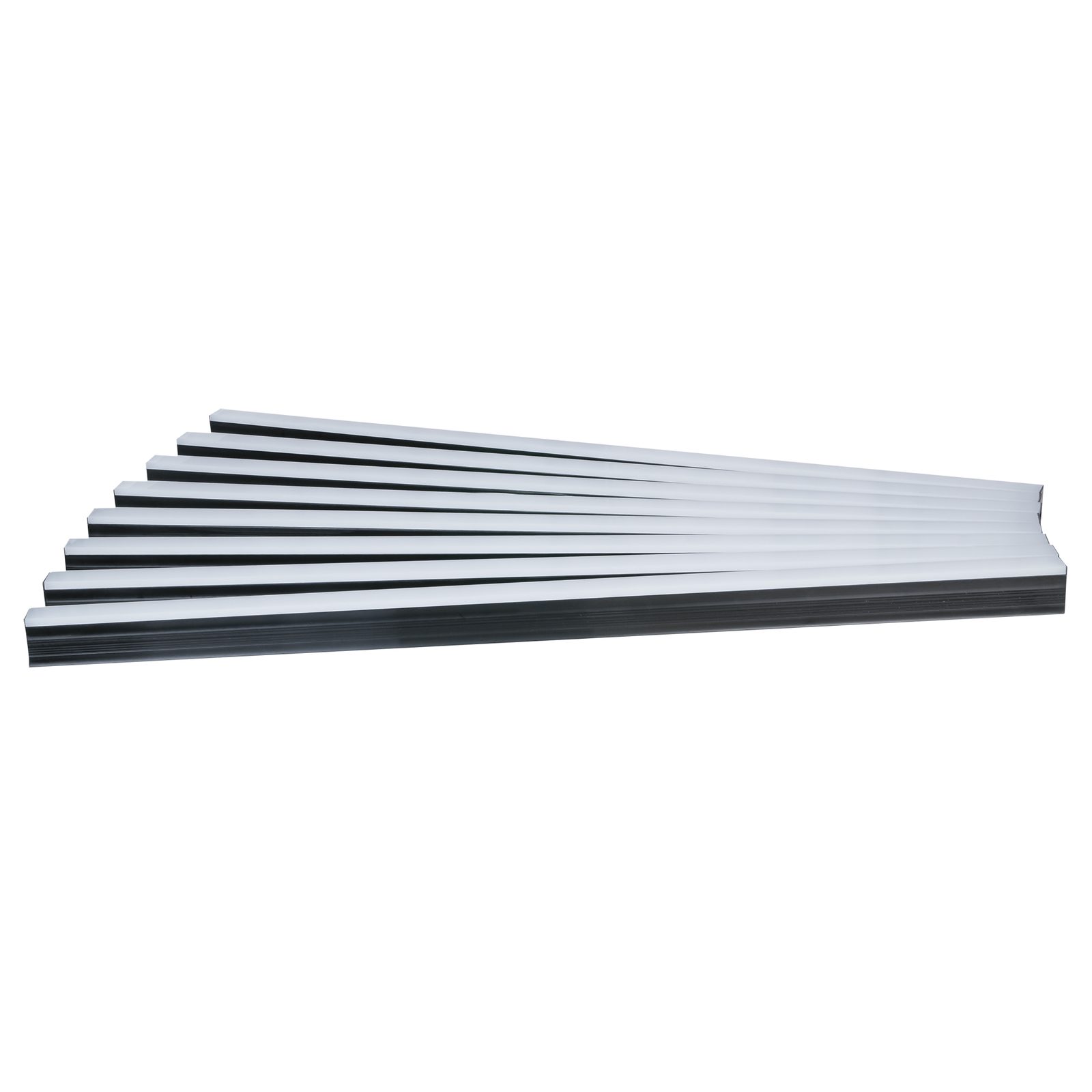

  • 8x 100 cm strips with 8 RGB Sections
  • 5 m extension cables included
  • DMX & Art-Net control
Light Source TypeLED
Light Source Power25 W
LED Colour TypeRGB
Dimmer0-100 %
Strobe0-20 Hz
Power Supply100-240 V AC 50/60 Hz
Power Consumption90 W
Power Connector InPower Pro Blue
Power Connector OutPower Pro Grey
DMX ConnectorXLR 3P In/Out
DMX Connector InXLR 3P
DMX Connector OutXLR 3P
Data ConnectoretherCON In/Out
Data Connector InetherCON
Data Connector OutetherCON
Height (mm)1025 mm
Width (mm)30 mm
Depth (mm)50 mm
Controller Height92 mm
Controller Width200 mm
Controller Length315 mm
Weight16.8 kg
Controller Weight2.5 kg
IP RatingIP20 (indoor use only)
HousingAluminium die-cast
ColourBlack
CoolingConvection/Axial fan
ThreadM10
Mounting OptionsBracket / Clamp / Quick-Lock / Sliding Profile
Safety AttachmentYes
Maximum Ambient Temperature40 °C
Included CablesPower Pro Cable / XLR 5P 5m
Included AccessoriesController
Included RiggingQuick-Lock Bracket
Control ModeAuto / Built-in Program / Manual / Master Slave / Sound
DMX Channels6 / 8 / 14 / 24 / 26 / 50 / 192 / 208
ProtocolsArt-Net / DMX
DisplayLCD
Zone Control (Sections)8

  • Marca
  • Riferimento
    42232
  • In magazzino
    10 Articoli
  • ean13
    8717748414069
