Interfaccia audio USB stereo 2 canali XLR - DAP SC-20 D1529
The DAP Pro Audio Solutions are a complete line-up of audio tools for the professional musician or audio engineer. It is a series of audio modifying tools like mini-mixers, pre-amps and converters available in active or passive models. All audio solutions are designed to meet the highest stage and audio demands and feature a metal road proof housing with rubber feet and easy accessible controls. The units also have a small footprint which make them ideal to be used and placed in any environment where space is critical.

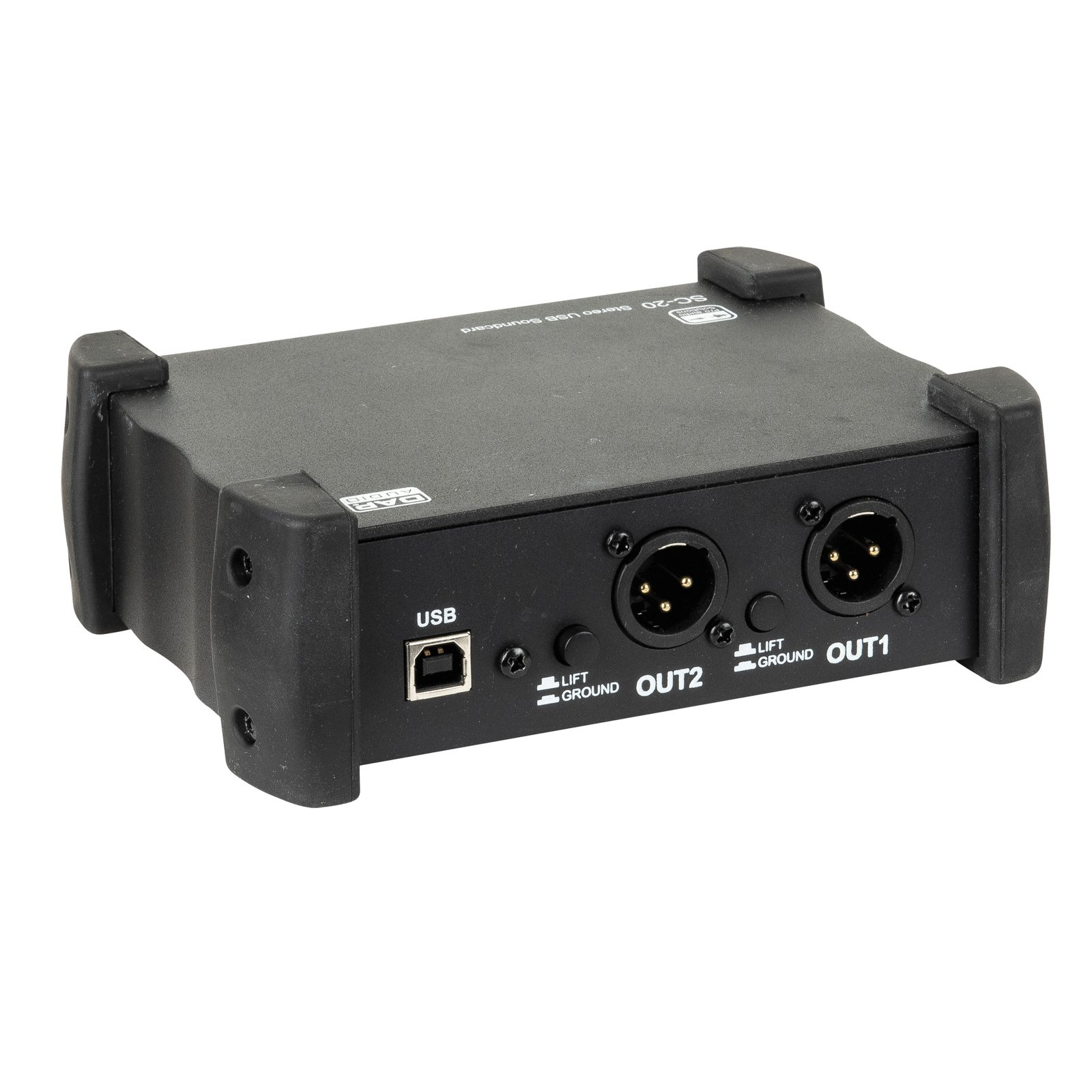

The DAP SC-20 Stereo USB Soundcard is an easy-to-use 2-channel USB-Audio interface with XLR and (mini)jack headphone output, suitable for sending a stereo PC / MAC audio signal to a mixer, speaker set or other audio device. The device is directly powered by its USB-Connection and needs no additional power supply or driver installation. The SC-20 is equipped with a low-noise preamp for a clear and clean sound and manually adjustable headphone and XLR-output volume.
- 2-channel USB-Audio interface
- Suitable for PC and MAC
- Low-noise preamp
- XLR and (mini)jack headphone output
- USB-powered / no additional power supply
- No driver installation needed
| Mono Inputs | 0 |
|---|---|
| Main Outputs | 2 |
| Main Output Connector | 3-pin XLR |
| Headphone Output | 2 |
| Headphone Output Connector | TRS balanced 3.5 mm / TS unbalanced 6.3 mm |
| Frequency Response Minimum | 20 Hz |
| Frequency Response Maximum | 20000 Hz |
| Supported Operating Systems | Mac / Windows |
| DSP | Yes |
| User Presets | No |
| User Presets Capacity | 0 |
| Power Supply | 5 V DC |
| Power Consumption | 1 W |
| Power Connector In | USB |
| Data Connector In | USB |
| Height (mm) | 53 mm |
| Width (mm) | 134 mm |
| Length (mm) | 157 mm |
| LED Indicators | Power |
| Housing | Aluminium / Iron |
| Colour | Black |
| Finish | Painted |
| Weight | 0.678 kg |
| IP Rating | IP20 (indoor use only) |

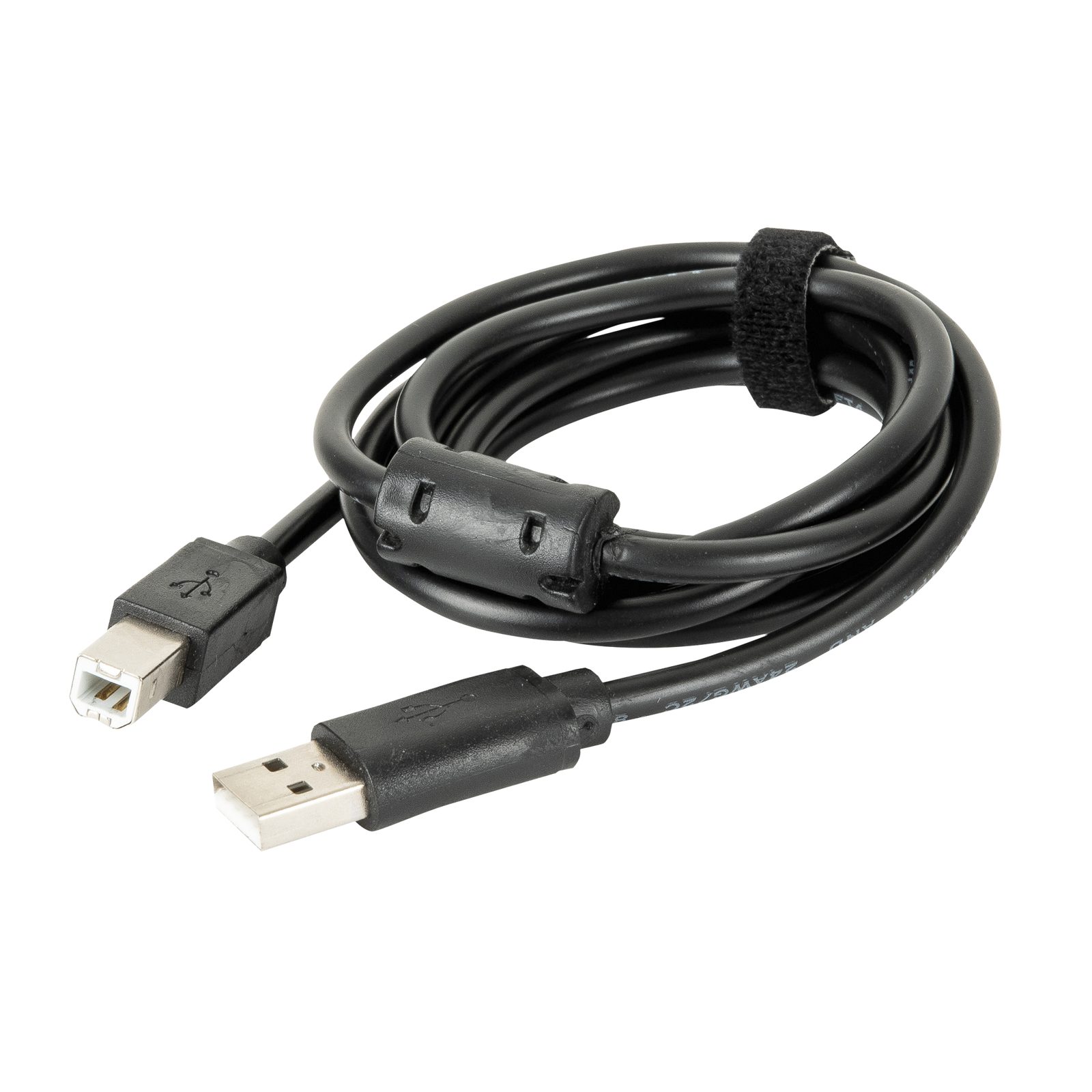

| Included Cables | USB-A - USB-B cable |
