Ricevitore UHF true diversity 1 canale 193 freq. 614-638 MHz - DAP D145061B
Ricevitore UHF true diversity 1 canale 193 freq. 614-638 MHz - DAP D145061B
Ricevitore UHF true diversity 1 canale 193 freq. 614-638 MHz - DAP D145061B

Ricevitore UHF true diversity 1 canale 193 freq. 614-638 MHz - DAP D145061B

DAP
255,29 €
Tasse incluse
1 Channel 193 Freq. PLL Receiver 614-638 MHz
Non disponibile
Condividi

Avvisami quando disponibile

Sei interessato a questo prodotto? Inviaci un'email e ti faremo sapere quando sarà disponibile per l'ordine.

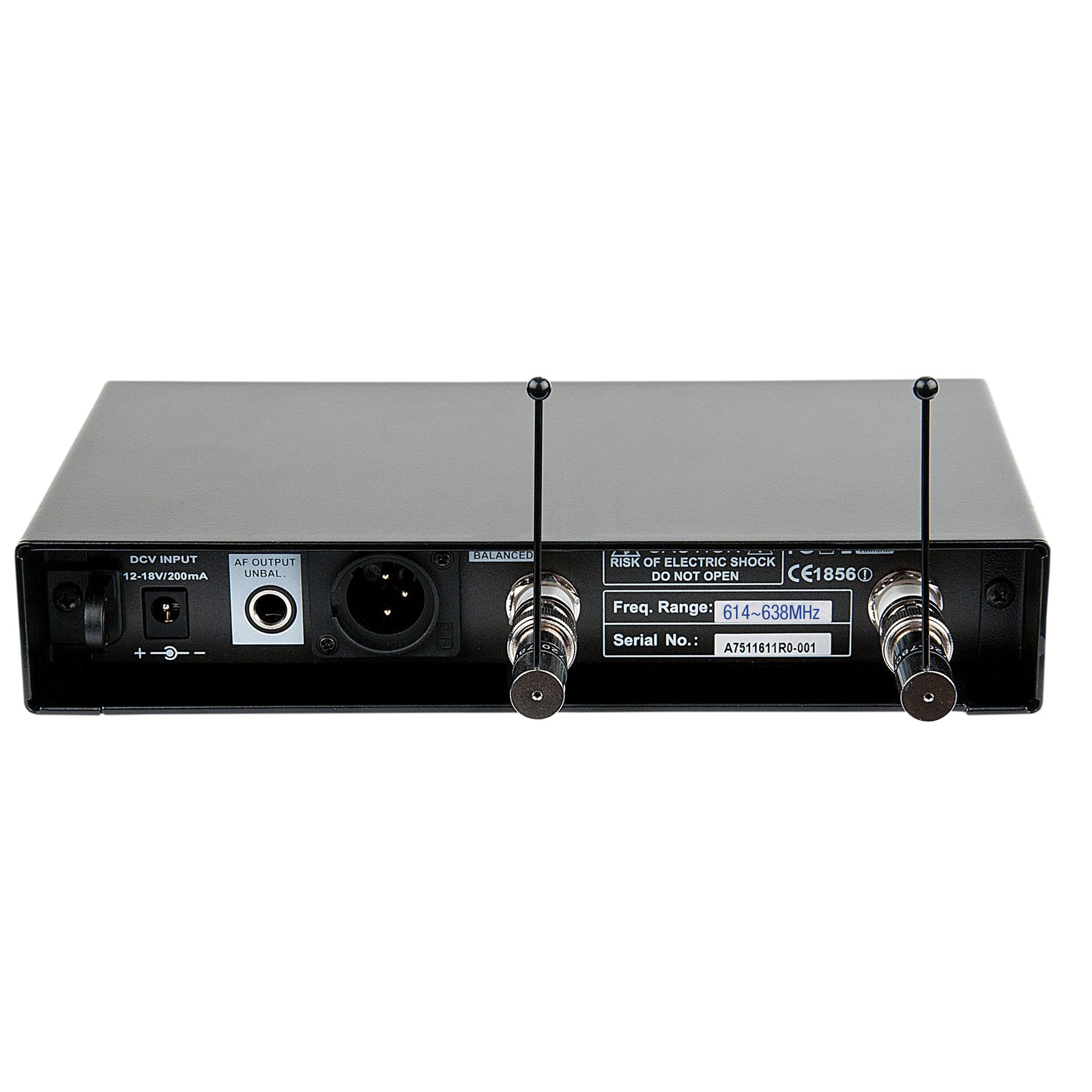

The DAP ER-1193 is an one channel true diversity receiver. It has a clear display with all important information directly on screen. It can be used in combination with the DAP EM-193 handheld or EB-193 beltpack. The lock functionality avoids accidental modification of frequency sensitivity or power-off. It has a half rack metal housing which makes it possible to mount 2 receivers in 1HE with the optional rack mount adapter D1453.

  • 193 selectable frequencies
  • True diversity, minimum dropouts
  • PLL synthesised technology
  • Compact half-rack metal housing
  • Lock functionality
  • Designed for EM-193 / EB-193
Wireless Audio Frequency Start614 MHz
Wireless Audio Frequency End638 MHz
RF Frequency Stability0.005 %
RF Bandwidth24 MHz
Signal-to-noise Ratio> 100 dB
Frequency Response Minimum50 Hz
Frequency Response Maximum16000 Hz
RF Antenna Inputs2
RF Antenna Input ConnectionBNC
Microphone Output1
Microphone Output Connection3-pin XLR / TS unbalanced 6.3 mm
Audio Output Nominal Level12 dB
Receiver Output Impedance600 Ω
Channels193
DisplayLCD
Receiver TypeSingle Receiver
Power Supply100-240 V AC 50/60 Hz
Output voltage12 V DC
Power Consumption1.6 W
Power Connector InLow Voltage DC plug
Height (mm)40 mm
Width (mm)152 mm
Length (mm)211 mm
Installation Depth (Excl. Connector)152 mm
Flightcase SizeOptional 19''
Rack Units1 U
HousingAluminium
Weight1.07 kg
ColourBlack
Included CablesTRS unbalanced 6.3 mm - TRS unbalanced 6.3 mm

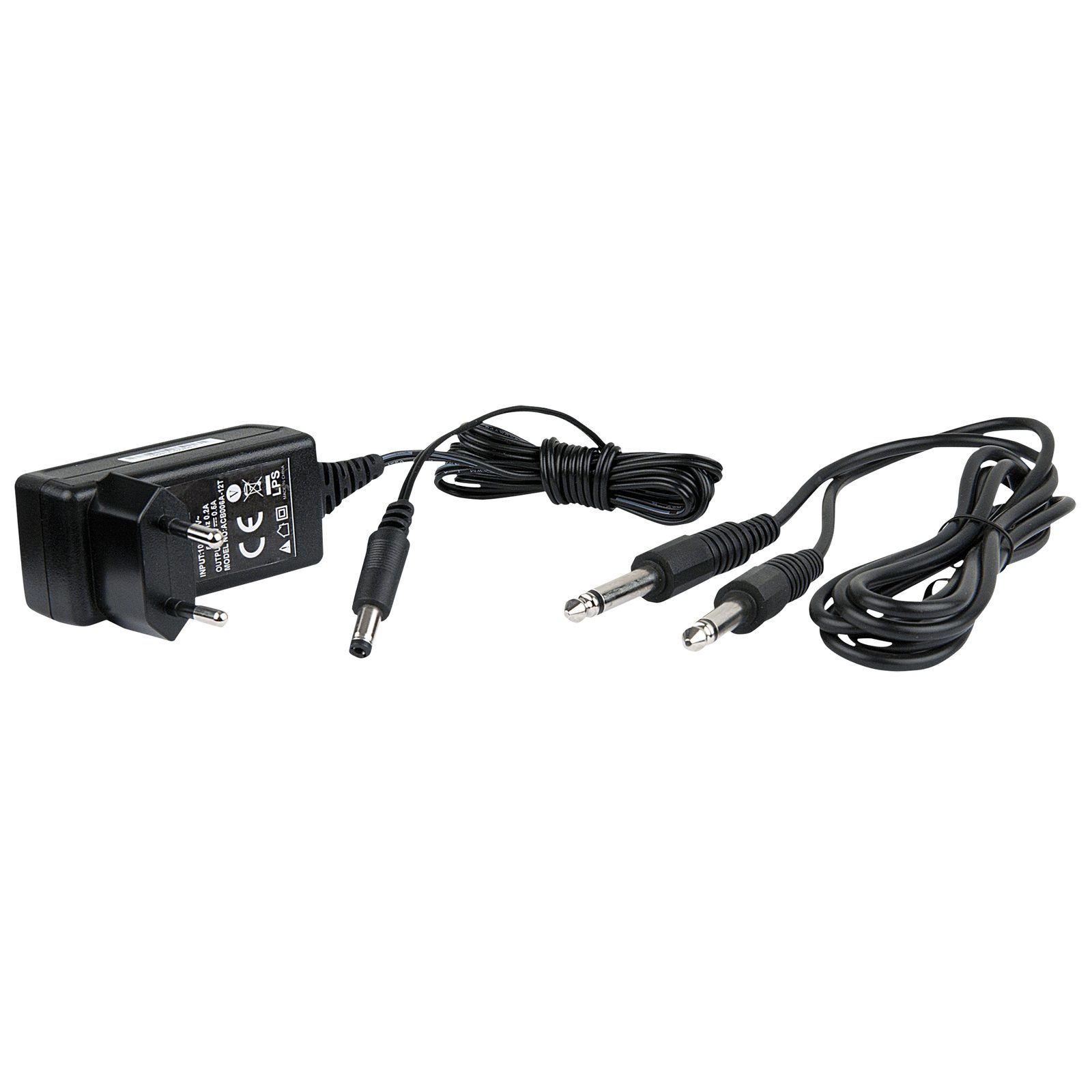

Included AccessoriesAdapter / RF antenna

  • Marca
  • Riferimento
    D145061B
  • ean13
    8717748316394
