Connettore XLR 5P In/Out Combination Chassis IP65 contatti oro - SEETRONIC C5F2CWB

Connettore XLR 5P In/Out Combination Chassis IP65 contatti oro - SEETRONIC C5F2CWB

Name: Connettore XLR 5P In/Out Combination Chassis IP65 contatti oro - SEETRONIC C5F2CWB
Brand: SEETRONIC
SKU: C5F2CWB
Price: 11.31 EUR
Availability: InStock

SEETRONIC

11,31 €

Tasse incluse

IP65 - gold contacts

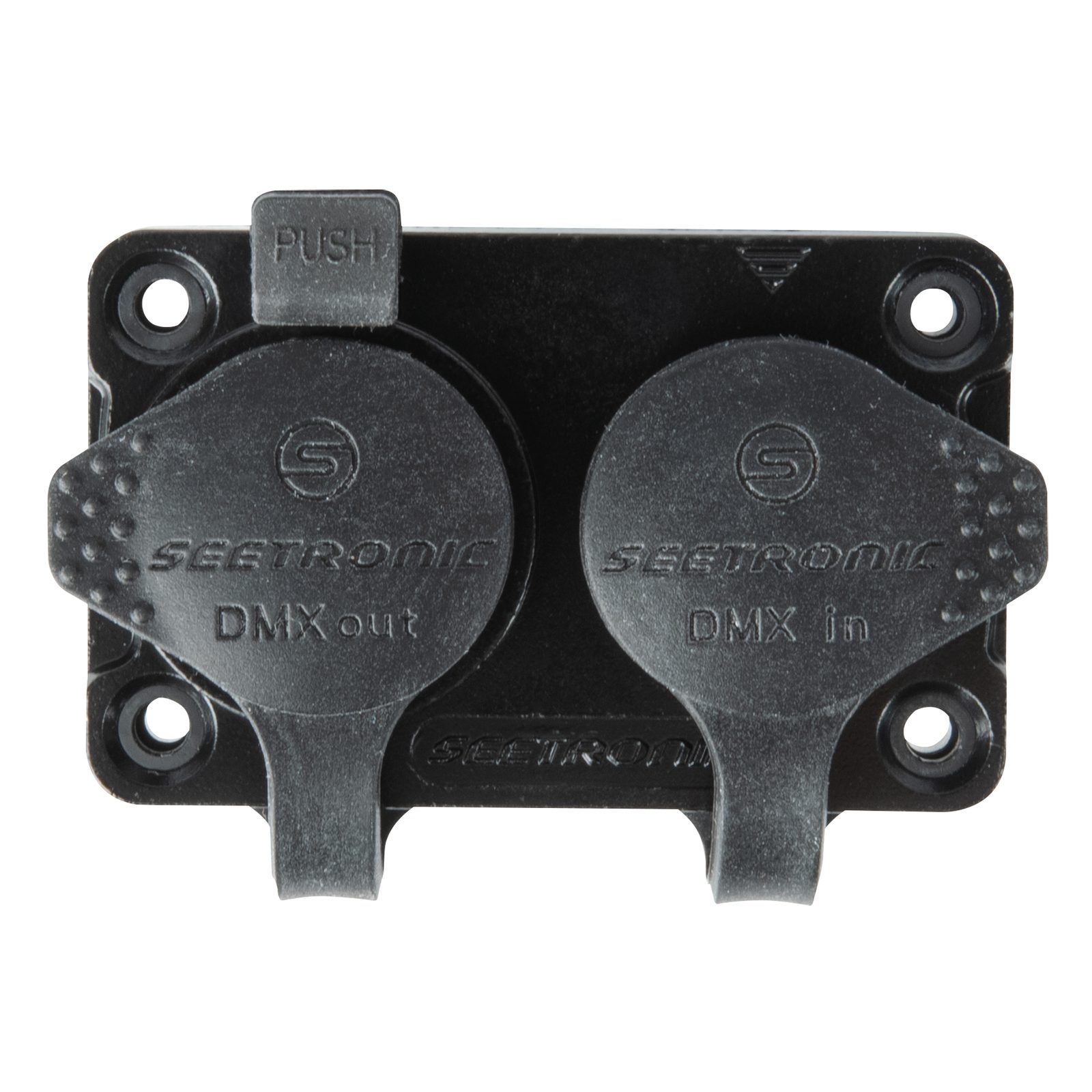

This 5-pin XLR In/Output Combination Chassis is a locking XLR dual combination connector with gold-plated contacts. It comes with a sealing cap and is rated IP65 when the sealing cap is closed or when a corresponding IP65-rated XLR connector is inserted.

IP65 rating with closed sealing cap or mated with IP65-rated XLR connectors

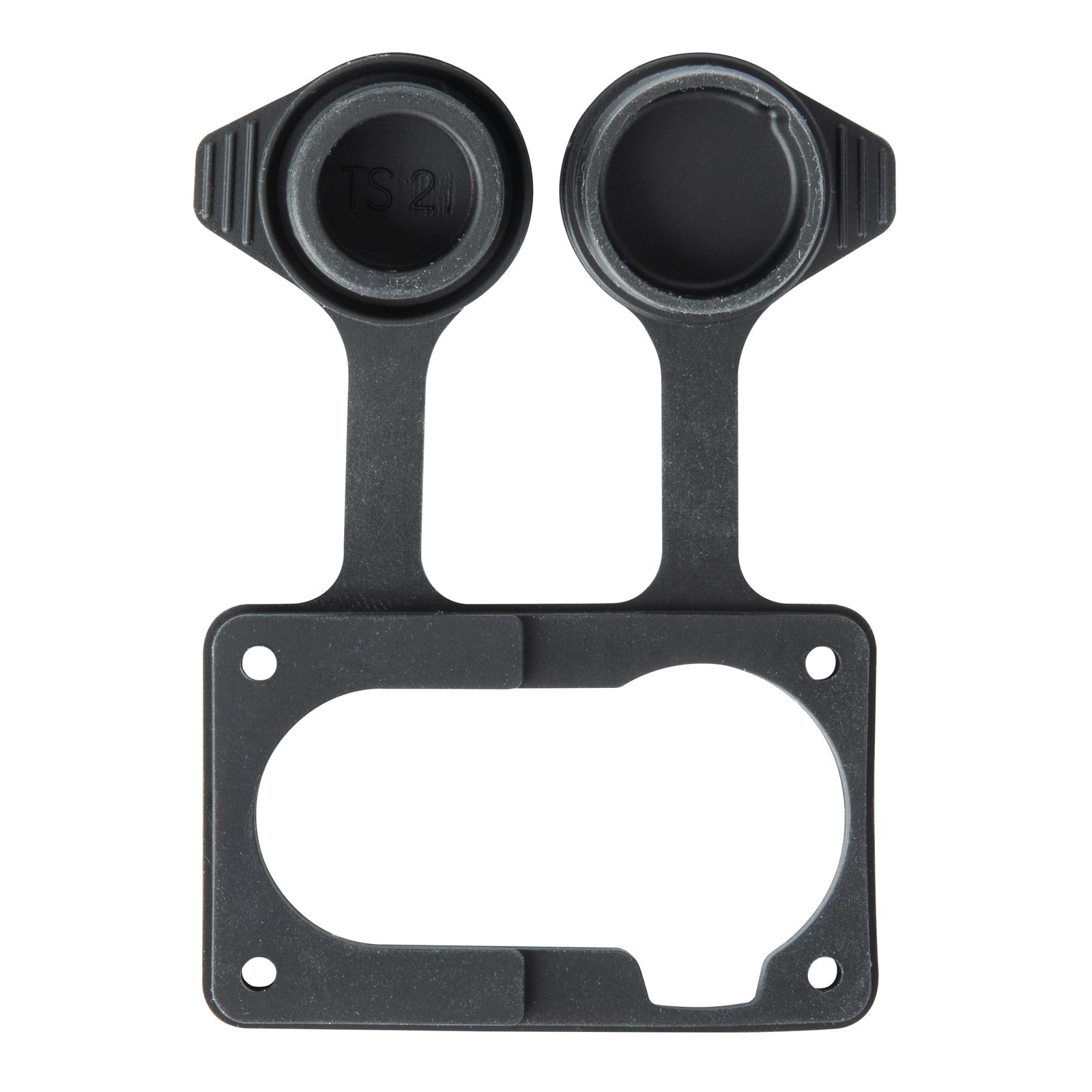

Includes protective cap with seal
Gold-plated contacts

Rated Current (A)	16 A
Brand Connector 1	Seetronic
Pins	5
PCB Mount	No
Length (mm)	50 mm
Height (mm)	33.1 mm
Width (mm)	52.8 mm
Weight	0.01 kg
IP Rating	IP65 Front
Housing	Zinc
Colour	Black
Bushing Colour	Black
Contact Resistance	5 < mΩ
Pin Connection	Solder
Locking Device	Latch
Contact Type	Gold plated
Maximum Ambient Temperature	-30 °C
Minimum Ambient Temperature	80 °C
