Combinazione XLR 3P Ingresso/Uscita IP65 Nero con Cappuccio - Seetronic C3F2CWB

Combinazione XLR 3P Ingresso/Uscita IP65 Nero con Cappuccio - Seetronic C3F2CWB

Name: Combinazione XLR 3P Ingresso/Uscita IP65 Nero con Cappuccio - Seetronic C3F2CWB
Brand: SEETRONIC
SKU: C3F2CWB
Price: 9.24 EUR
Availability: InStock

SEETRONIC

9,24 €

Tasse incluse

IP65 - gold contacts

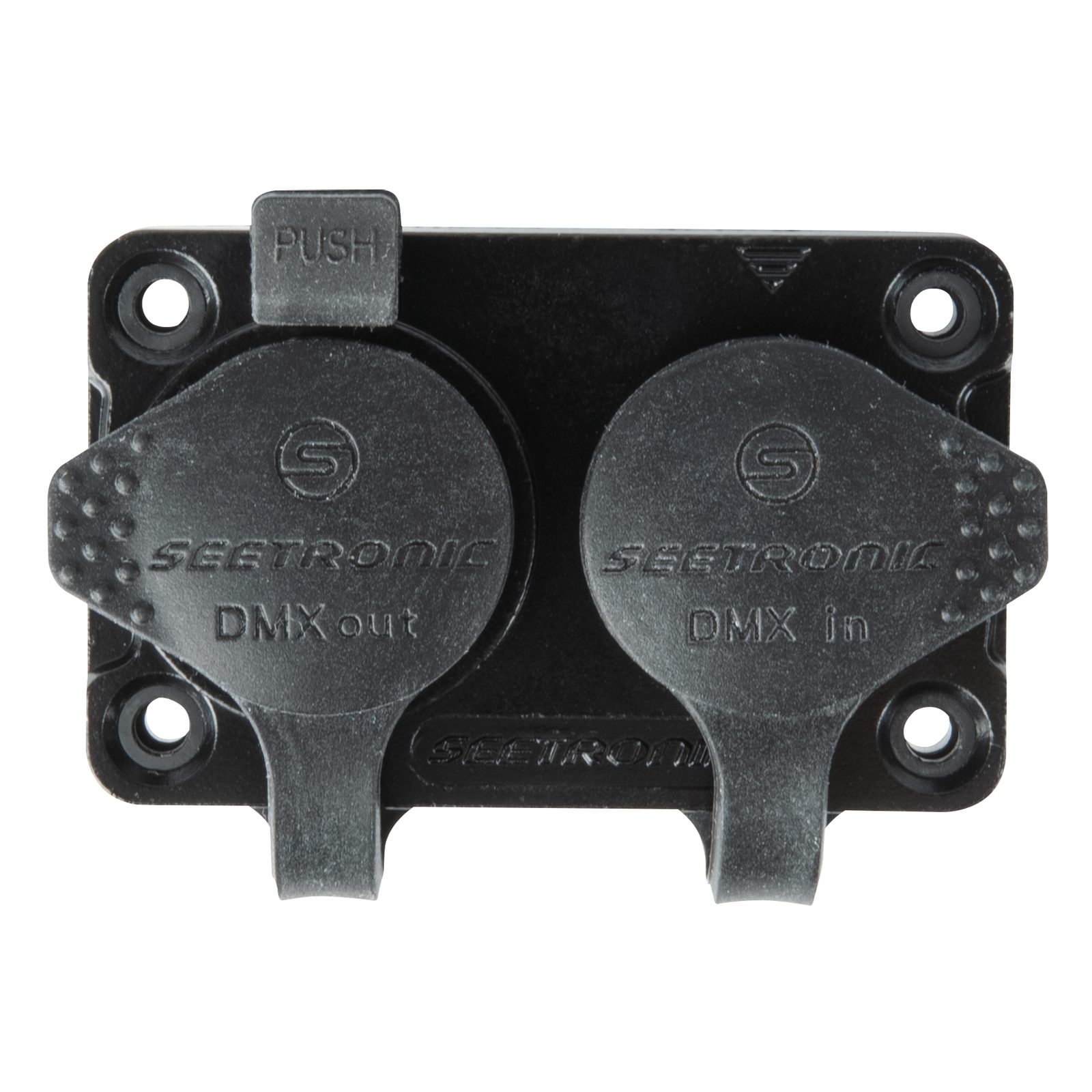

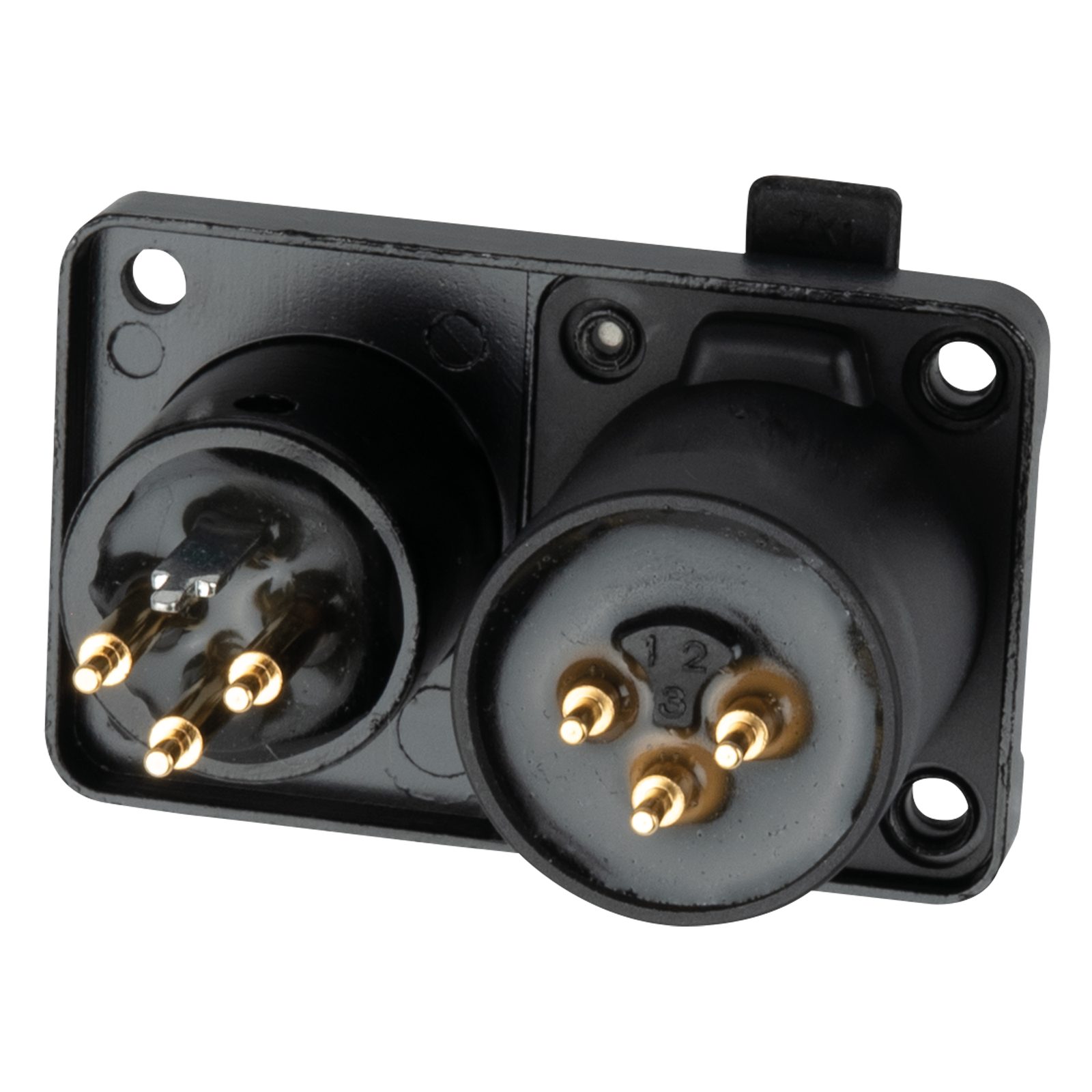

This 3-pin XLR In/Output Combination Chassis is a locking XLR dual combination connector with gold-plated contacts. It comes with a sealing cap and is rated IP65 when the sealing cap is closed or when a corresponding IP65-rated XLR connector is inserted.

IP65 rating with closed sealing cap or mated with IP65-rated XLR connectors

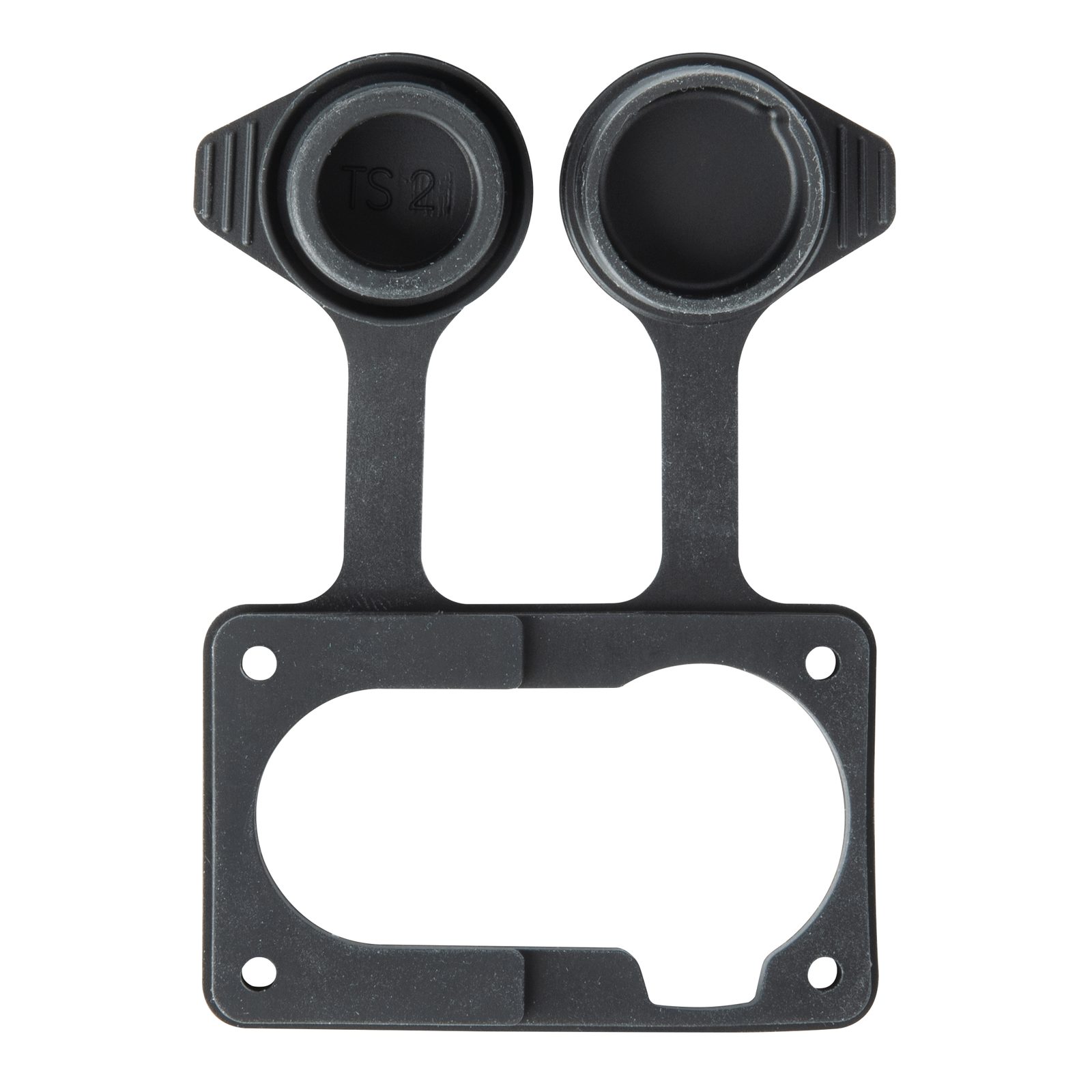

Includes protective cap with seal
Gold-plated contacts

Rated Current (A)	16 A
Brand Connector 1	Seetronic
Pins	3
PCB Mount	No
Length (mm)	50 mm
Height (mm)	33.1 mm
Width (mm)	52.8 mm
Weight	0.01 kg
IP Rating	IP65 Front
Housing	Zinc
Colour	Black
Contact Resistance	5 < mΩ
Pin Connection	Solder
Locking Device	Latch
Contact Type	Gold plated
Maximum Ambient Temperature	-30 °C
Minimum Ambient Temperature	80 °C
