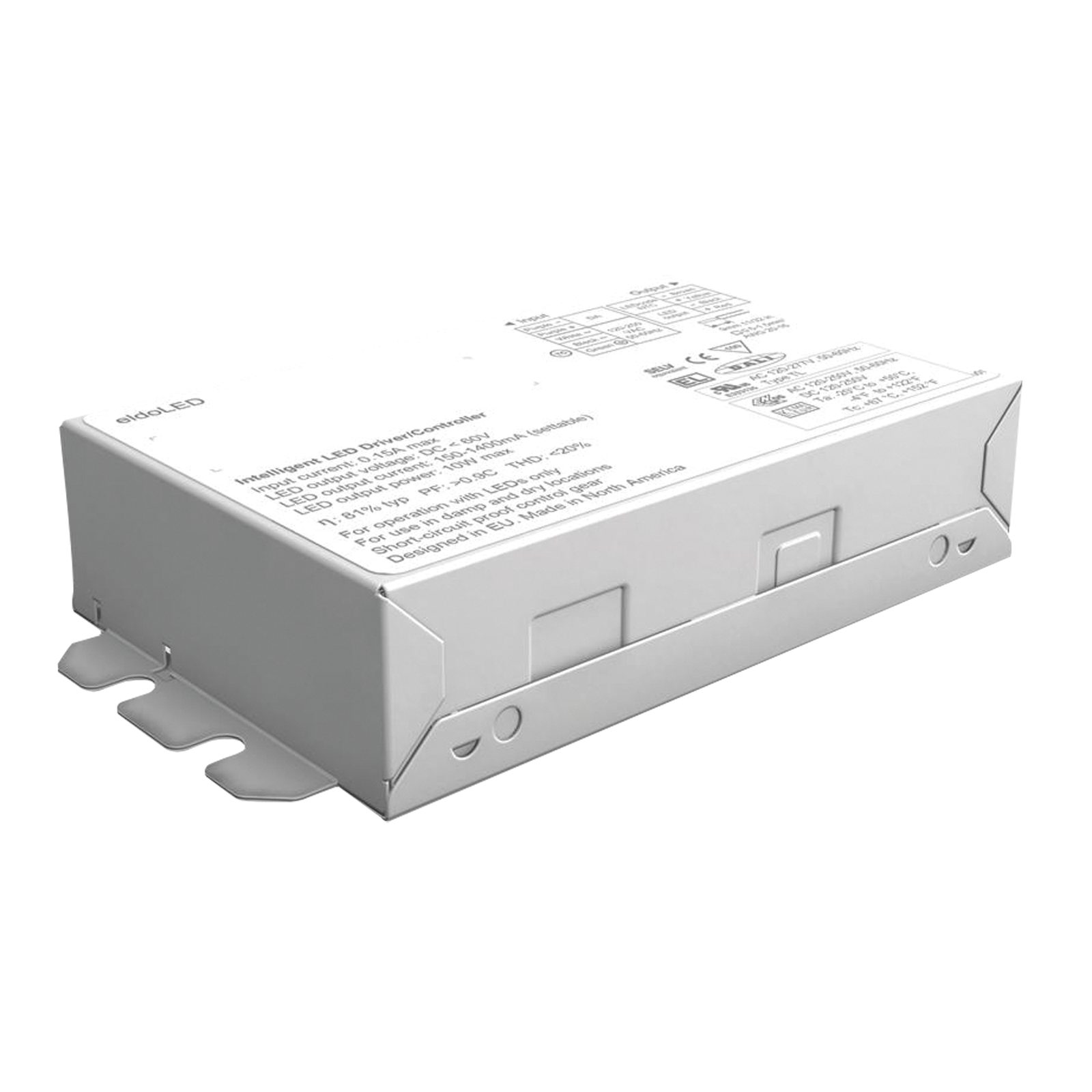

Driver LED ECOdrive AC 50 W DALI-2 Dimmerabile - ELDOLED A9950573

Prezzo: 52,08 €
Tasse incluse
Constant Current - 560/S - DALI - 1 Output - ECO560/S4
Condividi

ECOdrive AC - 50 W delivers 50 W into a single output channel and is DALI-2 certified. It provides smooth, flicker-free dimming down to 1% via DALI, 0-10V and LEDcode2. It has a universal input voltage range, low inrush current and THD, high power factor and high efficiency. Its Hybrid HydraDrive technology makes it suitable for TV studios and security camera applications. Pulse dimming features allow different switching and dimming functions to be accessed by pressing and holding the mains switch.

  • Hybrid HydraDrive provides smooth, flicker-free dimming down to 1 %
  • LEDcode2 supports several digital accessories and IoT applications
  • NTC interface for robust thermal management
  • Increase performance and capability of any LED fixture
  • Trusted brand with proven track record of performance and reliability
Control ModeDALI
DALI Ballast1 control channel
ProtocolsDALI 2
DimmableYes
Power Supply100-240 V AC 50/60 Hz
Output Voltage Vf/Vo Minimum2 V DC
Output Voltage Vf/Vo Maximum55 V DC
Power Consumption50 W
Minimum Output Current (mA)150 mA
Maximum Output Current (mA)1400 mA
Power Connector InOpen End
Power Connector OutOpen End
Data Connector InOpen End
Data Connector OutOpen End
Length (mm)153 mm
Height (mm)31 mm
Width (mm)76 mm
Weight0.372 kg
IP RatingIP20 (indoor use only)
MaterialMetal
HousingMetal / Plastic
ColourWhite
Maximum Ambient Temperature50 °C
Minimum Ambient Temperature-20 °C
Included AccessoriesNone
BTNo

  • Marca
  • Riferimento
    A9950573
  • In magazzino
    10 Articoli
  • ean13
    8717748532923
