Driver LED 100W 4 canali DALI DMX dissolvenza - Eldoled A9950055

Driver LED 100W 4 canali DALI DMX dissolvenza - Eldoled A9950055

Name: Driver LED 100W 4 canali DALI DMX dissolvenza - Eldoled A9950055
Brand: ELDOLED
SKU: A9950055
Price: 251.63 EUR
Availability: InStock

ELDOLED

251,63 €

Tasse incluse

Constant Voltage - DMX/DALI - 4 Channels, 4 Outputs - LIN100A1

100 W Dimmable LED Driver

LED dimming made beautiful. eldoLED drivers excel in smooth, flicker-free dimming and dim down all the way to 0.1 %. Specially made for a DALI environment!

Configure to suit your application.

You can change the driver's configuration to perfectly fit your application's requirements.

Exact current output values and dimming related settings.

LEDcode enables seamless integration of time motion, and brightness based intelligence for maximum energy and operational efficiency.

Hybrid HydraDrive provides smooth, flicker-free dimming down to 1 %
Tunable dynamic response
LEDcode supports most constant voltage LED modules and arrays

Control Mode	DALI / DMX
DMX Channels	4
DALI Ballast	4 control channel
Protocols	DALI / DMX
Dimmable	Yes
Power Supply	100-240 V AC 50/60 Hz
Power Consumption	100 W
Output Current per Channel 12 V DC	2.08 A
Output Current per Channel 24 V DC	1 A
Power Connector In	Open End
Power Connector Out	Open End
DMX Connector In	Open end
DMX Connector Out	Open end
Data Connector In	Open End
Data Connector Out	Open End

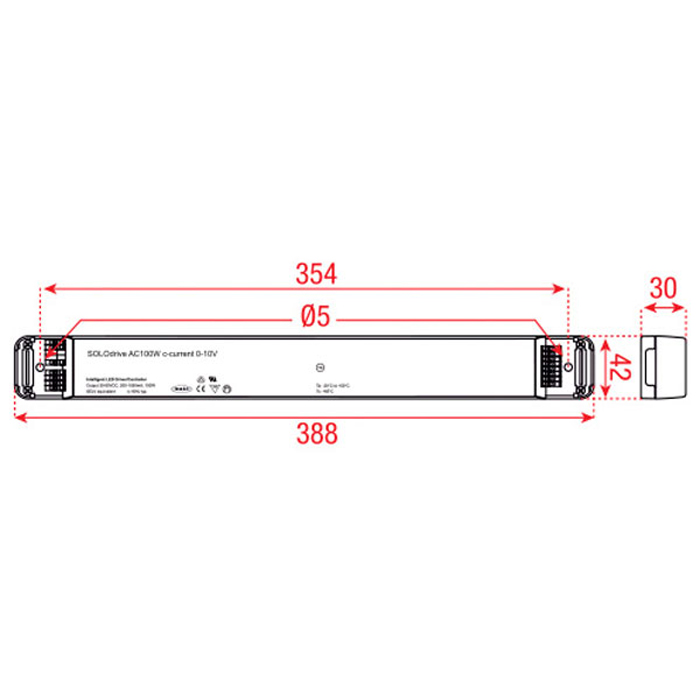

Length (mm)	388 mm
Height (mm)	30 mm
Width (mm)	45 mm
Weight	0.705 kg
IP Rating	IP20 (indoor use only)
Material	Metal
Housing	Metal
Colour	Black
Maximum Ambient Temperature	50 °C
Minimum Ambient Temperature	-40 °C
Included Accessories	None
BT	No
