ECOdrive DC 45W RGB(W) Controller DMX - Eldoled A9950032

ECOdrive DC 45W RGB(W) Controller DMX - Eldoled A9950032

Name: ECOdrive DC 45W RGB(W) Controller DMX - Eldoled A9950032
Brand: ELDOLED
SKU: A9950032
Price: 115.13 EUR
Availability: InStock

ELDOLED

115,13 €

Tasse incluse

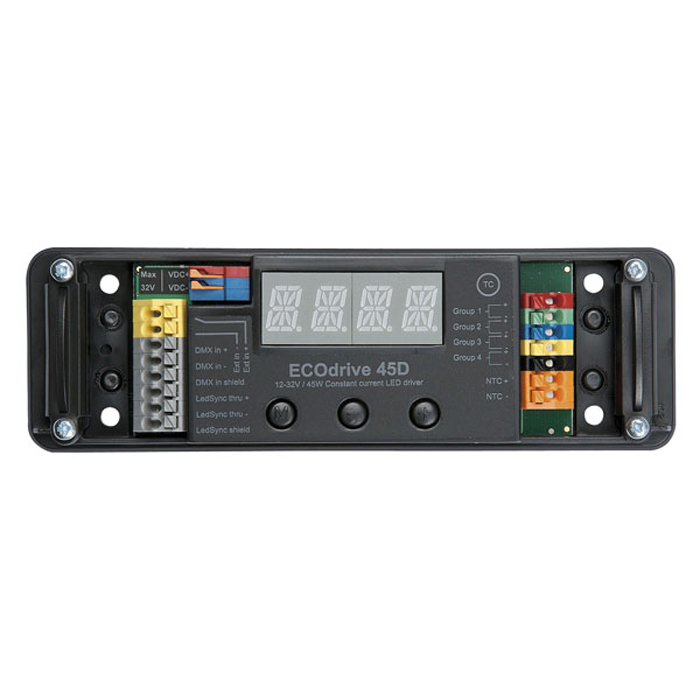

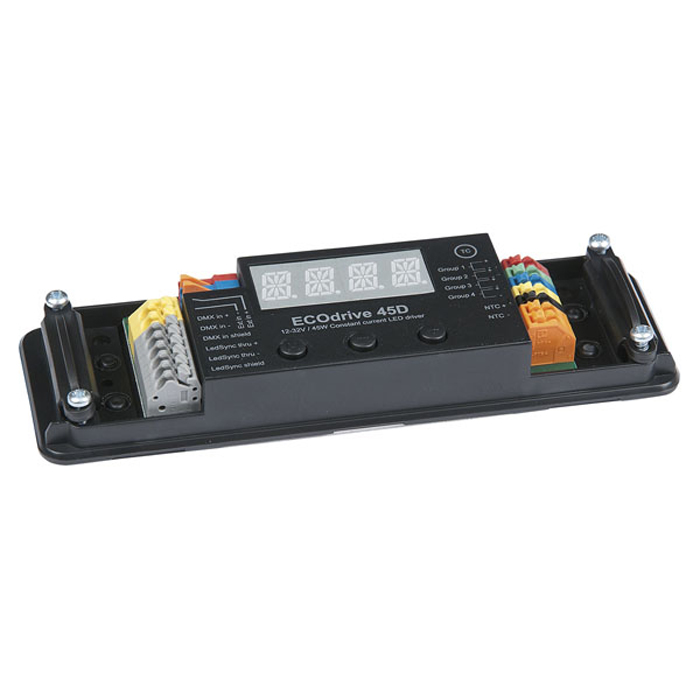

Constant Current RGB(W) LED Driver/Controller - ECO045D1

The ECOdrive DC - 45 W is a highly integrated, cost effective, enclosed and by display easy-to-configure

constant current driver/controller for indoor LED lighting applications. The ECOdrive can be integrated

in a network or used as a standalone device. With a wide supply voltage of (12 V-32 V DC), the

ECOdrive DC - 45 W is the ideal choise for powering 200 mA - 1400 mA HB LEDs

4-channel RGB(W) LED strip controller
Power output range: 0-45 W
12-32 VDC / 200-1400 mA
Easy configuration

Control Mode	DMX
DMX Channels	4
Protocols	DMX
Power Supply	12-32 V DC
Output voltage	12-32 V DC
Maximum Output Current (mA)	1400 mA
Maximum Output Current (A)	1.4 A
Power Connector In	Open End
Power Connector Out	Open End

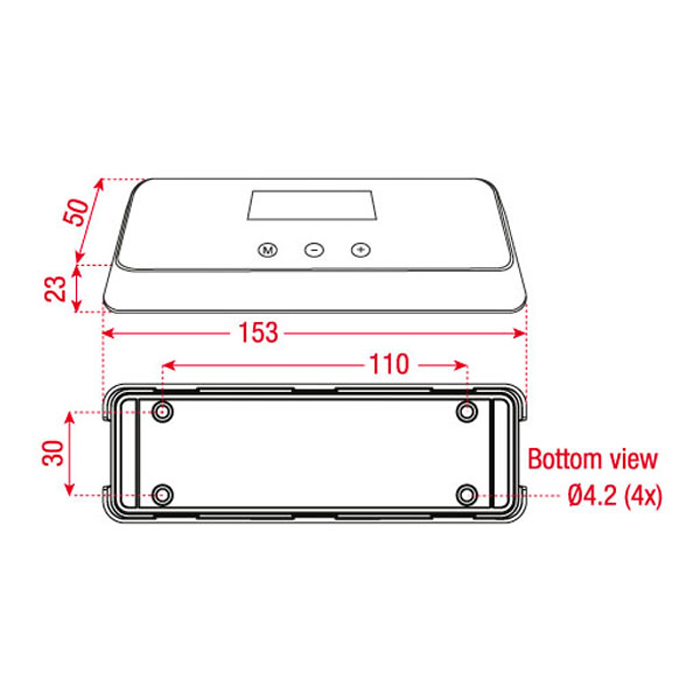

Length (mm)	153 mm
Height (mm)	23 mm
Width (mm)	50 mm
IP Rating	IP20 (indoor use only)
Housing	Plastic
Colour	Black
Maximum Ambient Temperature	50 °C
Minimum Ambient Temperature	-20 °C
