Catena LED Cayenne 70 10000K IP65 - Artecta A0866790

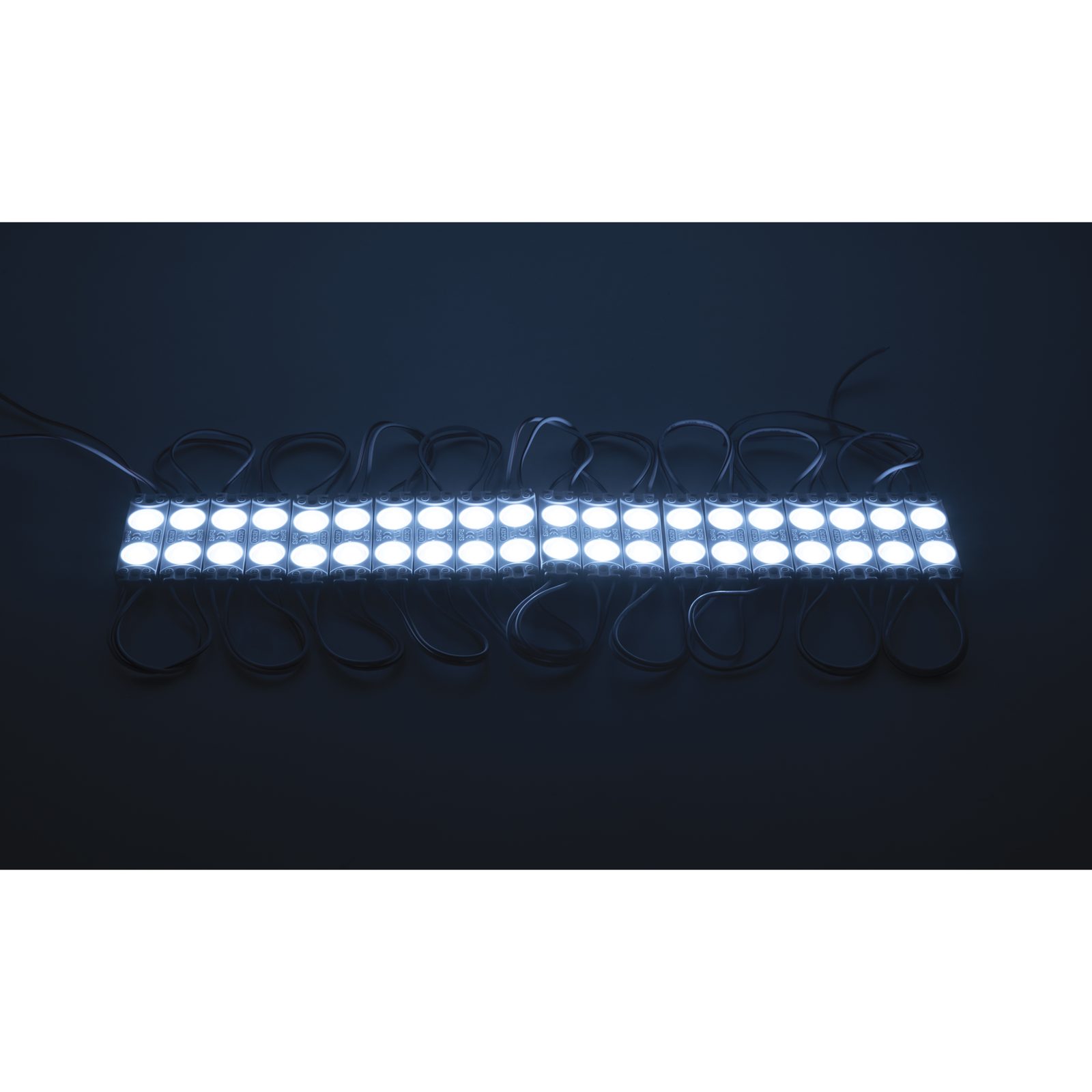

The Cayenne 70 is a chain of 20 LED modules designed for use in signage solutions, specifically for signs with a depth of 6 to 15 cm (2.36” to 5.9”). Each module is 50 mm wide and contains two LEDs. Each module handles up to 0.72 watts of power and produces up to 70 lumens. Twenty modules are combined into one string, which is powered by a 12 V DC / 14.4-W power supply. Multiple strings can be connected to a single power supply in parallel and a maximum of two strings (40 modules) can be connected in series.

For a 6 cm (2.36”) deep sign, the ideal distance between the modules is 8 x 6 cm (3.15” x 2.36”).

For an 8 cm (3.15”) deep sign, the ideal distance between the modules is 10 x 8 cm (3.94” x 3.15”).

For a 10 cm (3.94”) deep sign the ideal distance between the modules is 12 x 10 cm (4.72” x 3.94”).

For a 12 cm (4.75”) deep sign the ideal distance between the modules is 14 x 12 cm (5.5” x 4.72”).

For a 15 cm (5.5”) deep sign the ideal distance between the modules is 17 x 15 cm (6.7” x 5.5”).

• 14.4 W cool white (10,000 K) provides 1400 lumen in total
• Suitable for (outdoor) signage (rated IP65)
• Optimised for 6 to 15 cm (2.36” to 5.5”)
• Up to 40 modules can be connected in series
• Multiple strings can be powered in parallel
• Operates on 12-V power supply
