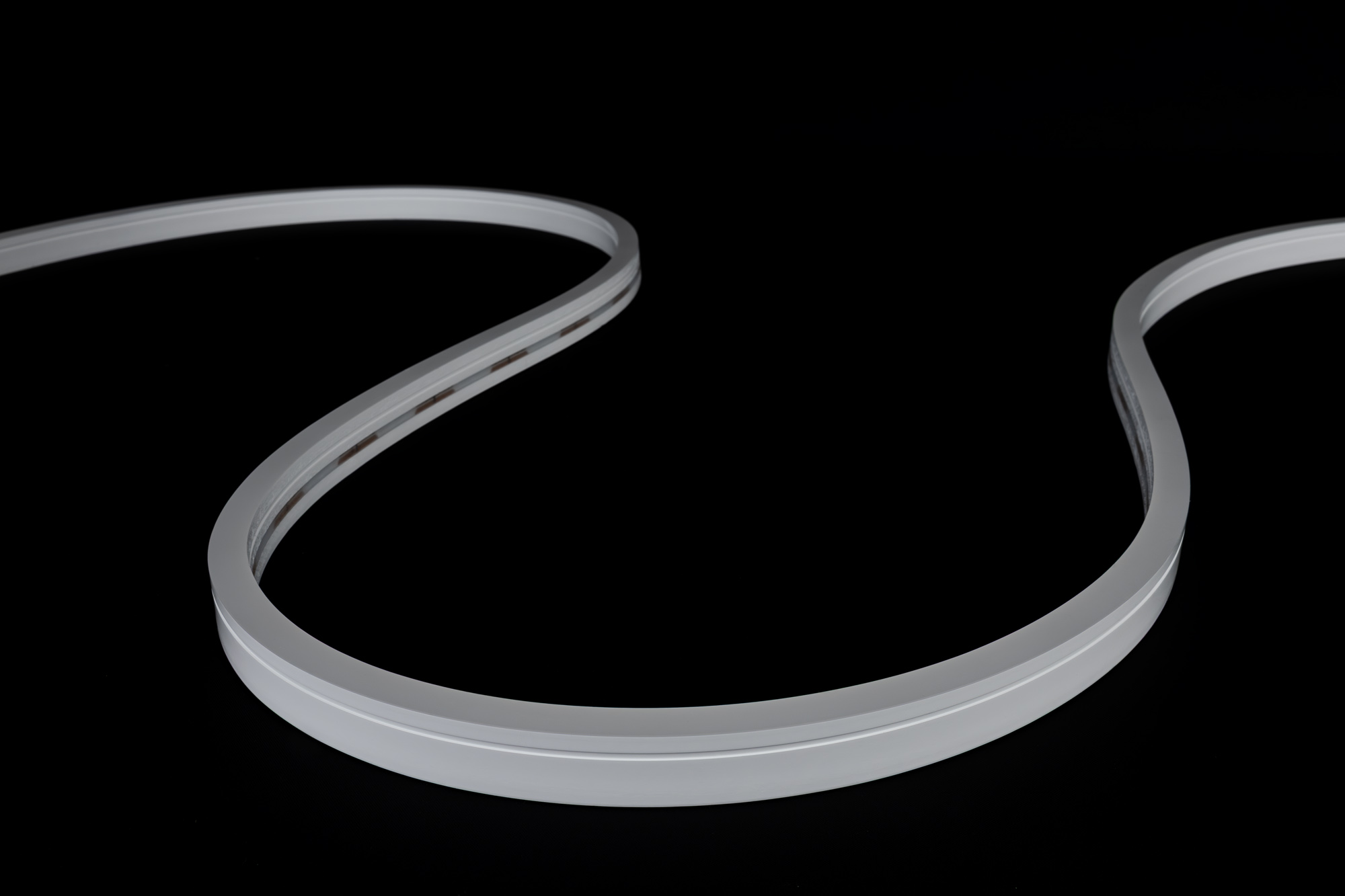

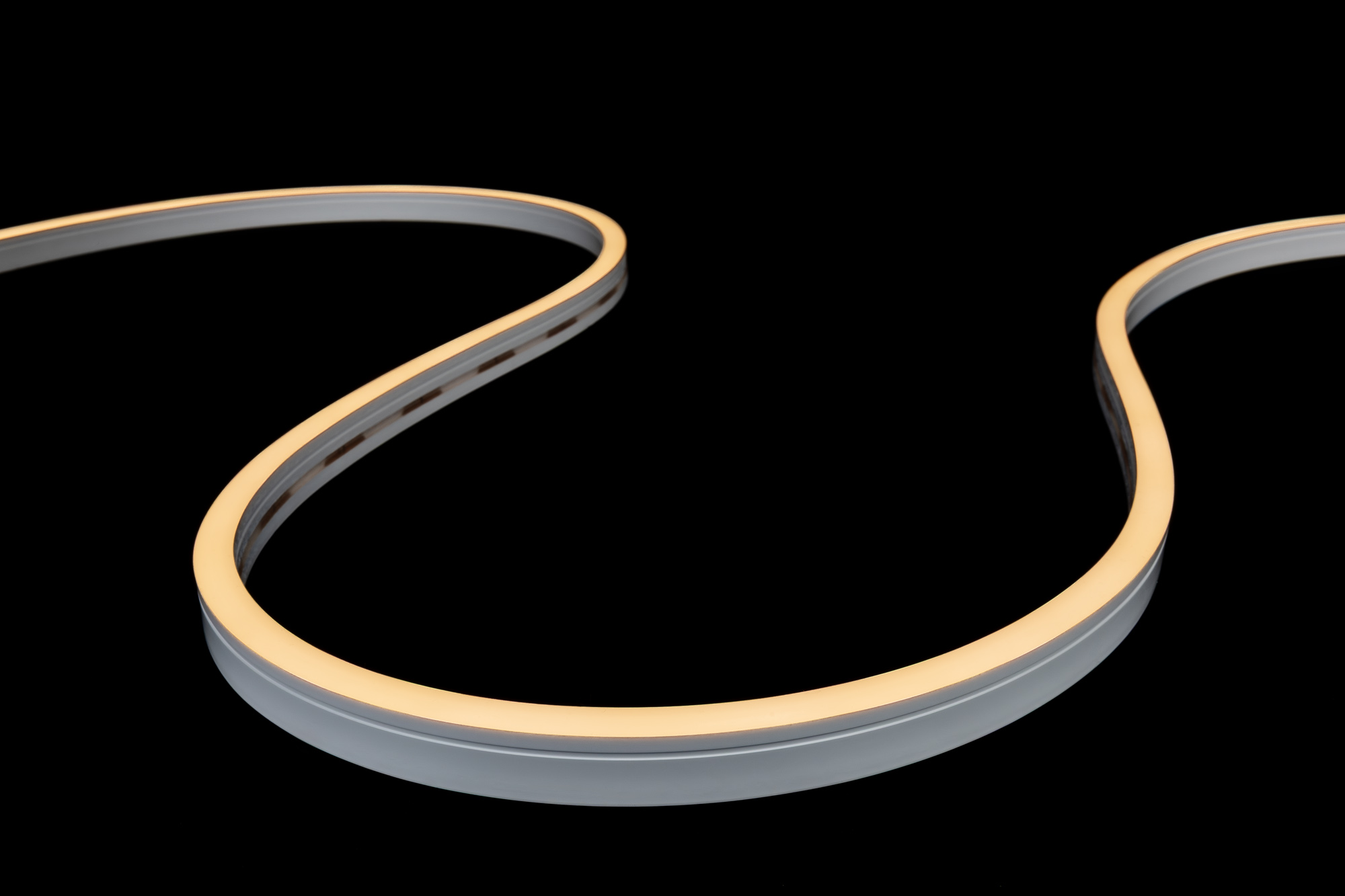

The Artecta Havana Neon 1018 is an LED strip that can perfectly simulate traditional neon lighting. With a width of no less than 10 mm and a height of 18 mm, it is very suitable for making larger logos or figures where wide lines are desired. Despite its width, it has high flexibility with a bending radius of 80 mm.
The neon effect is created by the diffuse silicone cap and 120 LEDs per metre. In addition, you will find a cutting spot every 5 cm, so that you can determine the correct length for your desired application.
It is easy to mount with the included clips, but can also be used in a profile. Thanks to its IP67 certification, you can install the LED strip both indoors and outdoors.
A wide range of accessories complete the installation of your Havana Neon 1018. Consider, for example, suitable mounting clips, input / inline connectors and end caps. An LED driver can be connected to control the output.
- 70 W Neon LED Strip
- Shapeable
- Cutable
- IP67 rating
- Easy installation with clips or profiles
- Available in warm to neutral white and RGB
| Light Source Type | LED |
|---|
| Light Source Quantity/m | 120 |
|---|
| Light Source Power | 1 W |
|---|
| LED Colour Type | W |
|---|
| Light Source System | SMD2835 |
|---|
| Luminous Flux (Total) | 450 lm |
|---|
| CRI | 90 |
|---|
| CCT | 2700 K |
|---|
| Beam Angle (Circular) | 120° |
|---|
| Dimmable | Yes |
|---|
| Power Supply | 24 V DC |
|---|
| Power Consumption | 70 W |
|---|
| Power/1 m | 14 W |
|---|
| Pins | 2 |
|---|
| Driver | Excluded |
|---|
| Length (m) | 5 m |
|---|
| Cutting Length | 50 mm |
|---|
| Height (mm) | 18 mm |
|---|
| Width (mm) | 10 mm |
|---|
| Weight | 1.27 kg |
|---|
| IP Rating | IP67 |
|---|
| PCB Colour | White |
|---|
| Bending Radius | 60 mm |
|---|
| Maximum Ambient Temperature | 60 °C |
|---|
| Minimum Ambient Temperature | -25 °C |
|---|

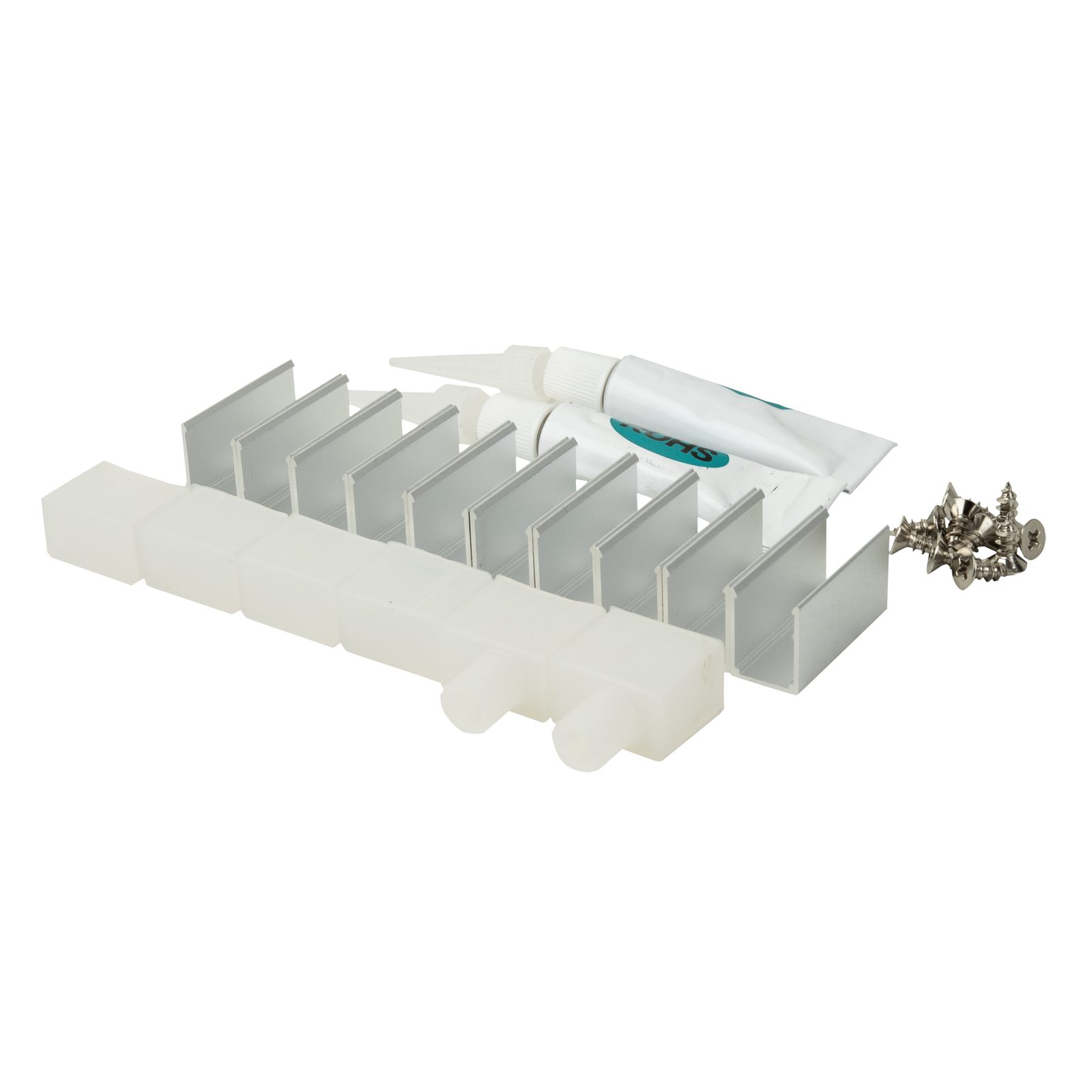

| Included Accessories | Bracket / Cable Glands / End Cap / Screws |
|---|
