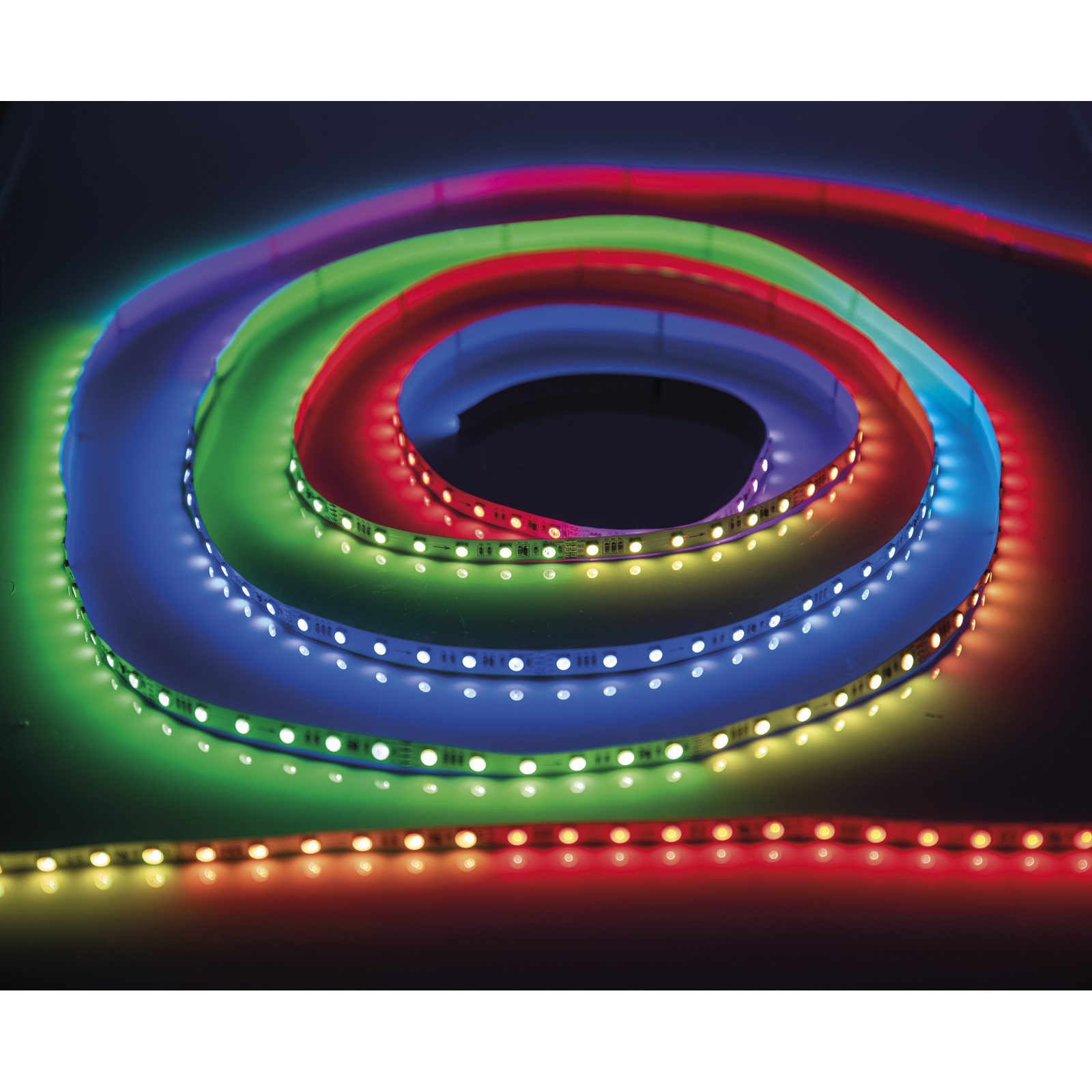

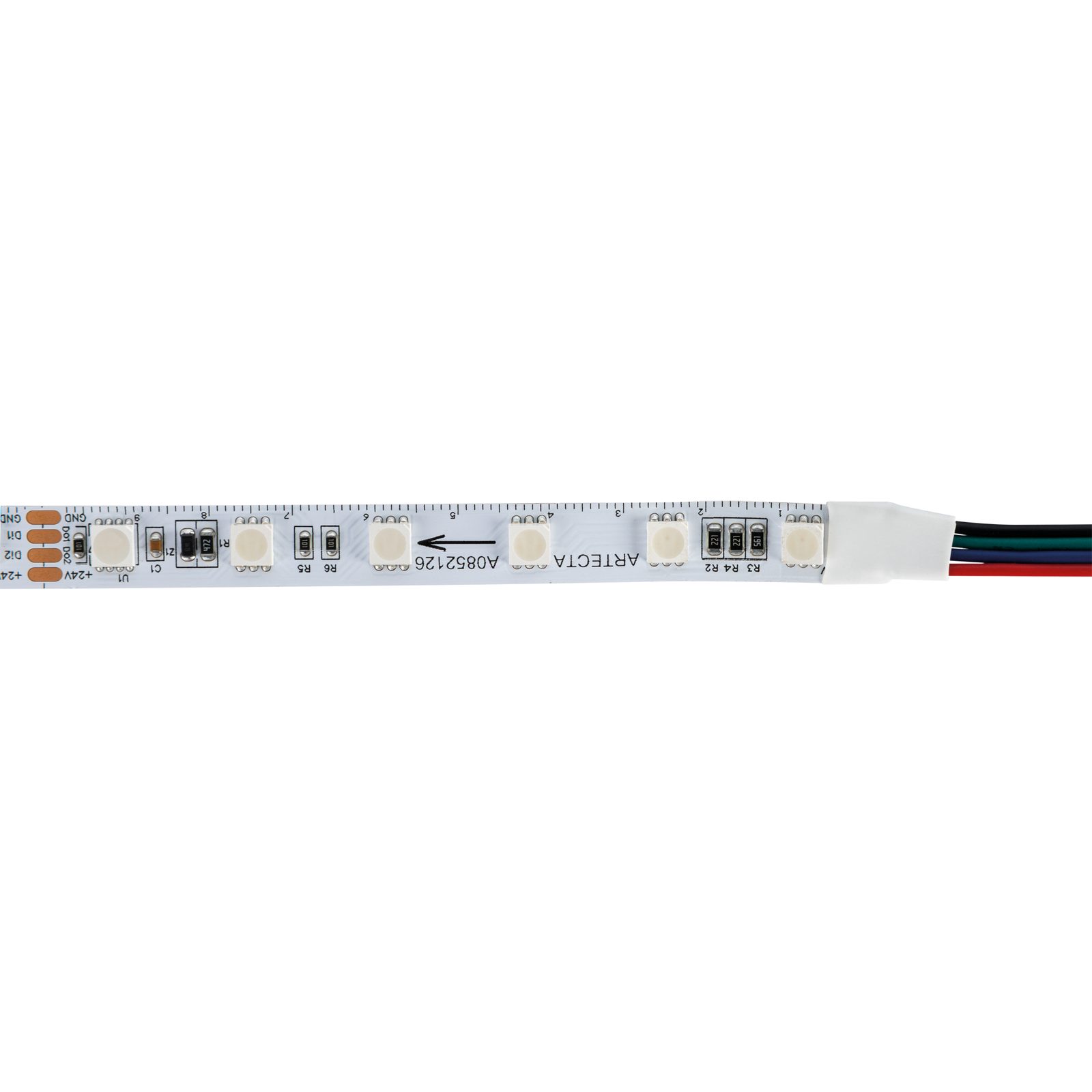

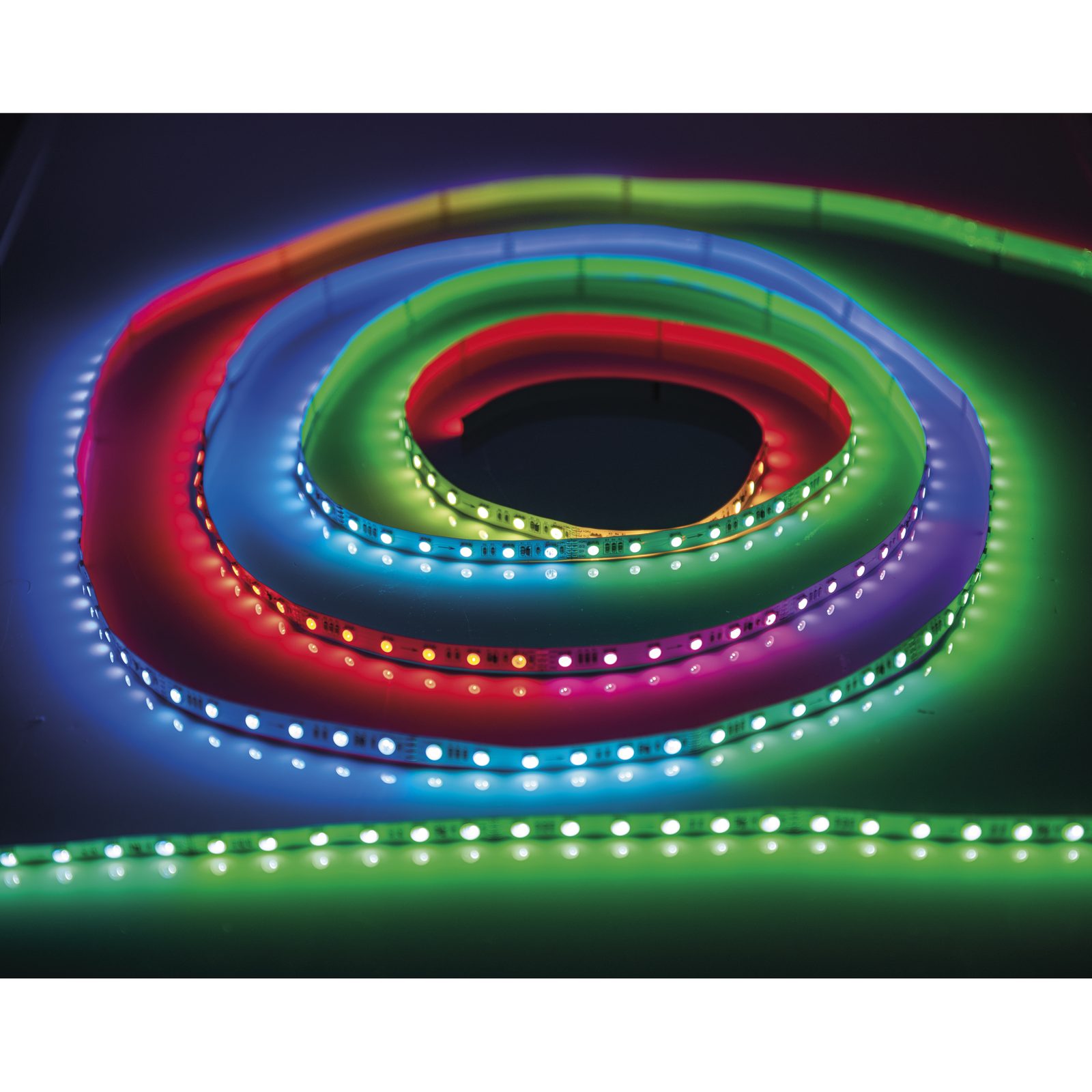

The Artecta Havana Pixel Strip is a 72-watt RGB LED strip with individual pixel control, suitable for indoor applications. Its 300 LEDs (60/m) are controllable per set of 6 LEDs, enabling you to create 50 individual controllable pixels that can be controlled in combination with a suitable pixel controller. Up to three Havana Pixel Strips are daisy-chainable and can run on one single 24 V power adapter. The strip can be attached to almost any smooth degreased surface due to its self-adhesive 3M backing. Also, the strip can be used perfectly in an aluminium profile with a cover for protection against dust and moisture.
Please note that mounting Havana Pixel Strips in aluminium profiles is highly recommended for sufficient heat dissipation when planning to increase its power intensity to over 80 %.
- 72 W RGB LED strip
- Individual Pixel Control
- 5 metre
- 300 LEDs and 50 pixels (6 LEDs per pixel)
- Self-adhesive 3 m backing
- Suitable for placing in any aluminium profile
| Light Source Type | LED |
|---|
| Light Source Quantity/m | 60 |
|---|
| Light Source Power | 72 W |
|---|
| Light Source System | WS2811 |
|---|
| LED Colour Type | RGB |
|---|
| Luminous Flux (Total) | 2150 lm |
|---|
| Lumen output/m | 430 lm |
|---|
| Luminous Flux (Red) | 110 lm |
|---|
| Luminous Flux (Green) | 260 lm |
|---|
| Luminous Flux (Blue) | 60 lm |
|---|
| CRI | 82 |
|---|
| CCT | 0 K |
|---|
| Beam Angle (Circular) | 120° |
|---|
| Protocols | SPI |
|---|
| Dimmable | Yes |
|---|
| Power Supply | 24 V DC |
|---|
| Power Consumption | 72 W |
|---|
| Power/1 m | 14.4 W |
|---|
| Driver | Excluded |
|---|
| Length (m) | 5 m |
|---|
| Maximum Length (m) | 17 m |
|---|
| Cutting Length | 100 mm |
|---|
| Height (mm) | 2.1 mm |
|---|
| Width (mm) | 10 mm |
|---|
| Weight | 0.176 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| PCB Colour | White |
|---|
| Maximum Ambient Temperature | 50 °C |
|---|
| Minimum Ambient Temperature | -20 °C |
|---|
