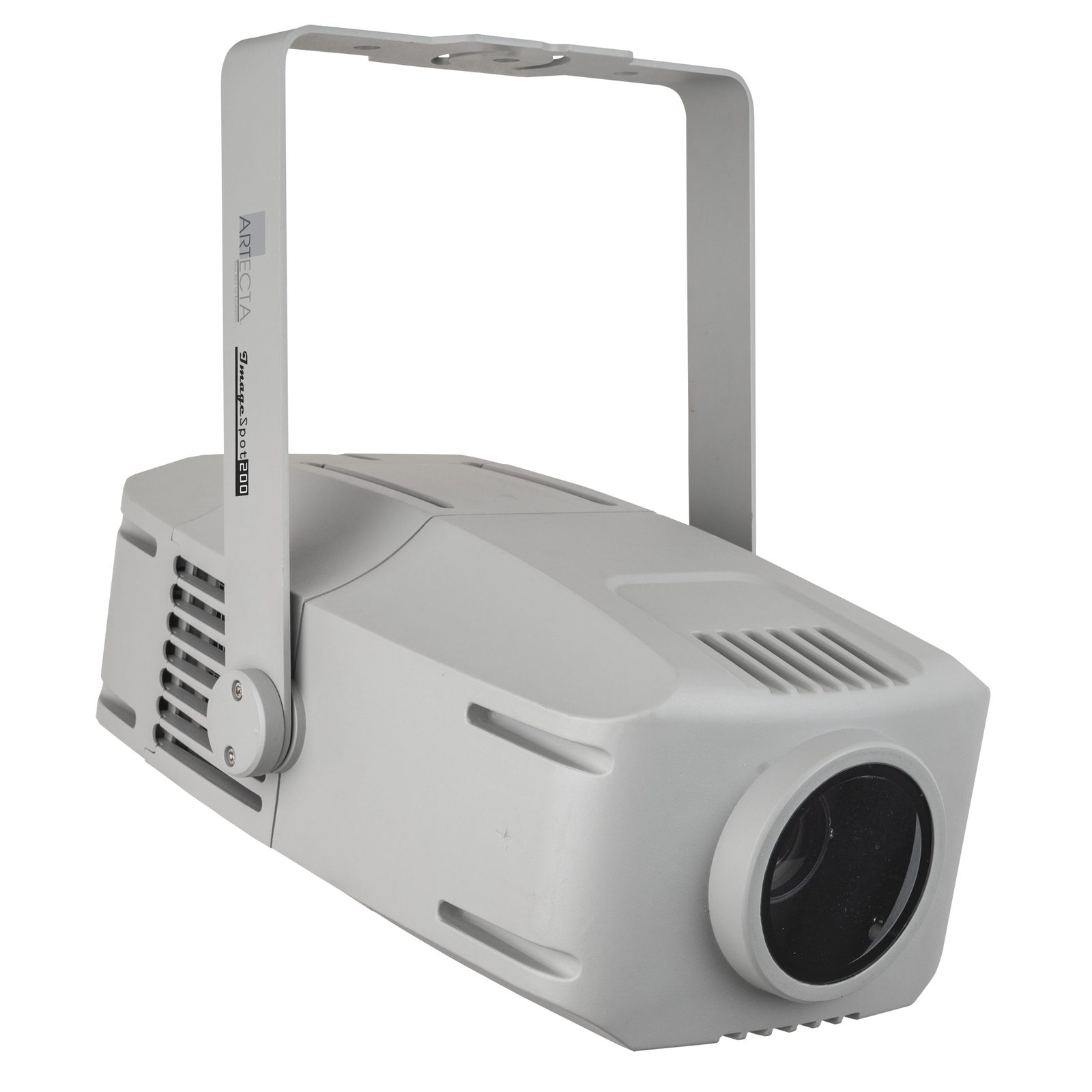

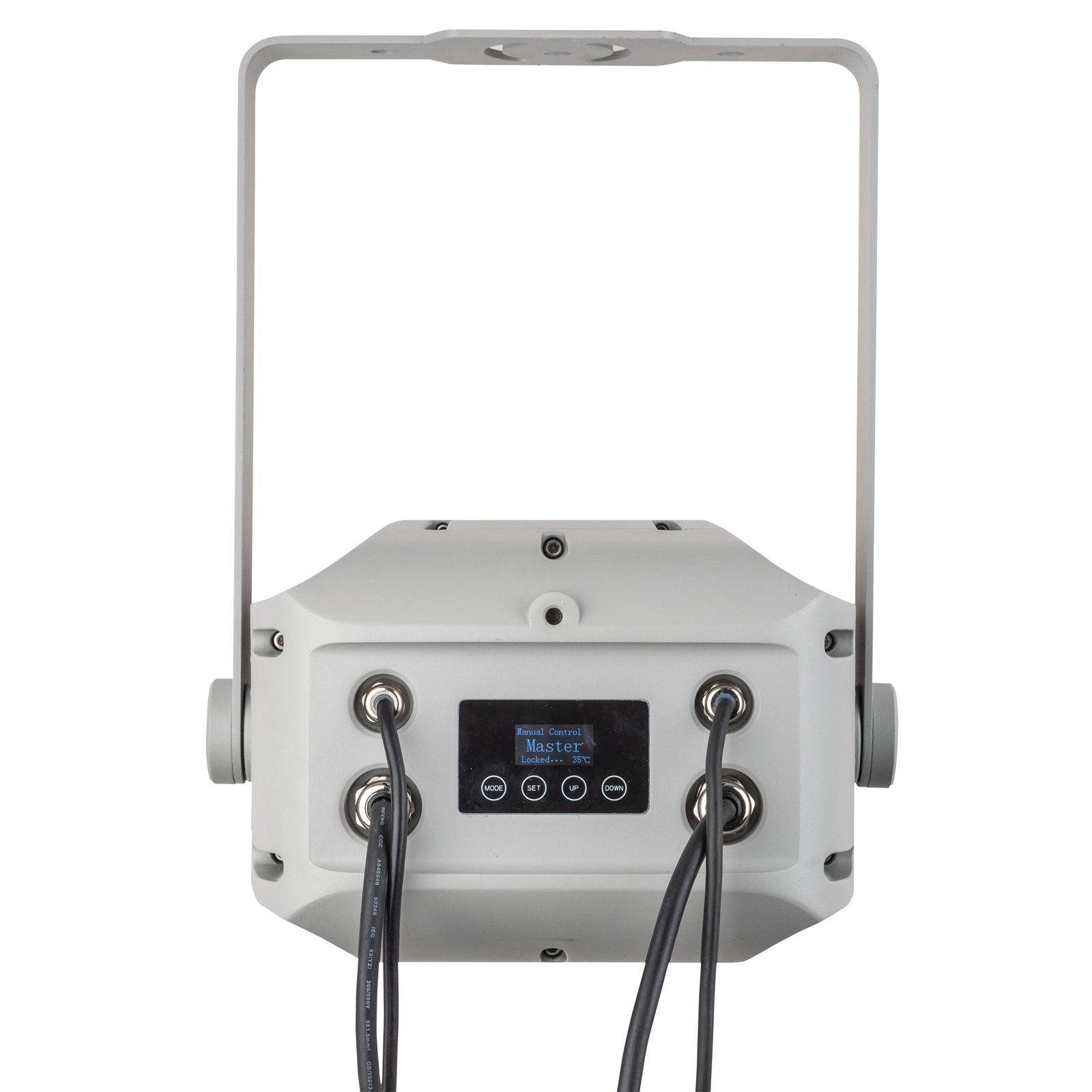

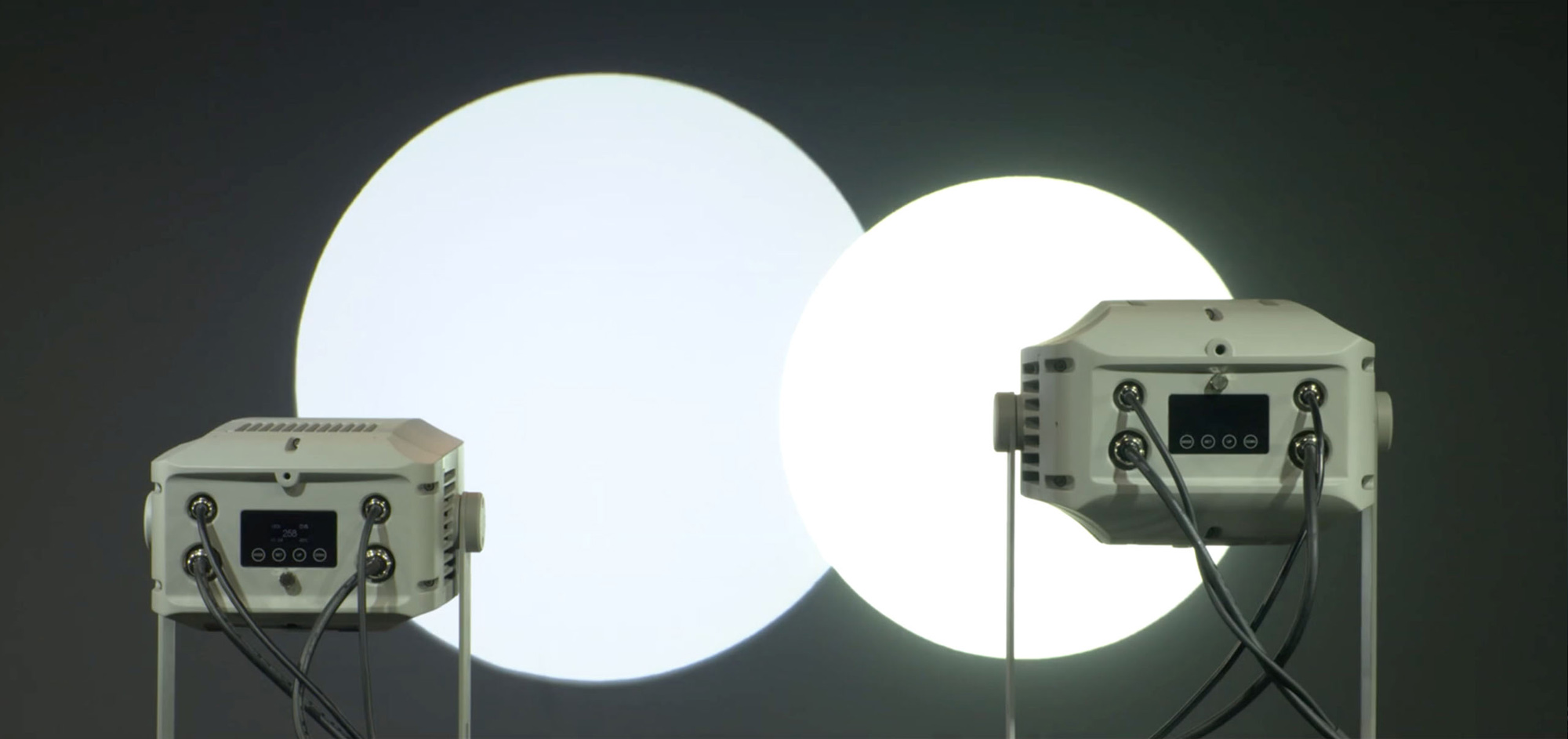

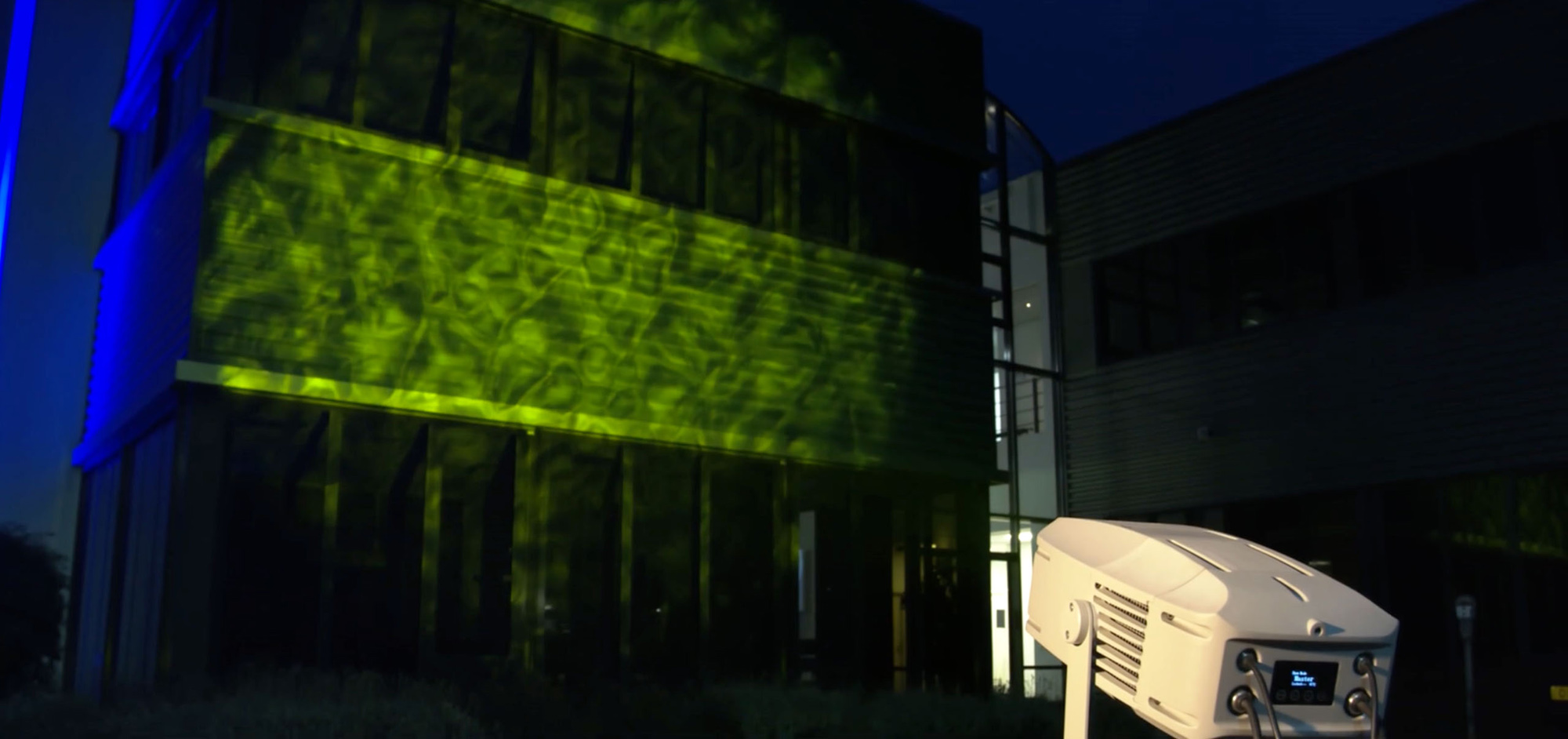

The Artecta Image Spot 200 is a 200 watt gobo projector spot with IP65 rating and high >80 CRI, suitable for outdoor applications. Its 7 replaceable gobos + open can be projected in 7 dichroic colours + white and can be indexed, meaning the gobo's rotational position can be recalled. A 3-facet rotational prism enables you to create dynamic effects. In addition, a ripple effect can be engaged to imitate waving flag patterns and create an additional dimension to the projection. The Image Spot 200 is equipped with an adjustable 10° - 30° zoom function including beam focus for scaling the projector size just right. All parameters can be adjusted manually and via DMX. Seven scenes can be programmed and stored for stand-alone use.
- 200 W/6600 lumen gobo projector spot
- IP65 rated, suitable for outdoor applications
- 7 replaceable gobos + open & 7 colours + white
- 3-facet rotational prism
- Adjustable zoom & focus
- Ripple effect
- Manual & DMX controllable
| Light Source Type | LED |
|---|
| Light Source Quantity | 1 |
|---|
| Light Source Power | 200 W |
|---|
| LED Colour Type | CW |
|---|
| Luminous Flux (Total) | 6600 lm |
|---|
| CRI | 80 |
|---|
| DMX Channels | 13 |
|---|
| Protocols | DMX / RDM |
|---|
| Dimmable | Yes |
|---|
| Gobo Size | 28.6 mm |
|---|
| Image Diameter | 20 mm |
|---|
| Power Supply | 100-240 V AC 50/60 Hz |
|---|
| Power Consumption | 220 W |
|---|
| Power Connector In | Dedicated IP65 Powerconnection |
|---|
| Power Connector Out | Dedicated IP65 Powerconnection |
|---|
| DMX Connector In | Dedicated 3P IP65 |
|---|
| DMX Connector Out | Dedicated 3P IP65 |
|---|
| Cable Length | 0.25 m |
|---|
| Cable Type | H05RN-F |
|---|
| Driver | Built-in |
|---|
| Protection Class | I |
|---|
| Length (mm) | 477 mm |
|---|
| Height (mm) | 418 mm |
|---|
| Depth (mm) | 200 mm |
|---|
| Width (mm) | 318 mm |
|---|
| Weight | 17.5 kg |
|---|
| IP Rating | IP65 |
|---|
| Material | Aluminium |
|---|
| Housing | Aluminium die-cast |
|---|
| Finish | Powder Coating |
|---|
| Colour | Light Grey |
|---|
| Mounting Options | Bracket |
|---|
| Maximum Ambient Temperature | 45 °C |
|---|
| Minimum Ambient Temperature | -20 °C |
|---|
| Included Cables | Dedicated IP65 Dataconnection / Dedicated IP65 Powerconnection |
|---|
