DMX Rack Split 8x 5-pin XLR to 2x RJ45 1U 19" - Showgear 96031
DMX Rack Split 8x 5-pin XLR to 2x RJ45 1U 19" - Showgear 96031
DMX Rack Split 8x 5-pin XLR to 2x RJ45 1U 19" - Showgear 96031

DMX Rack Split 8x 5-pin XLR to 2x RJ45 1U 19" - Showgear 96031

SHOWGEAR
79,80 €
Tasse incluse

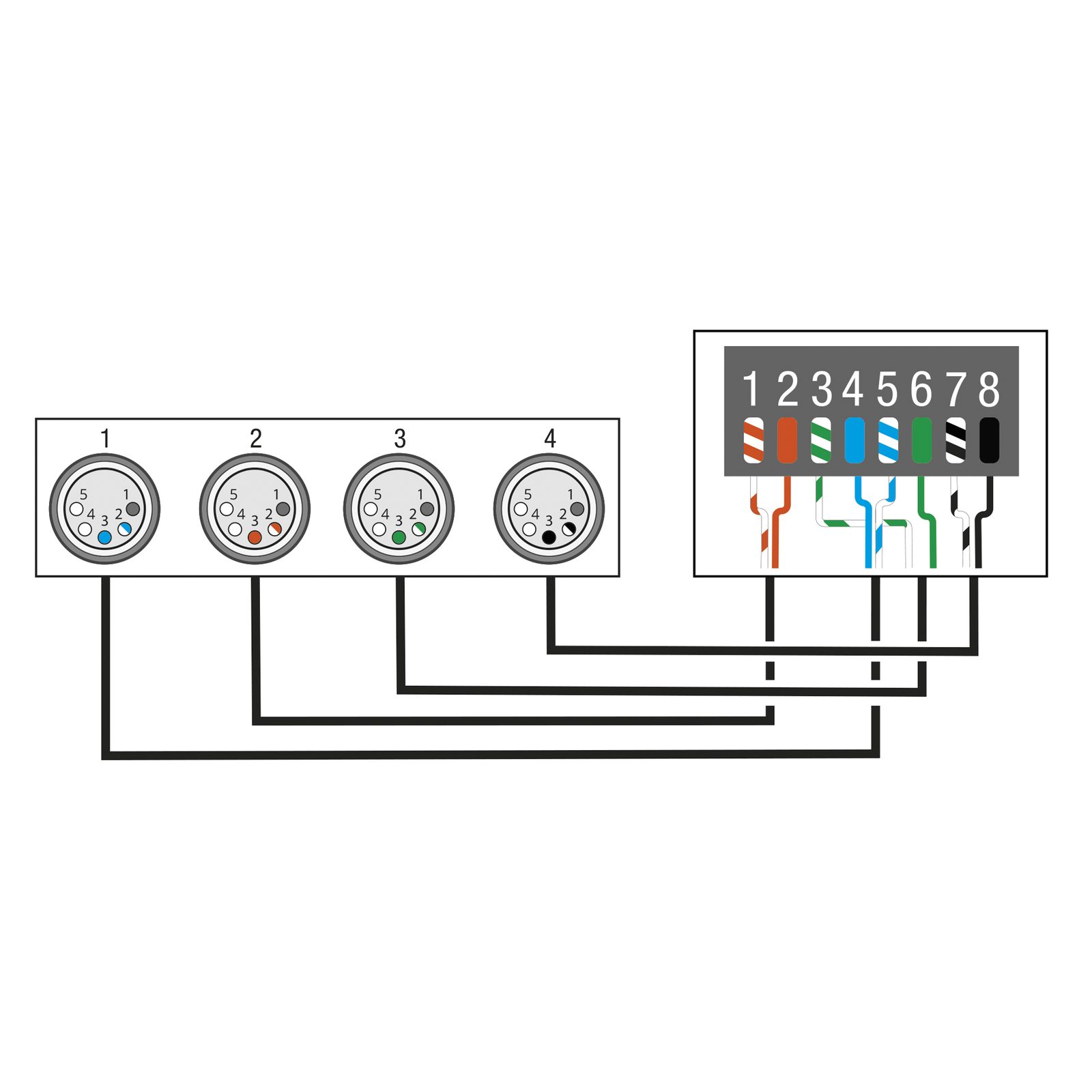

8x 5-pin female XLR to 2x female RJ45 converter (4 universes per CAT cable)
Condividi

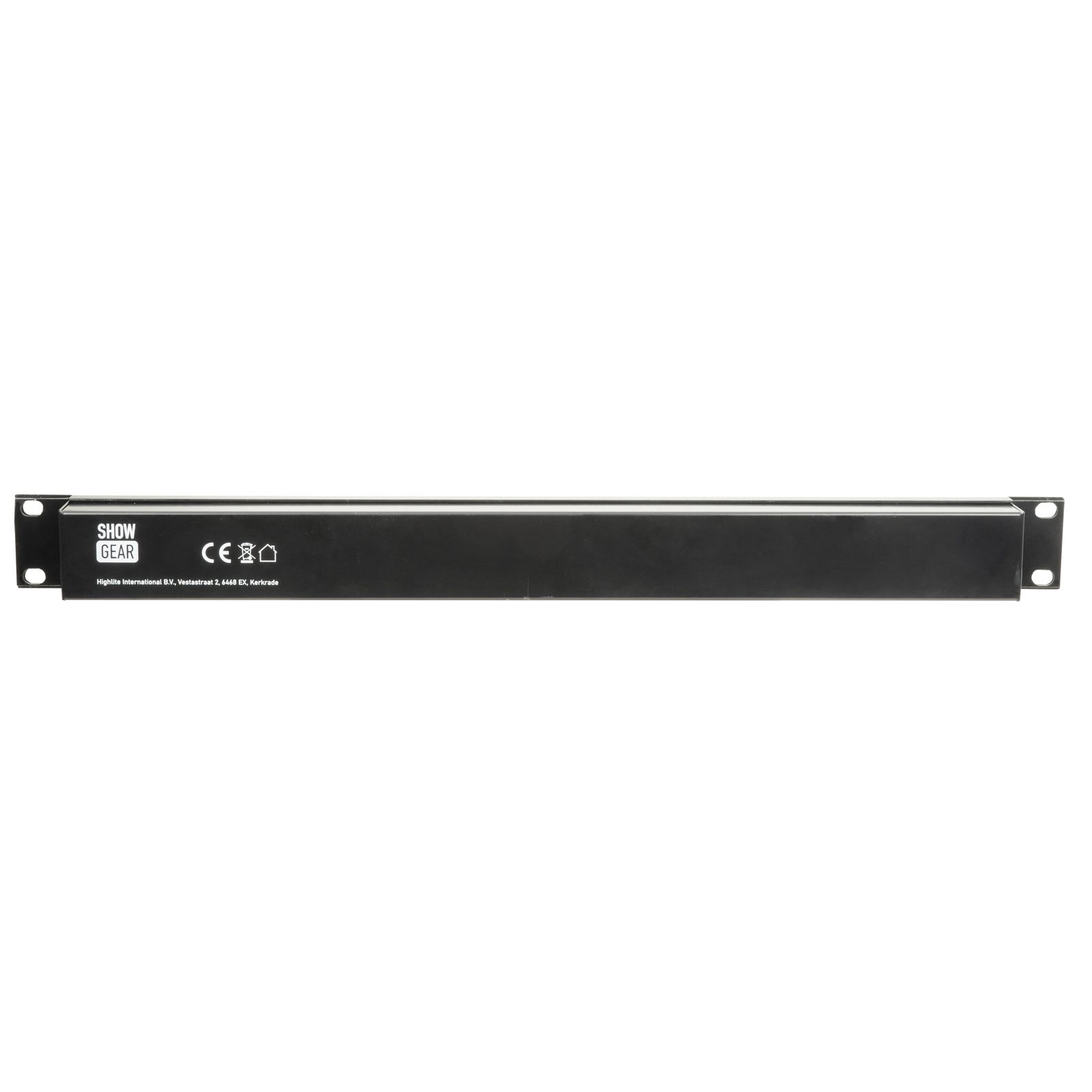

The Showgear DS-24F/5 is a 19" rack version for converting 8 universes to 2 CAT cables. Each CAT connector is linked to four female 5-pin XLR connectors. This will help you to have fewer cables and to reach longer distances while minimizing signal latency.

The DS-24F/5 is suitable for any 19" rack or case and is built to last and outperform due to a strong metal housing and high quality components. We recommend to use a shielded CAT cable for optimum results.

  • Split Box
  • Suitable for converting 8 universes to two CAT cables
  • Female 5-pin XLR and female RJ45 connectors
  • 19"/1U rack size
  • Strong reliable metal housing
Impedance110 Ω
DMX Connector InXLR 5P
Data Connector OutRJ45
Pins5
Length (mm)483 mm
Height (mm)45 mm
Width (mm)36 mm
Weight0.9 kg
IP RatingIP20 (indoor use only)
HousingMetal
ColourBlack
Locking DeviceLatch
Contact TypeNickel plated
Conductors3
Maximum Ambient Temperature40 °C
Minimum Ambient Temperature-20 °C

  • Marca
  • Riferimento
    96031
  • In magazzino
    10 Articoli
  • ean13
    8717748523747
