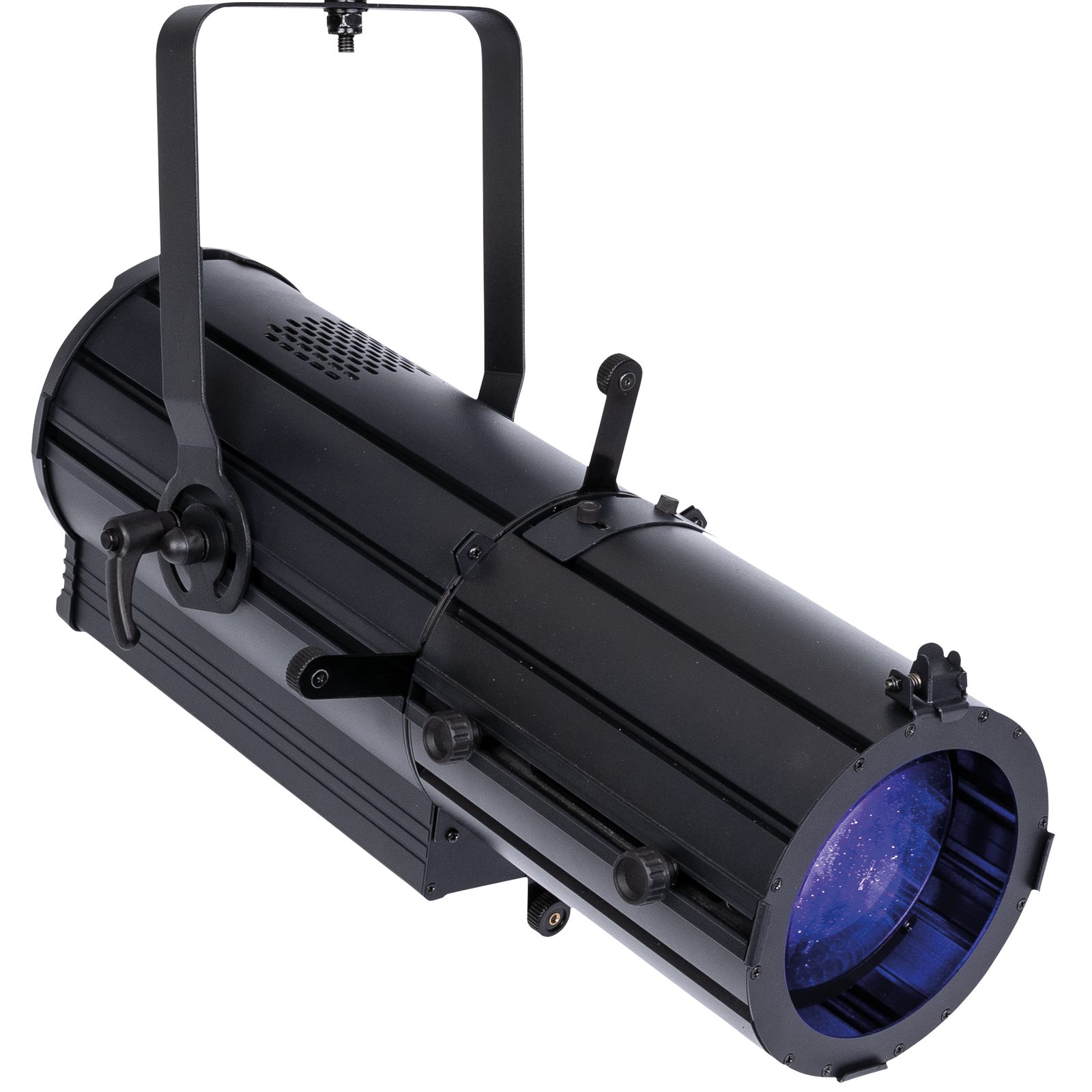

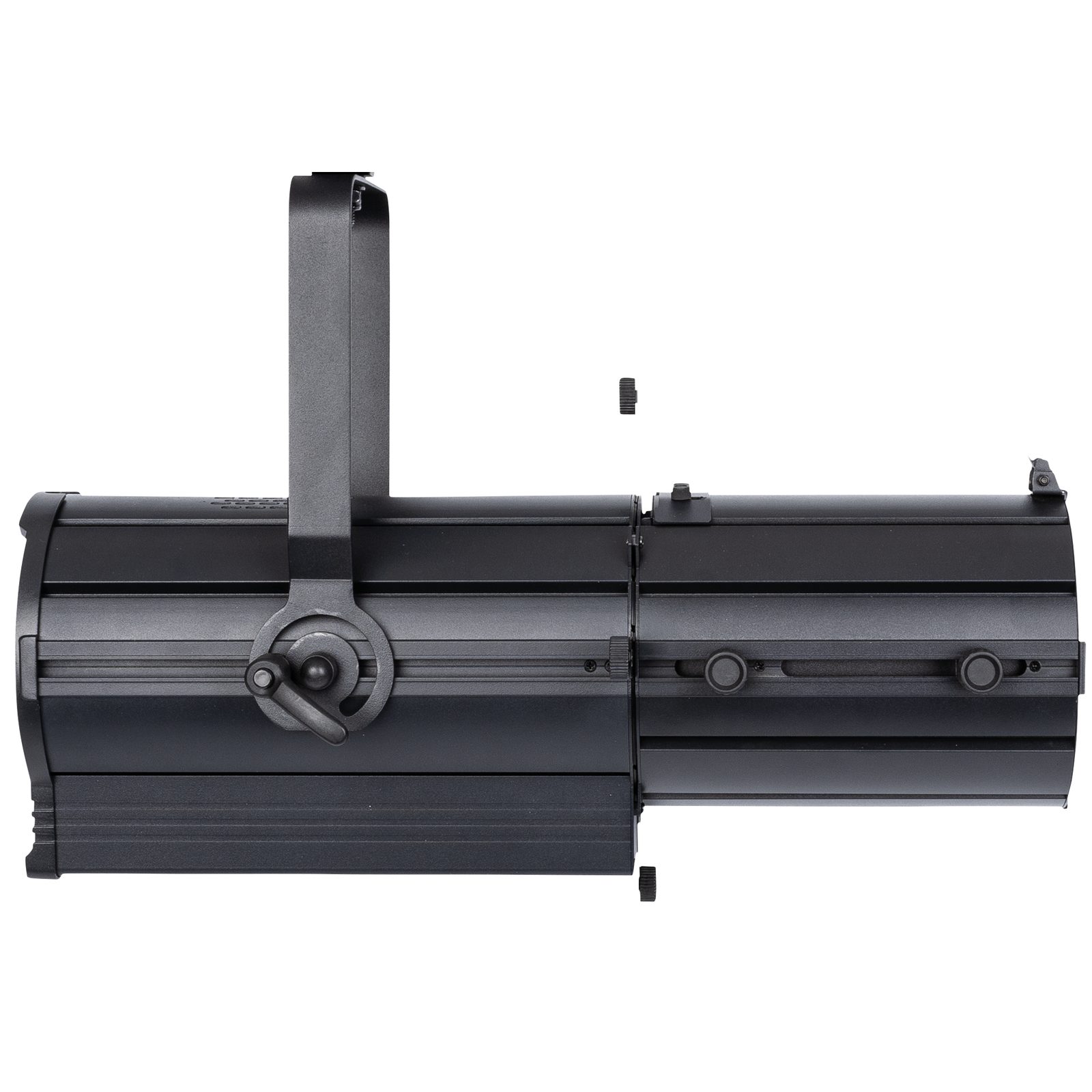

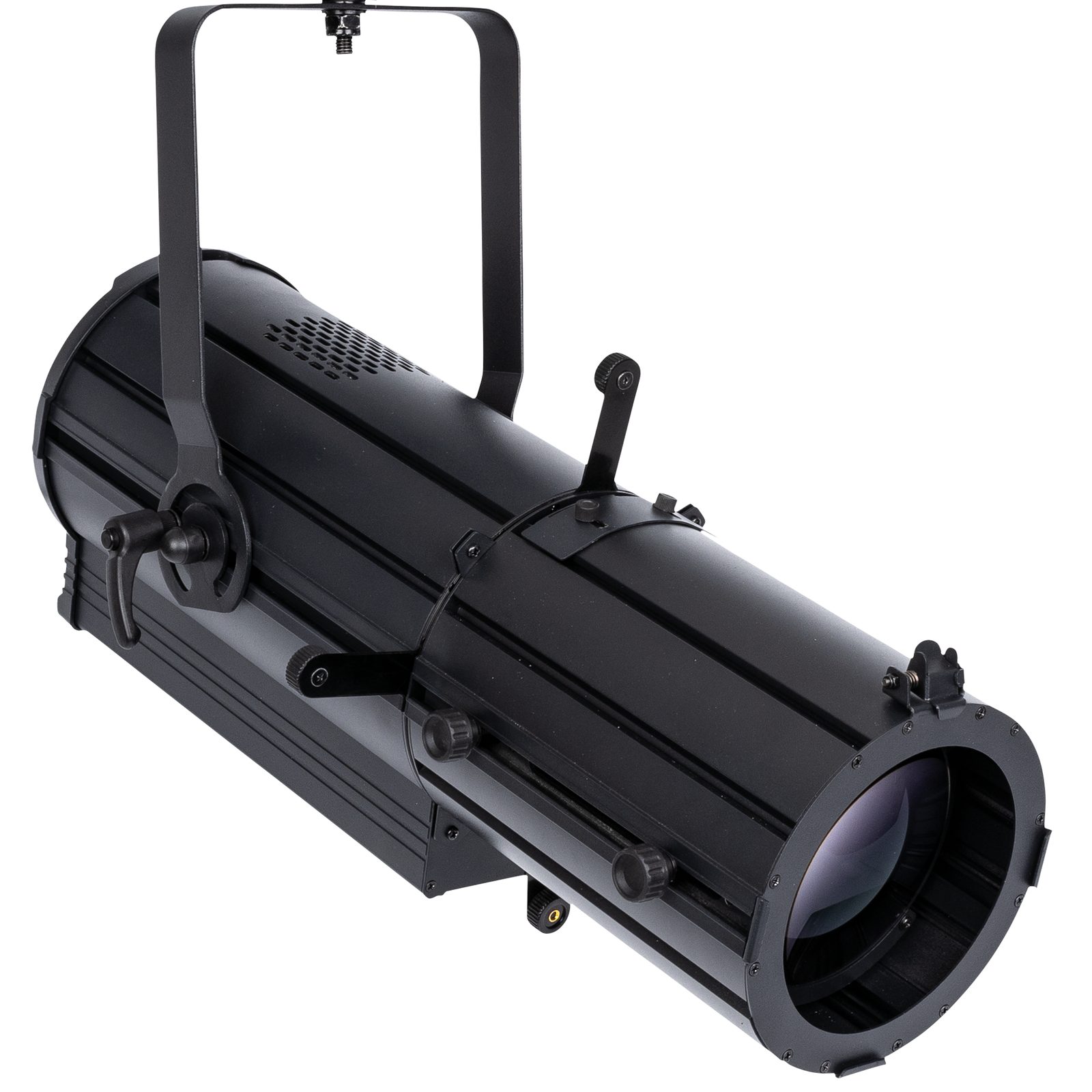

The Showtec ACT Profile 150 RGBAL is a compact 150-watt RGBAL LED profile with high CRI and silent operation, suitable for theatrical applications, schools, museums, and exhibitions. It projects a bright, hard-edged beam of light within a 23° - 46° manually adjustable zoom range. The ACT Profile 150 RGBAL can be controlled via DMX, RDM, and it is equipped with one knob for manual colour and dimmer control. It comes with 5 design gobos and a four-blade shutter system, allowing you to add the proper intensity of light where it's needed.
- 150 W RGBAL LED with high CRI for accurate colour rendering
- Suitable for theatrical applications, museums, and exhibitions
- Manually adjustable zoom, and shutters
- Hard-edged field of light
- Filter frame included
| Light Source Type | LED |
|---|
| Light Source Quantity | 1 |
|---|
| Light Source Power | 150 W |
|---|
| LED Colour Type | RGBAL |
|---|
| Refresh Rate (Max.) | 1 kHz |
|---|
| Illuminance @ 3 m | 3260 lx |
|---|
| Luminous Flux (Total) | 3571 lm |
|---|
| CRI | 91 |
|---|
| Minimum CCT | 2700 K |
|---|
| Maximum CCT | 10000 K |
|---|
| Beam Angle Minimum (Circular) | 23° |
|---|
| Beam Angle Maximum (Circular) | 46° |
|---|
| Zoom Type | Manual |
|---|
| Zoom Ratio | 1:2 |
|---|
| Zoom Minimum | 23° |
|---|
| Zoom Maximum | 46° |
|---|
| Control Mode | DMX / Manual / RDM |
|---|
| DMX Channels | 5 / 8 / 12 |
|---|
| Protocols | DMX / RDM |
|---|
| Display | OLED |
|---|
| Display Size | 1.3" |
|---|
| Dimmer Resolution | 16 bit |
|---|
| Dimmer | 0-100 % |
|---|
| Power Supply | 100-240 V AC 50/60 Hz |
|---|
| Power Consumption | 180 W |
|---|
| Fuse | 3.15 A |
|---|
| Power Connector In | Power Pro Blue |
|---|
| Power Connector Out | Power Pro Grey |
|---|
| DMX Connector | XLR 3P In/Out |
|---|
| DMX Connector In | XLR 3P |
|---|
| DMX Connector Out | XLR 3P |
|---|
| Length (mm) | 531 mm |
|---|
| Width (mm) | 226 mm |
|---|
| Height (mm) | 373 mm |
|---|
| Weight | 6.15 kg |
|---|
| IP Rating | IP20 (indoor use only) |
|---|
| Housing | Aluminium / Metal |
|---|
| Colour | Black |
|---|
| Cooling | Forced Convection |
|---|
| Mounting Options | Bracket |
|---|
| Safety Attachment | Yes |
|---|
| Safety Eyes | 1 |
|---|
| Maximum Ambient Temperature | 40 °C |
|---|
| Minimum Operating Temperature | 0 °C |
|---|
| Included Cables | Power Pro Cable |
|---|
