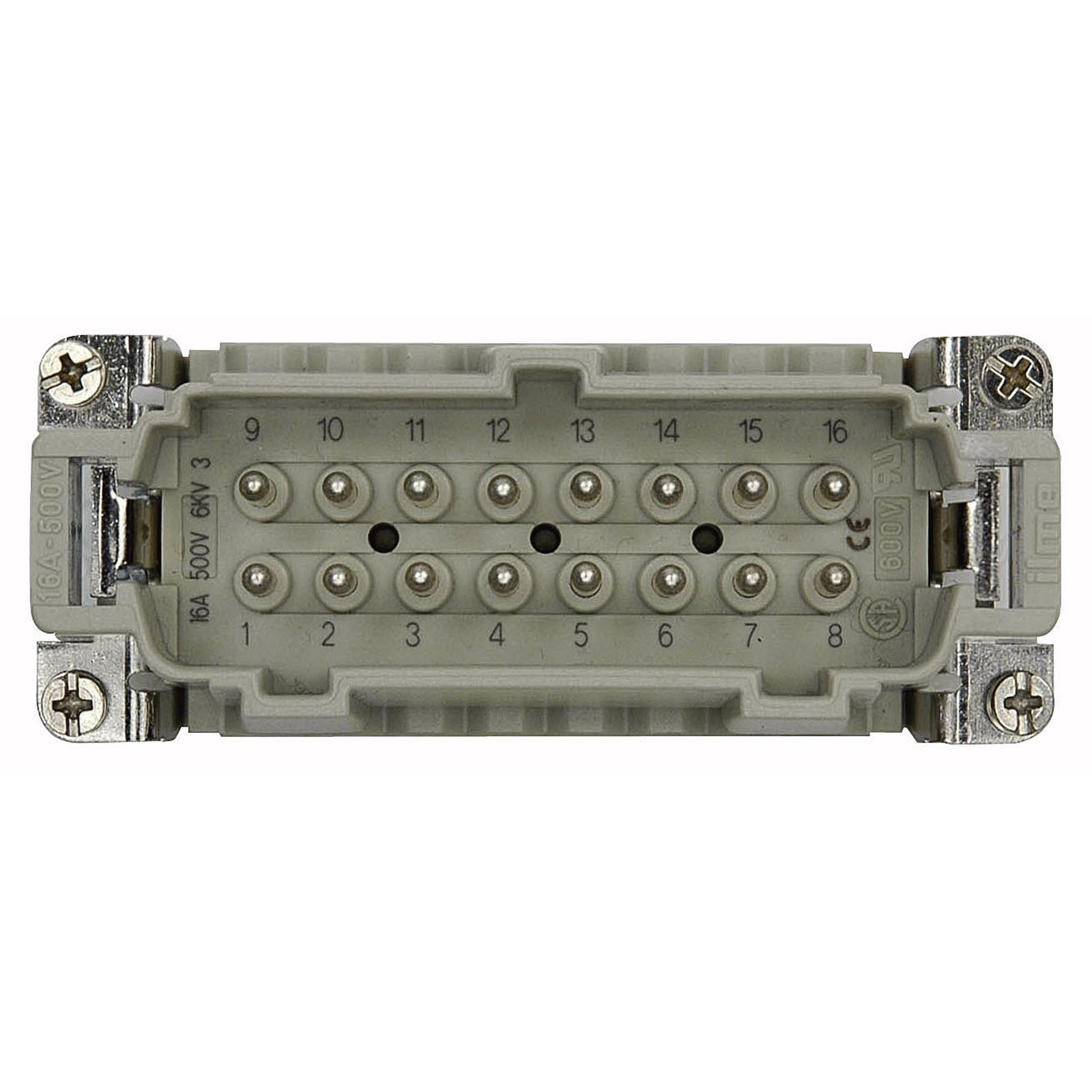

Insert maschio 16 pin 16A terminale a vite grigio - ILME 90717

Name: Insert maschio 16 pin 16A terminale a vite grigio - ILME 90717
Brand: ILME
SKU: 90717
Price: 15.05 EUR
Availability: InStock

ILME

15,05 €

Tasse incluse

Rated Current (A)	16 A
Pins	16
Wire Cross-Section	4
Minimum Wire Size	0.5 mm²
Maximum Wire Size	4 mm²
Minimum Wire Size AWG	20 AWG
Maximum Wire Size AWG	12 AWG
Length (mm)	84 mm
Height (mm)	33 mm
Width (mm)	34 mm
Weight	0.099 kg
IP Rating	IP20 (indoor use only)
Colour	Gray
PE Terminal Stripping Length	7 mm
PE Wire Cross Section	4 mm²
Tightening Torque for PE Connection	1.2 nm
Characteristics According to EN 61984	690 V 6 kV 2
Insulation Resistance	10 GΩ
Rated Voltage According to UL/CSA	600 V
UL 94 Flammability Rating	V-0
Conductor Stripping Length	7 mm
Torque for Main Contact	0.5 nm
Tightening Torque for Fixing Screws	0.5 nm
Pin Connection	Screw Terminal
Supplier Type Number	JNEM 16
Locking Device	Screw
Contact Type	Tin
Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	125 °C
